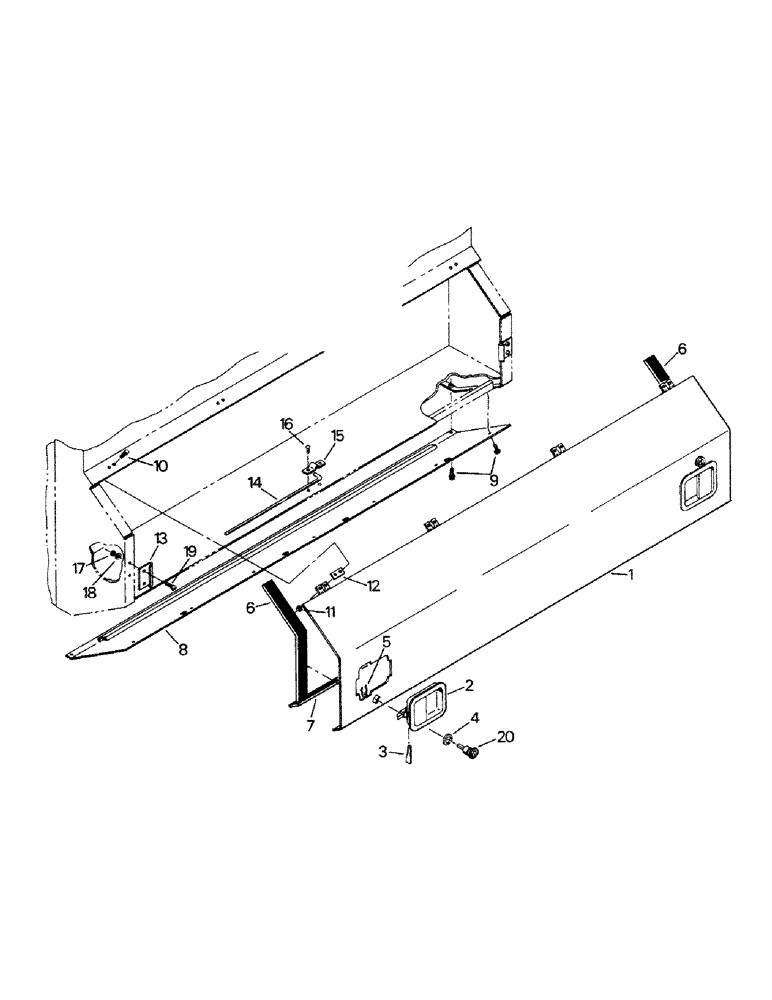

Запчасти Case IH STEIGER (01-06) - BATTERY BOX AND MOUNTING (10) - CAB

60-2961T91

DOOR

BATTERY BOX DOOR ASSY, consists of Ref. 1 - 7

1шт.

1

60-2964T1

DOOR

BATTERY BOX DOOR

1шт.

2

60-2262T91

LATCH

(incl 60-2533T1 spring bracket & 60-2532T1 gasket)

2шт.

3

60-2266T1

KEY

MOUNTING KEY

4шт.

4

1-4074

RUBBER WASHER

RUBBER WASHER

2шт.

5

1-4788

CLIP

MOUNTING CLIP

2шт.

6

60-2962T1

SEAL

SEAL

2шт.

7

60-2963T1

SEAL

SEAL

1шт.

8

60-2958T1

PLATE

FILLER PLATE

1шт.

9

9421943

SCREW,Hex Washer, #10 - 24 x 1/2"

MACHINE SCREW

9шт.

10

363-30812

SCREW,Hex Wash Hd, #8-32 x 3/4"

MACHINE SCREW

8шт.

11

19-5621

LOCK NUT,#8-32, GB

8шт.

12

60-2971T1

SPACER

4шт.

13

60-2972T1

STRIKER

2шт.

14

60-2977T1

ROD

1шт.

15

60-2978T1

CLIP

1шт.

16

19-127

RIVET

POP RIVET

2шт.

17

19-567

NUT,#10-24

4шт.

18

19-195

WASHER,#10

4шт.

19

155962

MACHINE SCREW

4шт.

20

NSS

NOT SOLD SEPARAT

LOCKSET, included with steering column lockset P/N 60-1020T1, see Figure 01-19

2шт.
