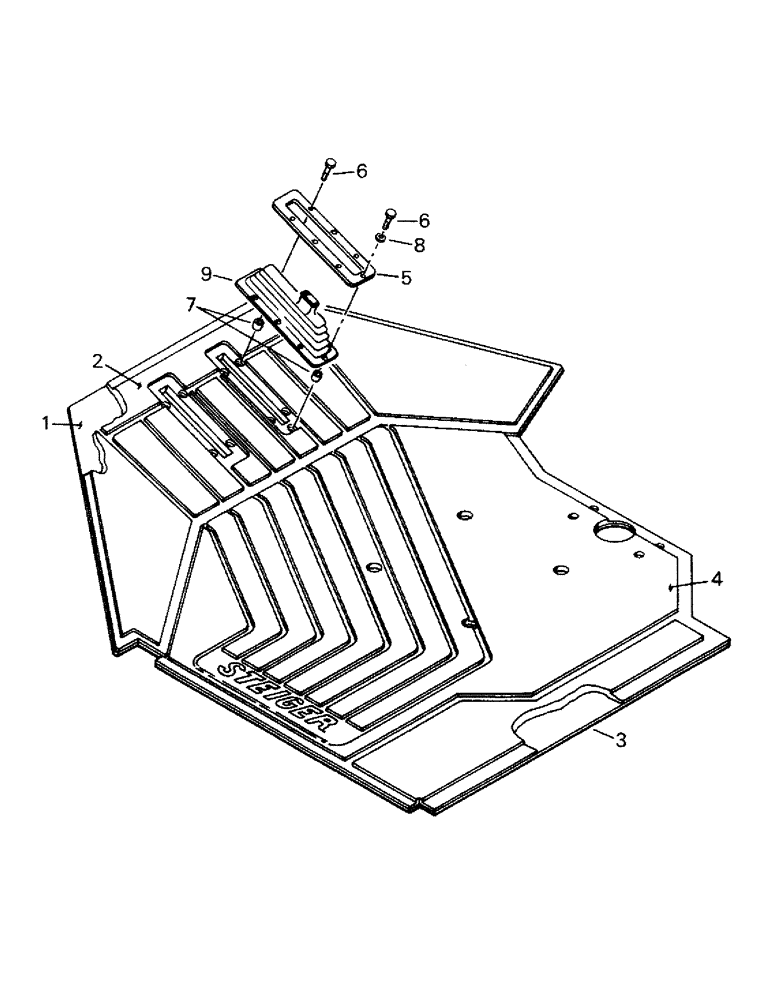

Запчасти Case IH STEIGER (01-03) - FLOORBOARD MAT AND TRIM (10) - CAB

1

60-2257T4

FOAM

TOEBOARD FOAM

1шт.

2

60-2822T2

MAT

TOEBOARD MAT (w/o controlled traction diff)

2шт.

60-3841T2

TOEBOARD MAT (with controlled traction diff)

1шт.

3

60-2273T2

FOAM

FLOORBOARD FOAM

1шт.

4

60-2274T2

MAT

FLOORBOARD MAT

1шт.

5

60-2271T2

OIL SEAL

BOOT RING (60-2271T1- code C) (see note)

2шт.

6

19-6140

SELF-TAP SCREW,Hex Wash Hd, 1/4"-20 x 1 1/4"

TAPPING SCREW (qty 10 on early models)

14шт.

7

60-2260T1

SPACER

(qty 10 on early models)

14шт.

8

9419996

WASHER,1/4"

2шт.

9

60-3414T1

BOOT

2шт.

10

2-1931T1

PLASTIC

CABLE TIE (used on top of boot) (not shown)

2шт.
