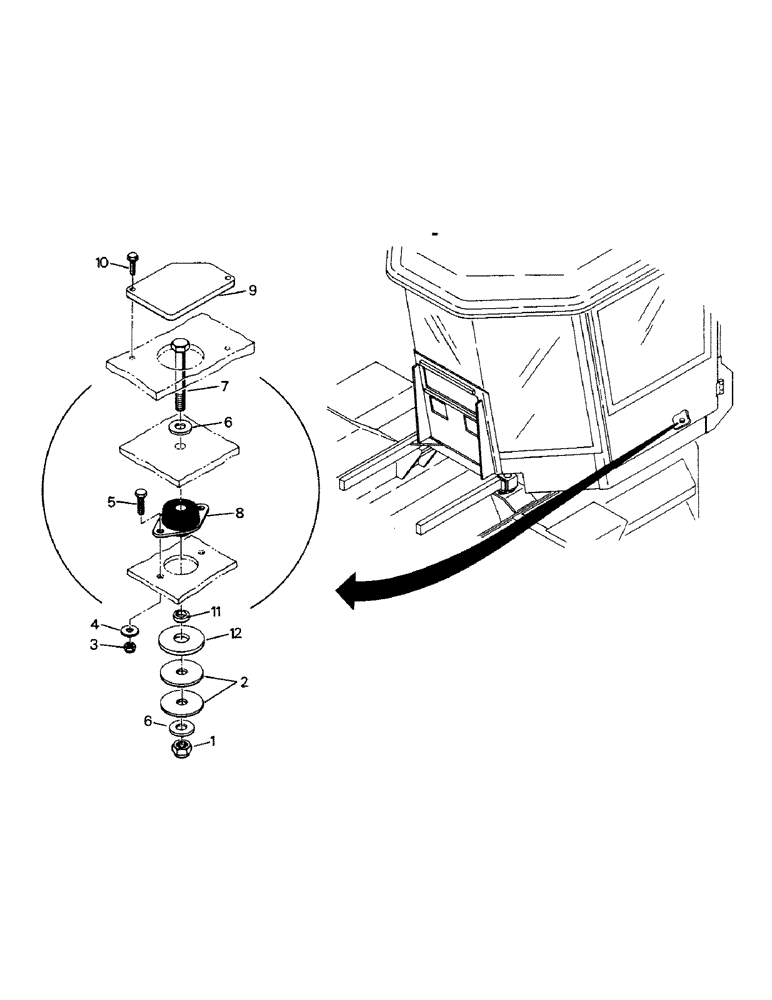

Запчасти Case IH STEIGER (01-02) - CAB MOUNTING (10) - CAB

1

19-5364

NUT

LOCK NUT

4шт.

2

60-1048T1

X

SUNBBER

8шт.

3

19-653

LOCK NUT

LOCK NUT

8шт.

4

19-109

WASHER,1/2"

8шт.

5

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

CAPSCREW

8шт.

6

2-3666T1

LARGE PLATE

SNUBBER PLATE

8шт.

7

9430566

CAPSCREW,3/4" - 10 x 5 1/2", Gr 8

4шт.

8

2-1879T1

ANCHOR

RUBBER MOUNT

4шт.

9

60-1177T1

COVER

CAB MOUNT COVER, this ref along with ref 10 are only used on the front two cab mounting locations

2шт.

10

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW, this ref along with ref 9 are only used on the front ywo cab mounting locations

4шт.

11

60-3347T1

SPACER

4шт.

12

60-3346T1

FITTING

SNUBBER

4шт.
