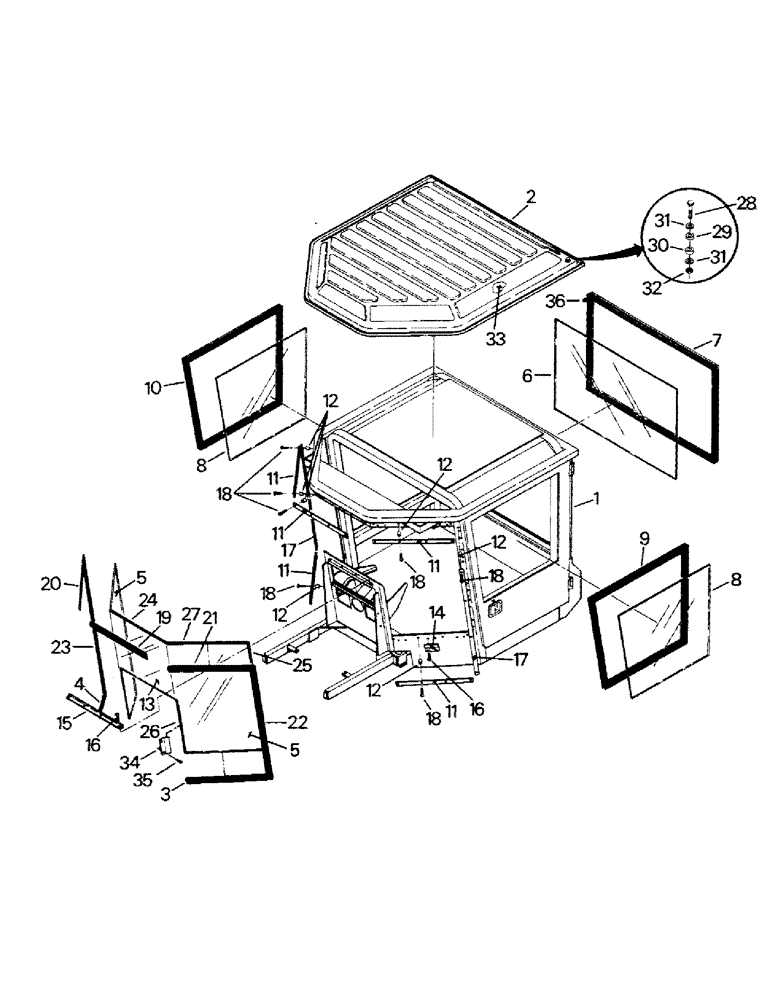

Запчасти Case IH STEIGER (01-01) - CAB AND WINDOWS (10) - CAB

1

CAB STRUCTURE, special order item

1шт.

2

2-2294T1

TOP

OUTER CAB TOP

1шт.

3

60-1863T2

MOLDING

1шт.

Early style front windows

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

60-3541T1

SEAL, GLASS

MOLDING, a single piece version of ref. 3, 4 and 19 - 23 used with later style windows and mounting only

1шт.

Later style front windows, change occured approx.

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

4

60-1869T2

MOLDING

1шт.

Early style front windows

1шт.

5

60-2361T1

WINDOW

FRONT ANGLED WINDOW

1шт.

Early style front windows

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

60-3540T1

CAB GLASS ASSY

FRONT ANGLED WINDOW

1шт.

Later style front windows, change occured approx.

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

6

60-3047T1

WINDOW

REAR WINDOW

1шт.

Both early and later style front windows

1шт.

7

60-3045T1

MOLDING

1шт.

Both early and later style front windows

1шт.

8

60-3046T1

WINDOW

SIDE WINDOW

2шт.

Both early and later style front windows

1шт.

9

60-3340T1

MOLDING

1шт.

Both early and later style front windows

1шт.

10

60-3341T1

MOLDING

1шт.

Both early and later style front windows

1шт.

11

60-2692T2

MOUNTING PARTS

MOLDING MOUNT

5шт.

Early style front windows

1шт.

12

19-6004

SPACER

25шт.

Early style front windows

1шт.

13

60-2360T1

FRONT WINDOW, plastic

1шт.

Early style front windows

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

60-4315T1

WINDSHIELD

FRONT WINDOW, glass

1шт.

Later style front windows, change occured approx.

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

14

60-2774T1

CLAMP

CLIP, qty 25 with early style front window

2шт.

15

60-1862T2

ANGLE, Replaces 60-1862T1

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

16

9421943

SCREW,Hex Washer, #10 - 24 x 1/2"

MACHINE SCREW

54шт.

Early style front windows

1шт.

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

TAPPING SCREW, front window only with later style

4шт.

17

60-2691T1

MOLDING MOUNT

2шт.

Early style front windows

1шт.

18

NLS

NO LONGER SERVICED

MACHINE SCREW

25шт.

Early style front windows

1шт.

19

60-1866T2

MOLDING

1шт.

Early style front windows

1шт.

20

60-1867T2

MOLDING

1шт.

Early style front windows

1шт.

21

60-1865T2

MOLDING

1шт.

Early style front windows

1шт.

22

60-1864T2

MOLDING

1шт.

Early style front windows

1шт.

23

60-1868T2

MOLDING

1шт.

Early style front windows

1шт.

24

60-3039T1

SEAL, GLASS

WINDOW ISOLATOR

2шт.

Both early and later style front windows

1шт.

25

60-3042T1

SEAL

WINDOW ISOLATOR

2шт.

Early style front windows

1шт.

26

60-3040T1

SEAL, GLASS

WINDOW ISOLATOR

2шт.

Both early and later style front windows

1шт.

27

60-3041T1

SEAL

WINDOW ISOLATOR

4шт.

Early style front windows

1шт.

28

9419023

BOLT,Hex, 1/4" - 20 x 3 1/4", Gr 5

CAPSCREW, front

2шт.

9419010

BOLT,Hex, 1/4"- 20 x 1 1/2", Gr 5

CAPSCREW, rear

2шт.

29

60-1826T1

BUSHING,6.35mm ID x 14.43mm OD x 14.22mm L

4шт.

30

60-1826T1

BUSHING,6.35mm ID x 14.43mm OD x 14.22mm L

front

2шт.

60-1825T1

RING

rear

1шт.

31

9421394

WASHER

8шт.

32

19-1081

LOCK NUT

LOCK NUT

4шт.

33

60-1121T2

FOAM

CAB TOP FOAM

1шт.

34

60-3296T1

WINDOW MOUNT BRACKET

2шт.

Both early and later style front windows

1шт.

35

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW

4шт.

Both early and later style front windows

1шт.

36

20-1814T1

SEAL, GLASS

HEAT SHRINK SLEEVE

1шт.

37

1-1055

SEALANT

RTV SEALANT, not shown

1шт.
