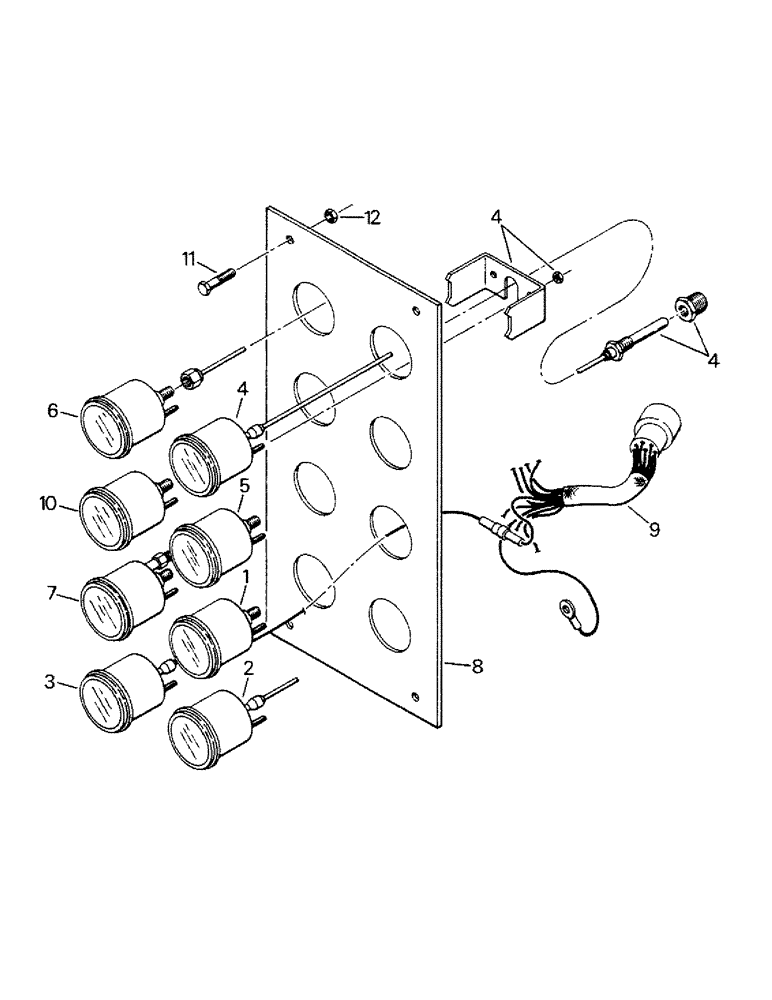

Запчасти Case IH STEIGER (02-22) - GAUGE PANEL ASSEMBLY, VEHICLE WARNING SYSTEM (06) - ELECTRICAL

60-2383T91

PANEL

GAUGE PANEL ASSY., All Cummins 855 engines and Cat 3406 engine before SN 3008consists of ref. 1 - 10

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

60-2383T92

PANEL

GAUGE PANEL ASSY., Cat 3406 engine after SN 3007, does not incl. refs. 4 and 5

1шт.

Gauge P/N 20-1386T1 should only be used on models not equipped with PTO systems

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

1

20-1390T1

KIT

TRANS PRESS. GAUGE (20-1386T1 - code B) (see note)

1шт.

Gauge P/N 20-1386T1 should only be used on models not equipped with PTO systems

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

2

20-1393T1

GAUGE

TRANS TEMP GAUGE

1шт.

3

20-1392T1

GAUGE

HYDRAULIC TEMP GAUGE

1шт.

4

20-1394T1

GAUGE

ENGINE TEMP GAUGE

1шт.

5

20-1391T1

GAUGE

ENGINE PRESS. GAUGE

1шт.

6

20-1387T1

GAUGE

ENGINE AIR FILTER GAUGE

1шт.

7

20-1388T1

GAUGE

HYDRAULIC FILTER GAUGE

1шт.

8

70-2336T1

ANCHOR

GAUGE MOUNT

1шт.

9

20-1419T1

PANEL

WIRE HARNESS

1шт.

10

20-1389T1

GAUGE

HYDRAULIC PRESS. GAUGE

1шт.

11

9419004

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

CAPSCREW

4шт.

12

19-1081

LOCK NUT

LOCK NUT

4шт.
