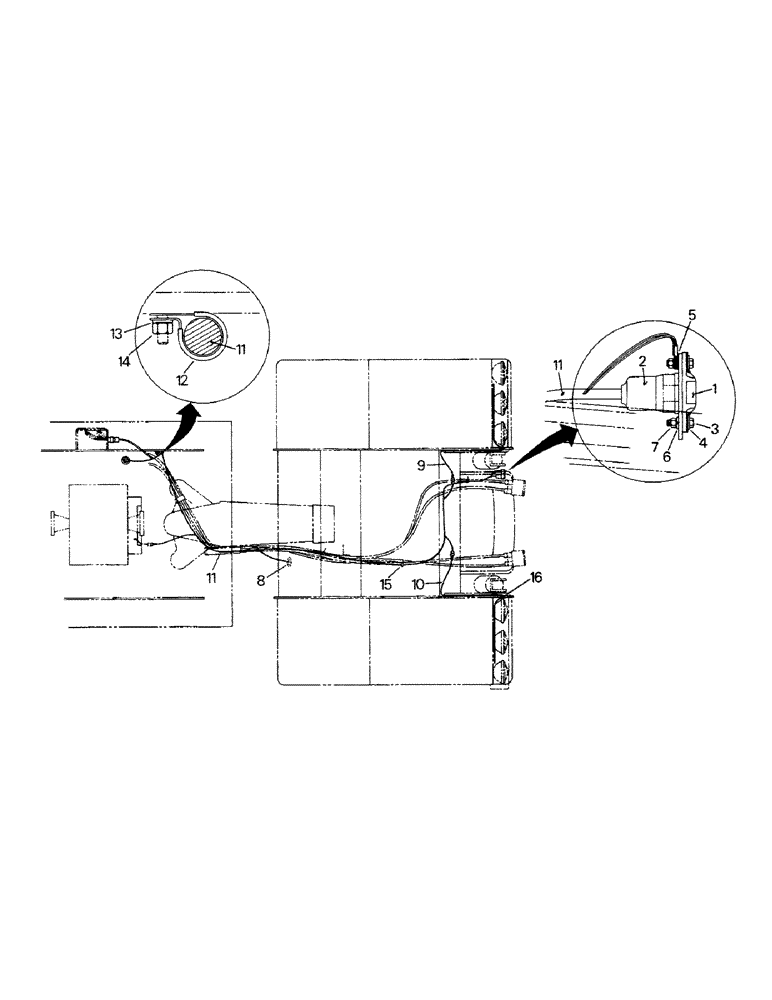

Запчасти Case IH STEIGER (02-19) - REAR FRAME ELECTRICAL (06) - ELECTRICAL

1

22-789

SOCKET

CONNECTOR, the optional mating plug is P/N 22-1143

1шт.

On later models the socket connector is not mounted on the coupler mount.

1шт.

2

22-790

COVER

BOOT

1шт.

3

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW

2шт.

4

19-106

WASHER,5/16", SAE

2шт.

5

19-605

LOCK WASHER,Ext Tooth, 5/16"

1шт.

6

19-116

LOCK WASHER,5/16"

5/16"

2шт.

7

19-77

NUT,5/16"-18, G5

2шт.

8

FUEL GAUGE SENDER ASSY., see Figure 02-20

1шт.

9

20-1076T2

HARNESS

LAMP WIRE HARNESS, right

1шт.

10

20-1075T2

HARNESS

LAMP WIRE HARNESS, left

1шт.

11

20-1569T2

HARNESS

REAR FRAME WIRE HARNESS, Replaces 20-1569T1

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

Wire harness connector kit P/N 1838T1 is available for field replacement of the rear frame wire harness end where it connects to the rear cab wire harness at the cab. The kit contains all necessary connectos and terminals for this replacement.

1шт.

12

31-2160

CLAMP

1шт.

13

19-115

LOCK WASHER,1/4"

1/4"

1шт.

14

19-76

NUT,1/4"-20, G5

1шт.

15

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

7шт.

16

31-2242

GROMMET

2шт.
