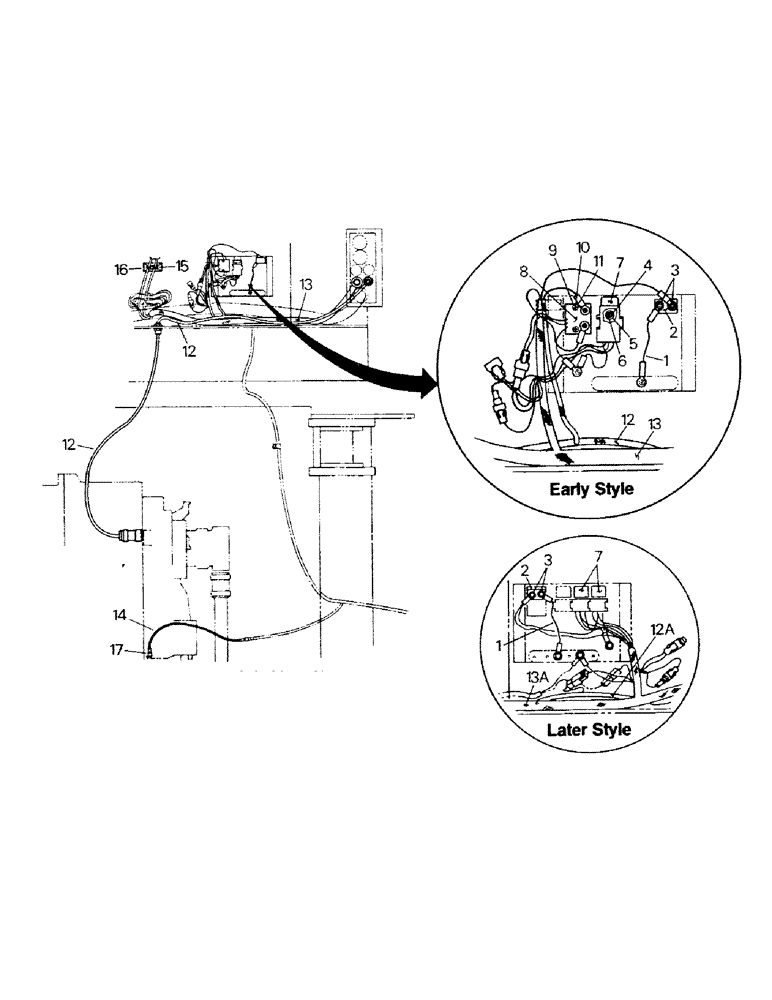

Запчасти Case IH STEIGER (02-13) - CONTROL CONSOLE ELECTRICAL, TRANSMISSION (06) - ELECTRICAL

1

20-1632T1

HARNESS

WIRE

1шт.

2

22-670

BREAKER

CIRCUIT BREAKER (10 amp)

1шт.

3

19-481

SERRATED NUT

KEP NUT

2шт.

4

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

The quantities of these Refs. vary from 1 to 3 with the various versions of ref. 13A.

1шт.

5

19-297

LOCK WASHER,#10

Washer, Lock, #10

2шт.

The quantities of these Refs. vary from 1 to 3 with the various versions of ref. 13A.

1шт.

6

19-567

NUT,#10-24

2шт.

The quantities of these Refs. vary from 1 to 3 with the various versions of ref. 13A.

1шт.

7

1-7877

RELAY

2шт.

The quantities of these Refs. vary from 1 to 3 with the various versions of ref. 13A.

1шт.

8

20-1619T1

CONTROL

CURRENT MONITOR ASSY

1шт.

9

19-1012

SCREW,Sl Pan Hd, #6 - 32 x 1 3/4", Gr 5

MACHINE SCREW

2шт.

10

19-601

LOCK WASHER,Ext, #6

2шт.

11

19-1013

NUT

2шт.

12

20-1622T1

HARNESS

TRANS WIRE HARNESS

1шт.

Used before S/N 2747

1шт.

Ref. 12 must be used with ref. 13 and ref. 12A must be used with ref. 13A; they cannot be intermixed.

1шт.

12a

20-1622T2

HARNESS

TRANS WIRE HARNESS

1шт.

Used after S/N 2746 (approx 2-1-83)

1шт.

Ref. 12 must be used with ref. 13 and ref. 12A must be used with ref. 13A; they cannot be intermixed.

1шт.

13

20-1623T1

HARNESS

TRANS CONSOLE WIRE HARNESS

1шт.

Used before S/N 2747

1шт.

Ref. 12 must be used with ref. 13 and ref. 12A must be used with ref. 13A; they cannot be intermixed.

1шт.

13a

20-1832T4

HARNESS

TRANS CONSOLE WIRE HARNESS, Serial Range: (20-1832T1-20-1832T3)

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

Used after S/N 2746 (approx 2-1-83)

1шт.

Ref. 12 must be used with ref. 13 and ref. 12A must be used with ref. 13A; they cannot be intermixed.

1шт.

14

20-1568T1

HARNESS

MAGNETIC PICKUP ADAPTER WIRE HARNESS

1шт.

Magnetic pickup P/N 20-1912T1 now has ref. 14 incorporated in it; however, ref. 14 is still available as a service part for early models.

1шт.

15

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

3шт.

16

22-823

MOUNT

BACK MOUNT

1шт.

17

90-3232T1

SENSOR

MAGNETIC PICKUP (3/4" threads)

1шт.

Used before S/N 2660

1шт.

20-1912T1

MAGNET

IC PICKUP (5/8" threads) (20-1854T1)

1шт.

Used after S/N 2659 (approx 4-4-83)

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.
