Запчасти Case IH STEIGER (02-12) - CAB OVERHEAD ELECTRICAL (06) - ELECTRICAL

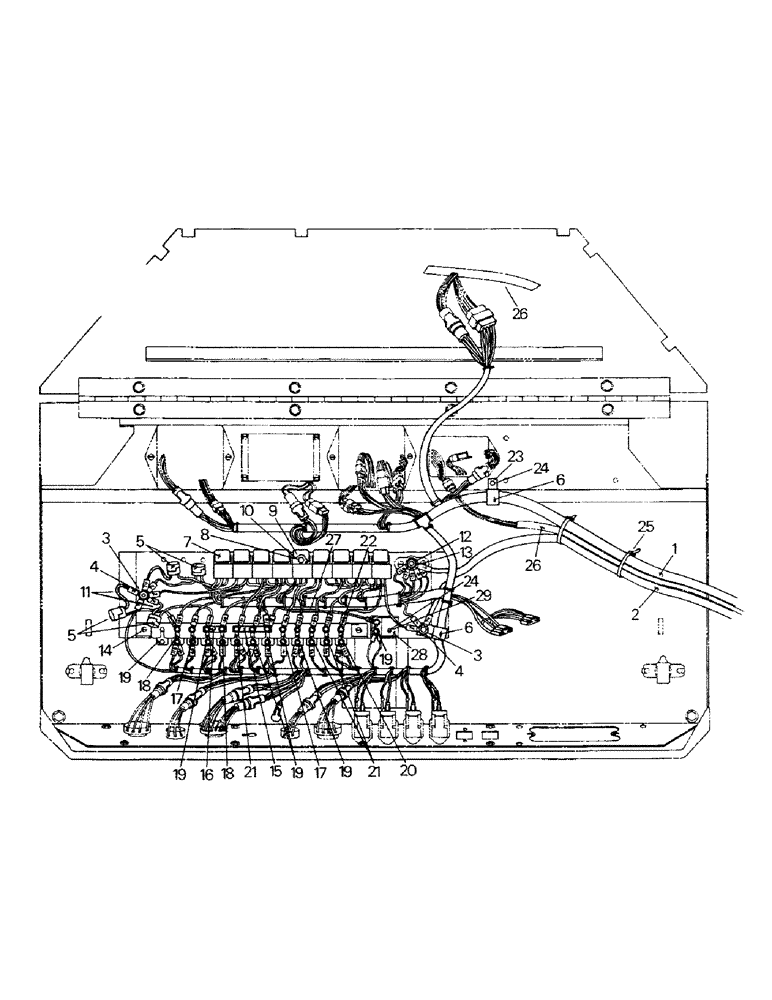

Схема запчастей Case IH STEIGER - (02-12) - CAB OVERHEAD ELECTRICAL (06) - ELECTRICAL
25
2
23
19
4
7
3
21
22
3
21
28
4
9
19
26
17
11
19
19
8
18
6
16
5
10
17
1
14
29
12
27
6
19
5
15
26
13
18
24
24
20

Артикул

Название

Примечание

Количество

1

20-1624T5

HARNESS

MAIN CAB WIRE HARNESS (20-1624T1 to 20-1624T4 - code C) (see note on figure 2-9)

1шт.

2

20-1457T1

HARNESS

CAB POWER WIRE HARNESS

1шт.

3

19-115

LOCK WASHER,1/4"

1/4"

3шт.

4

19-76

NUT,1/4"-20, G5

3шт.

5

22-738

DIODE

4шт.

6

31-2160

CLAMP

2шт.

7

1-7877

RELAY

9шт.

8

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

4шт.

9

19-297

LOCK WASHER,#10

Washer, Lock, #10

4шт.

10

19-567

NUT,#10-24

4шт.

11

20-1633T1

HARNESS

DIODE WIRE HARNESS

2шт.

12

19-5577

LOCK WASHER

LOCK WASHER

1шт.

13

115772

NUT

1шт.

20-1078T91

BREAKER

CIRCUIT BREAKER ASSY, consists of ref. 14 - 22

1шт.

14

22-674

BRACKET

1шт.

15

22-676

BREAKER

BUSS BAR

1шт.

16

22-677

BAR

BUSS BAR

1шт.

17

22-809

BREAKER

CIRCUIT BREAKER (5 amp)

2шт.

18

22-670

BREAKER

CIRCUIT BREAKER (10 amp)

2шт.

19

22-671

BREAKER

CIRCUIT BREAKER (15 amp)

6шт.

20

22-673

BREAKER

CIRCUIT BREAKER (30 amp)

1шт.

21

22-672

BREAKER

CIRCUIT BREAKER (20 amp)

3шт.

22

19-481

SERRATED NUT

KEP NUT

25шт.

23

19-195

WASHER,#10

1шт.

24

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

MACHINE SCREW

3шт.

25

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

2шт.

26

20-1617T1

OVERHEAD WIRE HARNESS

1шт.

27

20-1963T1

HARNESS

WIRE

1шт.

28

20-1171T1

SUPPORT

CIRCUIT BREAKER BRACKET

1шт.

29

19-603

LOCK WASHER,Ext Tooth, #10

2шт.

Выбрано товаров: 30
