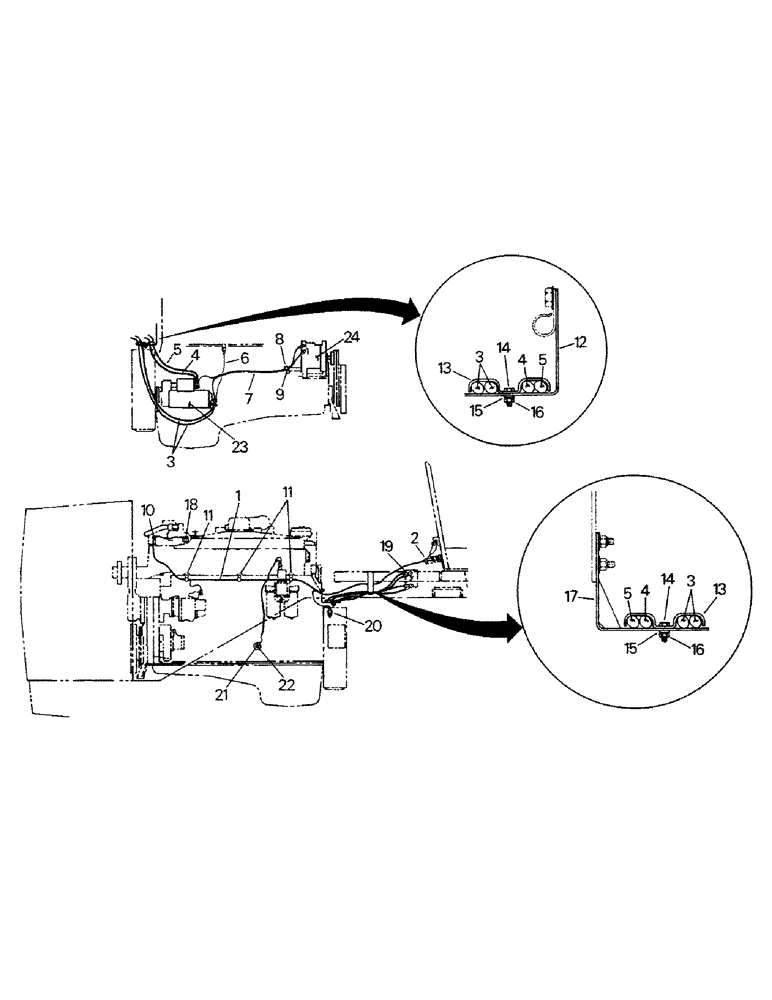

Запчасти Case IH STEIGER (02-03) - ENGINE ELECTRICAL, CUMMINS 855 ENGINE (06) - ELECTRICAL

1

20-1576T1

HARNESS

ENGINE WIRE HARNESS, cannot intermix parts with 20-1677T1 harness, no S/N available approx 8-1-84

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

20-1677T1

ENGINE WIRE HARNESS, cannot intermix parts with 20-1576T1 harness, no S/N available approx 8-1-84

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

2

22-633

CLIP

1шт.

3

20-1290T1

CABLE

BATTERY CABLE

2шт.

4

20-1289T1

CABLE

BATTERY CABLE

1шт.

5

20-1721T1

CABLE

STARTER CABLE

1шт.

6

20-1829T1

ELECTRICAL WIRE

GROUND WIRE, Replaces 22-033

1шт.

Superseded - P/N is superseded on this model or models only. Old P/N can be used for other applications and models but new P/N must always be used in this code.

1шт.

7

20-1567T1

HARNESS

ALT WIRE HARNESS

1шт.

8

1-1292

CLIP

1шт.

9

19-700

WASHER,5/16"

1шт.

10

22-634

CLIP

1шт.

11

22-632

CLIP

3шт.

12

20-1757T1

ANGLE

1шт.

13

2-4182T1

CLAMP

2шт.

14

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW

2шт.

15

19-115

LOCK WASHER,1/4"

1/4"

2шт.

16

19-76

NUT,1/4"-20, G5

2шт.

17

90-3717T1

BRACKET

1шт.

18

20-1305T1

TEMPERATURE SENDER

WATER TEMP SENDER, used with engine wire harness 20-1576T1, no SN available

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

20-1676T1

SWITCH

WATER TEMP SWITCH AND SENDER, used with engine wire harness 20-1677T1, no SN available

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

19

1-6885

BOOT

TERMINAL BOOT

2шт.

20

20-1587T1

MAGNET

IC PICKUP, 5/8-18 UNF, wire size 9", round connector, used with engine wire harness 20-1576T1, no SN available

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

20-1854T1

SENSOR

MAGNETIC PICKUP, 5/8-18 UNF, wire size 9", round connector, used with engine wire harness 20-1677T1, no SN available

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

21

1-2227T2

SENDER UNIT

OIL PRESSURE SENDER, used with engine wire harness 20-1576T1, no SN available

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

20-1643T1

SWITCH

OIL PRESS. SWITCH & SENDER, used with engine wire harness 20-1677T1, no SN available

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

22

19-481

SERRATED NUT

KEP NUT, not used with engine wire harness 20-1677T1

1шт.

23

STARTER ASSY (see figure 2-4)

1шт.

24

ALT ASSY (see figure 2-6)

1шт.

25

1-7818

CABLE

TIE, not shown

2шт.

26

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, (Not shown) 3/16" x 7 1/4"

1шт.

20-2129T1

SENSOR

5/8-18 UNF, wire size 9", round connector

1шт.

20-2357T1

SENSOR

3/4-16 UNF, wire size 9", oval connector

1шт.

A48264

CABLE

3/4-20 UNF, wire size 9", round connector

1шт.

20-1839T1

KIT

WIRE HARNESS CONNECTOR KIT, available for for field replacement of the engine wire harness endwhere it connects to the main cab wire harness at the firewall, the kit contains all necessary connectors and terminals for this replacement

1шт.
