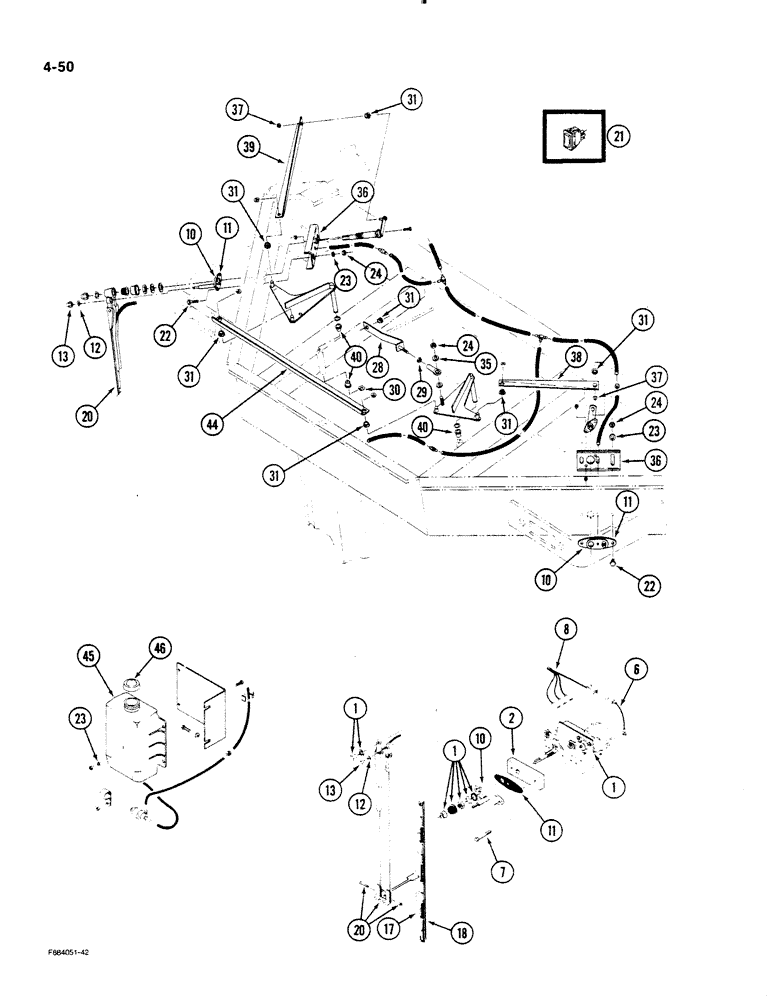

Запчасти Case IH STEIGER (4-50) - SIDE AND REAR WIPER WITH WINDOW WASHER (04) - ELECTRICAL SYSTEMS

35-1718T91

KIT

WIPER KIT - side and rear window with washer, Includes Ref: 1-46

1шт.

1

REF

INSTRUCTION

DRIVE ASSEMBLY - wiper, rear (See Figure: 4-56)

1шт.

2

60-4981T1

SPACER

- wiper mounting

1шт.

6

20-1452T1

ELECTRICAL WIRE

WIRE - ground lead

1шт.

7

414-424

BOLT,Hex, 1/4" - 28 x 1-1/2", Gr 5

2шт.

8

20-2502T1

HARNESS

- wiper, rear

1шт.

60-1436T91

PIVOT ASSY.

PIVOT KIT - wiper blade, Includes Ref: 10-13

3шт.

10

NSS

NOT SOLD SEPARAT

PIVOT - body and shaft, wiper

3шт.

11

2-4190T1

GASKET

- pivot

3шт.

12

2-4191T1

WASHER

- lock

3шт.

13

2-4192T1

NUT

- hex, cap

3шт.

17

60-1145T91

WIPER BLADE

BLADE ASSEMBLY - wiper, 18 inch

3шт.

18

2-4194T1

WIPER BLADE

BLADE - replacement, rubber

1шт.

20

60-1144T1

WIPER ARM

ARM - wiper, 17 inch

3шт.

21

1964755C1

SWITCH

- rocker, rear wiper

1шт.

22

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

- hex, 1/4 NC x 1-1/2 inch

4шт.

23

19-105

WASHER,1/4", SAE

- flat, 1/4 x 47/64 x 1/16 inch

9шт.

24

19-1081

LOCK NUT

- hex lock, 1/4 inch NC

5шт.

28

60-5898T1

POWER ARM

ARM - link, actuating

1шт.

29

19-89

NUT,1/4"-28, G5

- hex, 1/4 inch NF

1шт.

30

19-5866

RING, SNAP

RING - snap, main pivots

2шт.

31

19-6262

RING RACE

BEARING - snap in

7шт.

35

19-1031

GASKET

BALL JOINT - actuating, 1/4 inch NF

1шт.

36

60-5902T1

SPACER

- shaft, pivot

2шт.

37

1-2685

CLIP

- spring

2шт.

38

60-5900T1

ANGLE BAR

ANGLE - actuating, left side

1шт.

39

60-5901T1

ANGLE BAR

ANGLE - actuating, right side

1шт.

40

19-6263

NYLON BEARING,0.38" ID x 0.59" OD x 0.38"

BEARING - flanged

4шт.

44

60-5899T1

ANGLE BAR

ANGLE - actuating, front

1шт.

45

60-4236T1

WASHER

TANK - washer

1шт.

46

60-4241T1

FILLER CAP

CAP - tank

1шт.
