Запчасти Case IH STEIGER (3-22) - FUEL FILTER, 855 ENGINE (03) - FUEL SYSTEM

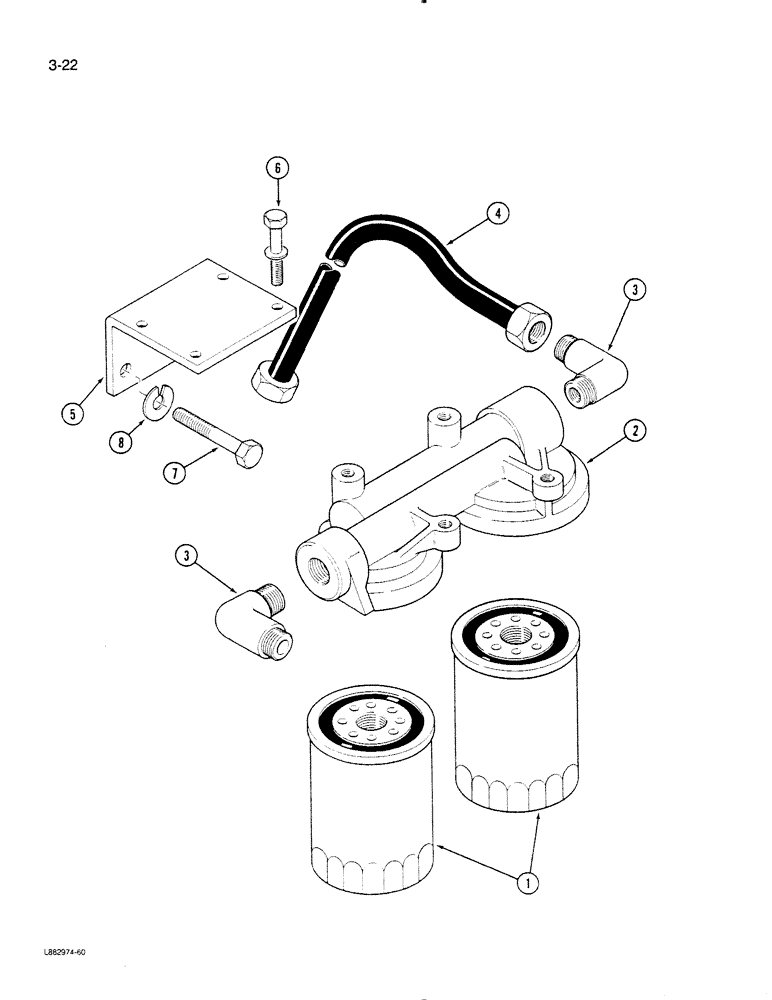

Схема запчастей Case IH STEIGER - (3-22) - FUEL FILTER, 855 ENGINE (03) - FUEL SYSTEM
4
1
8
7
6
5
3
3
2

Артикул

Название

Примечание

Количество

1

28-35

FUEL FILTER

2шт.

Order this part from J.I. Case.

1шт.

2

212013

HEAD

- fuel filter

1шт.

3

129859

ELBOW

- male, 90 degree

2шт.

4

A71094

HOSE

fuel

1шт.

Order this part from J.I. Case.

1шт.

5

3003749

SPARE PART

- filter

1шт.

6

3010595

CAP

BOLT - hex with washer, 3/8 NC x 1 inch

4шт.

7

S151-C

BOLT

BOLT - hex, 9/16 NF x 1 inch

2шт.

8

S609

WASHER, LOCK

WASHER - lock

2шт.

Выбрано товаров: 10
