(3-12) - FUEL PUMP GEAR, 855 ENGINE

Запчасти Case IH STEIGER (3-12) - FUEL PUMP GEAR, 855 ENGINE (03) - FUEL SYSTEM

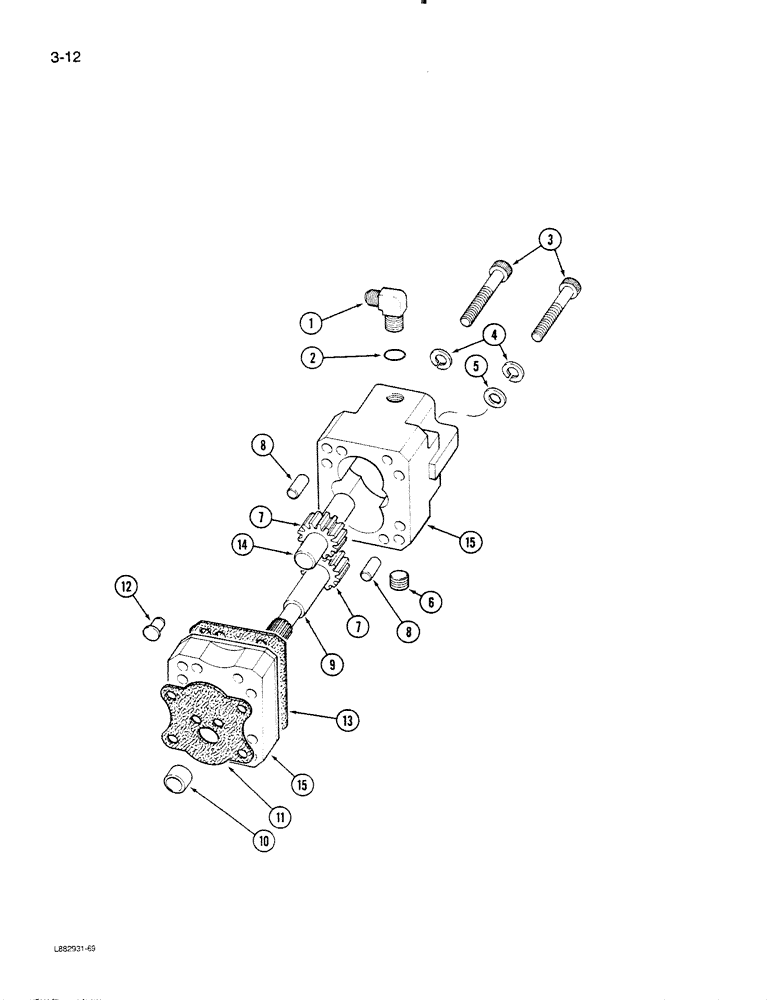

Схема запчастей Case IH STEIGER - (3-12) - FUEL PUMP GEAR, 855 ENGINE (03) - FUEL SYSTEM
9
1
8
4
8
7
10
13
2
8
7
11
12
15
14
15
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

PUMP GEAR ASSEMBLY - fuel, Includes Ref: 1-15

1шт.

1

NLS

NO LONGER SERVICED

VALVE - check

1шт.

2

3034412

O-RING

- check valve

1шт.

3

NSS

NOT SOLD SEPARAT

BOLT - hex

2шт.

4

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

5

NSS

NOT SOLD SEPARAT

WASHER - flat

2шт.

6

NSS

NOT SOLD SEPARAT

PLUG - threaded

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - fuel pumpimg

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - roll

2шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - drive, fuel pump

1шт.

10

NSS

NOT SOLD SEPARAT

RING - dowel

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - fuel pump

1шт.

12

NSS

NOT SOLD SEPARAT

VALVE - pressure regulator

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - fuel pump

1шт.

14

NSS

NOT SOLD SEPARAT

SHAFT - fuel pump

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING AND COVER - gear

1шт.
