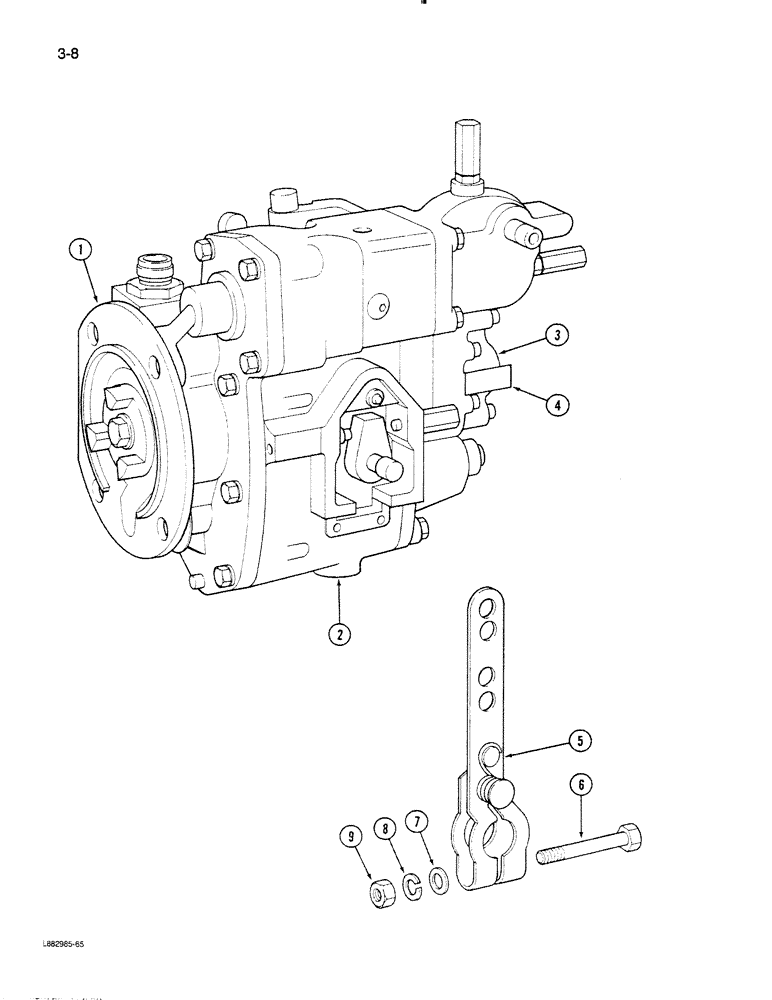

Запчасти Case IH STEIGER (3-08) - FUEL INJECTION PUMP, 855 ENGINE (03) - FUEL SYSTEM

A71044

PUMP

ASSEMBLY, fuel injection, Includes Ref: 1-4

1шт.

Order this part from J.I. Case.

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - pump, fuel injection (See Figure: 3-10)

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR - pump, fuel injection (See Figure: 3-12)

1шт.

4

NSS

NOT SOLD SEPARAT

DAMPER - fuel pump (See Figure: 3-16)

1шт.

5

110481

LEVER

- throttle

1шт.

6

S159-B

BOLT

- hex, 1/4 NF x 1-1/2 inch

1шт.

7

70704

WASHER,21-5" Length

- flat, 1/4 inch

1шт.

8

S600

WASHER, LOCK

WASHER - lock, 1/4 inch

1шт.

9

S251

NUT

- hex

1шт.
