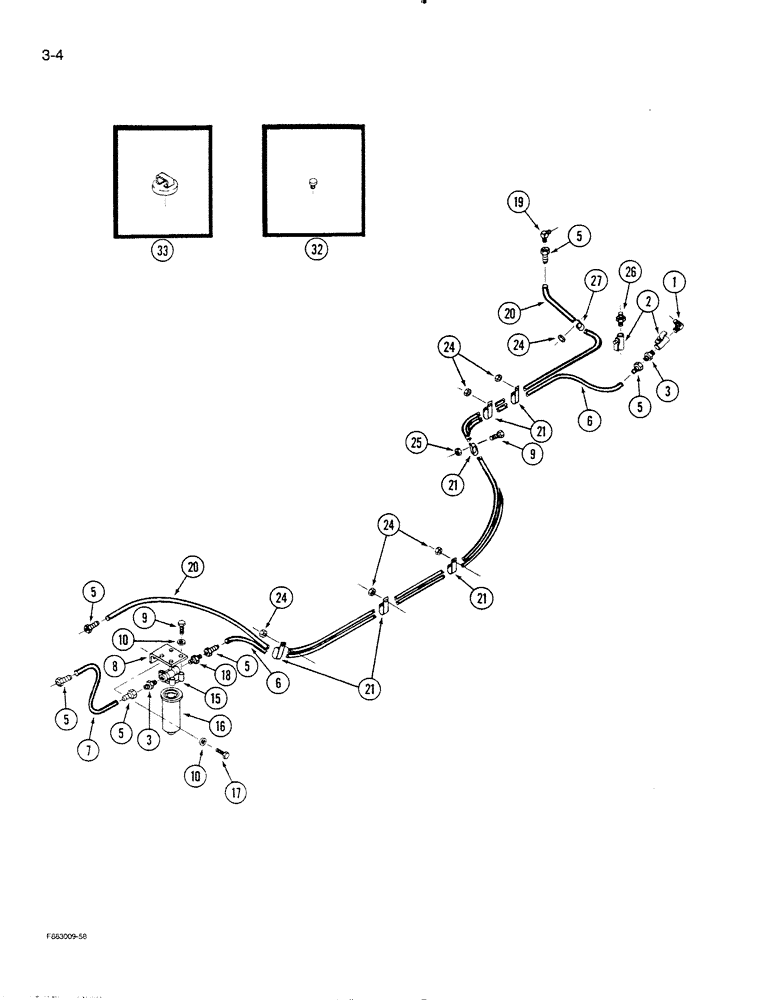

Запчасти Case IH STEIGER (3-04) - FUEL LINE SYSTEM, 3406 ENGINE (03) - FUEL SYSTEM

1

31-1585

FITTING

ELBOW - 90 degree, 1/2 NPT x 1/2 inch NPT

1шт.

2

31-1267

SHUT-OFF VALVE

VALVE - shut off

2шт.

3

31-375

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR - straight, 1/2 NPT x 9/16 inch thread

2шт.

5

31-311

INSERT

CONNECTOR - straight, 1/2 x 3/4 inch, thread

6шт.

6

31-1068

HOSE ASSY.

HOSE - fuel supply, 3/8 x 180 inch

1шт.

7

31-1306

HOSE,9.5 mm ID x 406.40 mm, SAE 30R2

(Fuel Supply) 9.5 mm ID x 406.40 mm, SAE 30R2

1шт.

8

90-3858T1

BRACKET

- mounting, filter housing

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

10

19-117

LOCK WASHER,3/8"

3/8"

6шт.

15

90-3940T1

HEAD

HOUSING - filter, fuel

1шт.

16

90-3941T1

SEPARATOR

FILTER - fuel

1шт.

17

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, Grade 8

2шт.

18

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

- 45 degree, 1/2 NPT x 9/16 inch thread

1шт.

19

31-528

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

- 90 degree, 1/2 NPT x 9/16 inch thread

1шт.

20

31-2287

HOSE,0.38" ID x 240.00"

Fuel Return, Order 32-12, and Cut to Required Length 0.38" ID x 240.00"

1шт.

21

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- hose

6шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

25

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

1шт.

26

31-345

FITTING

CONNECTOR - straight, 1/2 NPT x 1/2 inch NPT

1шт.

27

31-1776

MOUNTING CLIP

CLAMP - hose

1шт.

32

31-1536

BREATHER

VENT - breather, fuel tank

1шт.

33

A162191

CAP

- fuel tank

1шт.
