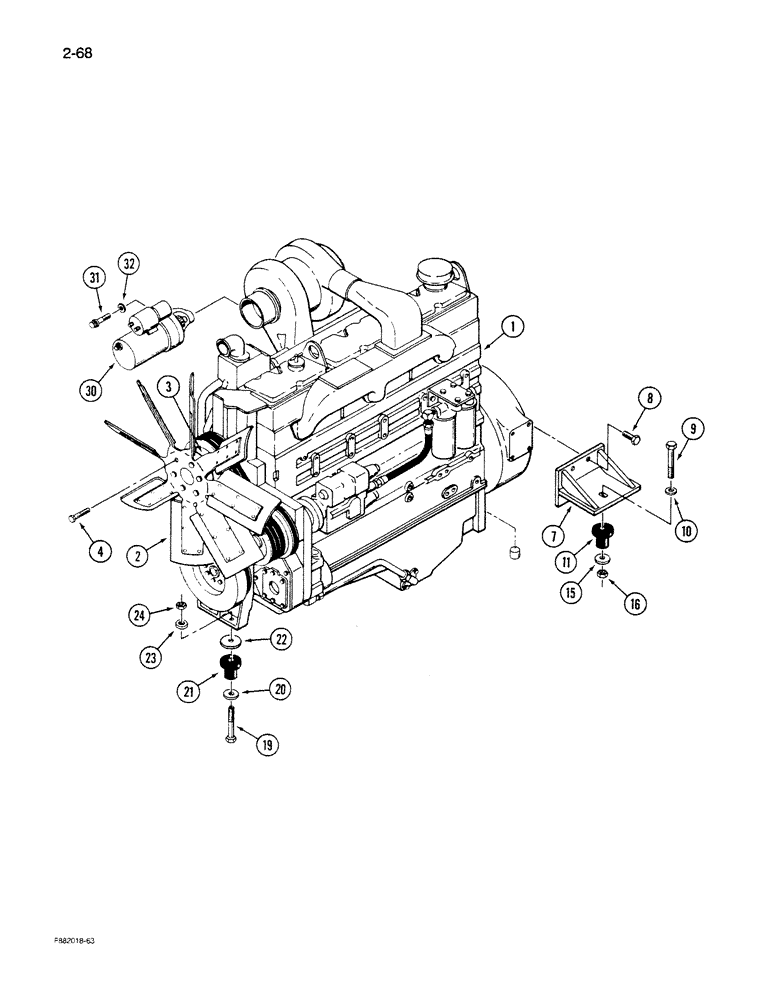

Запчасти Case IH STEIGER (2-68) - ENGINE MOUNTING, 855 ENGINE (02) - ENGINE

1

90-6751T1

ENGINE ASSEMBLY

- NTA-855-A BC III, 335 horsepower

1шт.

2

90-4238T1

FAN

- engine

1шт.

3

90-3571T1

SPACER

- fan

1шт.

4

26-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

- hex, 1/2 NC x 5 inch, Grade 8

6шт.

7

90-1545T1

MOUNTING PARTS

MOUNT - engine, LH

1шт.

7

90-1546T1

MOUNTING PARTS

MOUNT - engine, RH

1шт.

8

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

- hex. 5/8 NC x 1-1/2 inch, Grade 8

8шт.

9

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

10

19-712

WASHER,3/4", SAE

- flat, 3/4 x 1-1/2 x 1/8 inch

2шт.

11

47-4172

SHOCK ABSORBER

MOUNT - isolator, rubber

2шт.

15

19-112

WASHER,3/4"

- flat, 3/4 x 2 x 9/64 inch

2шт.

16

19-85

LOCK NUT

- hex, lock, 3/4 inch NC

2шт.

19

19-256

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

20

19-408

WASHER

- flat, 5/8 x 2-1/2 x 3/16 inch

2шт.

21

24-231

RUBBER MOUNTING

MOUNT - isolator, rubber

2шт.

22

51-128

WASHER

- flat, 5/8 x 3-1/2 x 3/16 inch

2шт.

23

67872C1

WASHER

- flat, hardened, 5/8 x 1-1/4 x 1/4 inch

2шт.

24

19-222

LOCK NUT,5/8" - 11, GB

NUT - hex, lock, 5/8 inch NC

2шт.

25

90-6414T1

PLUG

- flywheel housing

1шт.

30

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Page 4-35)

1шт.

31

19-907

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

BOLT - 12 point, 5/8 NC x 2 inch, Grade 8

3шт.

32

19-912

WASHER

- flat, 5/8 x 1-3/16 x 3/16 inch

3шт.
