3801743

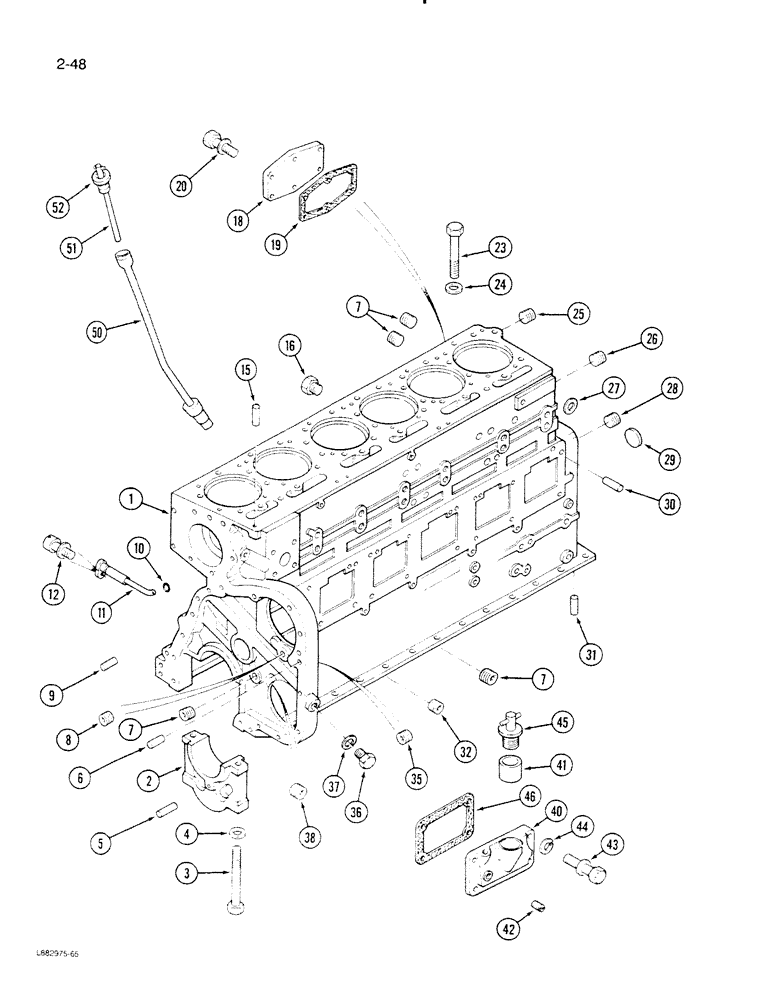

CYLINDER BLOCK
BLOCK ASSEMBLY - cylinder (Includes camshaft bushings), Includes Ref: 1-38
1шт.
1
NSS
NOT SOLD SEPARAT
BLOCK - cylinder
1шт.
2
3008047
SPARE PART
- main bearing, No.1,3 and 5
3шт.
2
3008048
SPARE PART
- main bearing, No. 2,4 and 6
3шт.
2
3008049
SPARE PART
- main bearing, No.7
1шт.
3
208346
SCREW
BOLT - hex, 3/4 NF x 6-5/8 inch
14шт.
4
3046246
WASHER
- flat
14шт.
5
202903
X
PIN - roll
2шт.
6
70653
DOWEL
PIN - dowel
1шт.
7
3013786
HOSE
- pipe, 3/8 inch
5шт.
8
S911-B
PLUG
- pipe, 1/8-27 NPT
2шт.
9
60408
DOWEL
PIN - dowel
3шт.
3014404
NOZZLE INJECTION
NOZZLE ASSEMBLY - oil cooling. piston
6шт.
10
3007442
RING
SEAL - nozzle
1шт.
11
3013591
NOZZLE INJECTION
NOZZLE - piston cooling
1шт.
12
3033822
CAP
BOLT - hex with washer, 5/16 NF x 5/8 inch
1шт.
15
68445
PIN, GROOVED
PIN - grooved
6шт.
16
3046202
PLUG
- pipe
1шт.
17
69901
PLUG
- pipe, 1/8 inch
7шт.
18
132019
COVER
- water header
1шт.
19
70089-1
GASKET
- cover plate
1шт.
20
3013904
CAP
BOLT - hex with washer, 1/4 NC x 5/8 inch
6шт.
23
3013623
CAP
BOLT - hex, 11/16-16 x 7-3/8 inch
36шт.
24
69699
BEARING CONE
- flat
36шт.
25
S966-E
PLUG
- pipe, 1 inch
1шт.
26
S719
PLUG
- expansion, 1 inch
1шт.
27
S679
WASHER
- flat
1шт.
28
A77428
PLUG
hex socket pipe, 1/4-18 inch PT
2шт.
Order this part from J.I. Case.
1шт.
29
3011952
PLUG
- expansion
1шт.
30
68585
DOWEL
PIN - dowel
6шт.
31
67211
DOWEL
PIN - dowel, rear main
2шт.
32
S716
PLUG
- expansion
2шт.
35
A77505
PLUG
hex socket pipe, 3/4-14 inch PT
1шт.
Order this part from J.I. Case.
1шт.
36
210884
PLUG
- threaded
1шт.
37
NLS
NO LONGER SERVICED
- flat
1шт.
38
A77429
PLUG
hex socket pipe, 1/2-14 PT
5шт.
Order this part from J.I. Case.
1шт.
3037419
COVER
ASSEMBLY - hand hole, Includes Ref: 40, 41, 42
1шт.
40
3037381
COVER
- hand hole
1шт.
41
65527
TUBE
- oil filler
1шт.
42
3027232
PLUG
- pipe
1шт.
43
3010595
CAP
BOLT - hex with washer, 3/8 NC x 1 inch
4шт.
44
S602
WASHER
- flat
4шт.
45
251449DS
LANDSIDE
CAP - filler
1шт.
50
101814
TUBE
- dipstick
1шт.
51
199445
- oil level
1шт.
52
3035198
CAP
- dipstick
1шт.
