(STEIGER) - PANTHER 1000-SERIES POWERSHIFT 4WD TRACTOR. (1/87-12/98)
/
(02) - ENGINE
/

(2-34) - EXHAUST MANIFOLDS, 855 ENGINE

Запчасти Case IH STEIGER (2-34) - EXHAUST MANIFOLDS, 855 ENGINE (02) - ENGINE

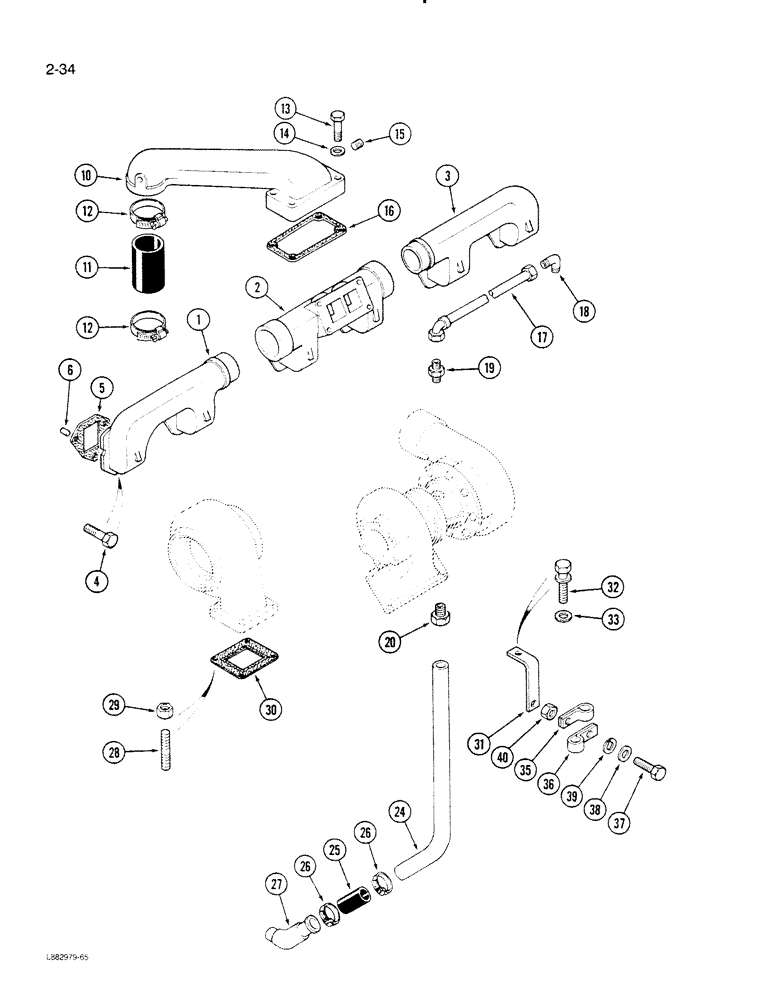

Схема запчастей Case IH STEIGER - (2-34) - EXHAUST MANIFOLDS, 855 ENGINE (02) - ENGINE
27
4
37
29
30
3
36
11
32
28
12
18
38
10
35
12
31
5
1
13
40
33
26
39
17
24
26
16
2
6
15
25
20
19
14

№

Артикул

Название

Примечание

Количество

1

3031186

MANIFOLD

- exhaust, rear

1шт.

2

3026051

MANIFOLD

- exhaust, center

1шт.

3

3031187

MANIFOLD

- exhaust, front

1шт.

4

3043647

CAP

BOLT - hex

10шт.

5

3020943

GASKET

- exhaust manifold

6шт.

6

105199

GROOVED PIN

PIN - grooved

6шт.

10

211657

CONNECTION

- air crossover, turbocharger system

1шт.

11

NLS

NO LONGER SERVICED

- plain, turbocharger system

1шт.

12

208326

CLIP

CLAMP - hose, turbocharger

2шт.

13

S103-D

BOLT

BOLT - hex, 3/8 NC x 1-1/4 inch, turbocharger system

4шт.

14

S679

WASHER

- flat, turbocharger system

4шт.

15

A71098

PLUG

pipe, turbocharger system

1шт.

Order this part from J.I. Case.

1шт.

16

216487

GASKET

- crossover, turbocharger system

1шт.

17

209958

HOSE ASSY.

HOSE - flexible, turbocharger system

1шт.

18

68645

ELBOW

- adapter, male, turbocharger system

1шт.

19

3014354

ADAPTER

CONNECTOR - straight, turbocharger system

1шт.

20

3022865

LINE

CONNECTOR - female, turbocharger system

1шт.

24

3022867

TUBE

- oil drain, turbocharger, system

1шт.

25

3035174

HOSE ASSY.

HOSE - flexible, turbocharger system

1шт.

26

210753

CLIP

CLAMP - hose, turbocharger system

2шт.

27

3003536

ELBOW

- oil return, turbocharger system

1шт.

28

3056155

STUD

- exhaust collector mounting, turbocharger system

4шт.

29

3056158

NUT

- exhaust collector mounting, turbocharger system

4шт.

30

190849

GASKET

- exhaust collector, turbocharger system

1шт.

31

3015437

SUPPORT

BRACE - tube, turbocharger system

1шт.

32

3013904

CAP

BOLT - hex with washer, 1/4 NC x 5/8 inch, turbocharger system

1шт.

33

S631

WASHER

- flat, turbocharger system

1шт.

35

69465

CLIP

CLAMP - tube, turbocharger system

1шт.

36

A77508

CLAMP

tube, turbocharger system

2шт.

Order this part from J.I. Case.

1шт.

37

S107

BOLT

BOLT - hex, 5/16 NC x 3/4 inch, turbocharger system

3шт.

38

S626

WASHER

- flat, turbocharger system

3шт.

39

S605

WASHER, LOCK

WASHER - lock, turbocharger system

3шт.

40

S221

NUT

- heavy hex, 5/16 inch NC, turbocharger system

3шт.

Выбрано товаров: 35
