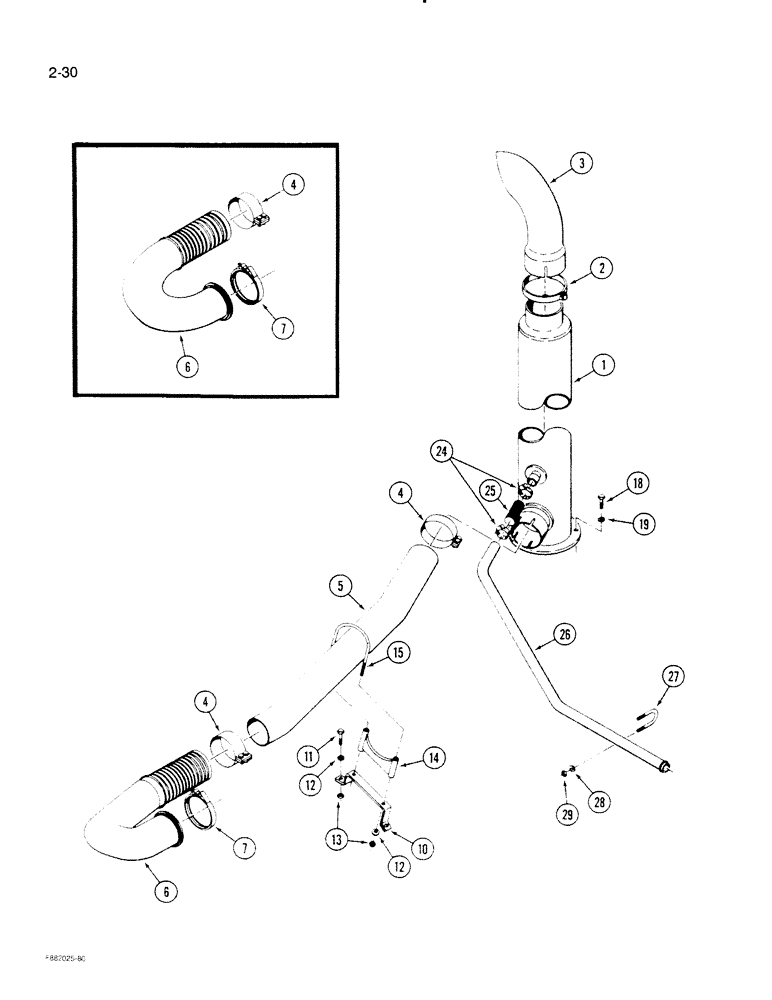

Запчасти Case IH STEIGER (2-30) - EXHAUST SYSTEM (02) - ENGINE

1

90-2914T2

MUFFLER

- exhaust

1шт.

2

32-341

CLAMP

- exhaust

1шт.

3

45-255

MUFFLER

STACK - exhaust, muffler

1шт.

4

31-1061

MOUNTING CLIP

CLAMP ASSEMBLY - exhaust

2шт.

5

90-2909T1

TUBE,5 mm OD x 46.44, 11.81 mm L

- exhaust

1шт.

6

90-2912T1

TUBE,12.75, 6.62 mm L

ELBOW - exhaust, 855 engine

1шт.

6

90-5775T1

EXHAUST SYSTEM PIPE

ELBOW - exhaust, 3406 engine

1шт.

7

31-1316

MOUNTING CLIP

CLAMP - exhaust, V-band

1шт.

10

90-3521T1

SUPPORT

MOUNT - support, exhaust tube

1шт.

11

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

2шт.

12

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

WASHER - flat, 3/8 x 1 x 1/16 inch

4шт.

13

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

7шт.

14

32-323

STIRRUP

SADDLE - clamp, U-bolt

1шт.

15

32-322

U-BOLT,3/8" - 16 x 6.62"

CLAMP - U-bolt, exhaust support

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

19

19-117

LOCK WASHER,3/8"

3/8"

3шт.

24

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

2шт.

25

31-2409

HOSE,2.00" ID

Aspirator Tube to Muffler 2.00" ID

1шт.

26

90-2921T1

TUBE,2 mm OD

- aspirator

1шт.

27

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

Clamp, Aspirator tube 5/16"-18 x 2 5/16" x 3"

1шт.

28

19-106

WASHER,5/16", SAE

- flat, 5/16 x 7/8 x 1/16 inch

2шт.

29

19-508

LOCK NUT

- hex, lock, 5/16 inch NC

2шт.
