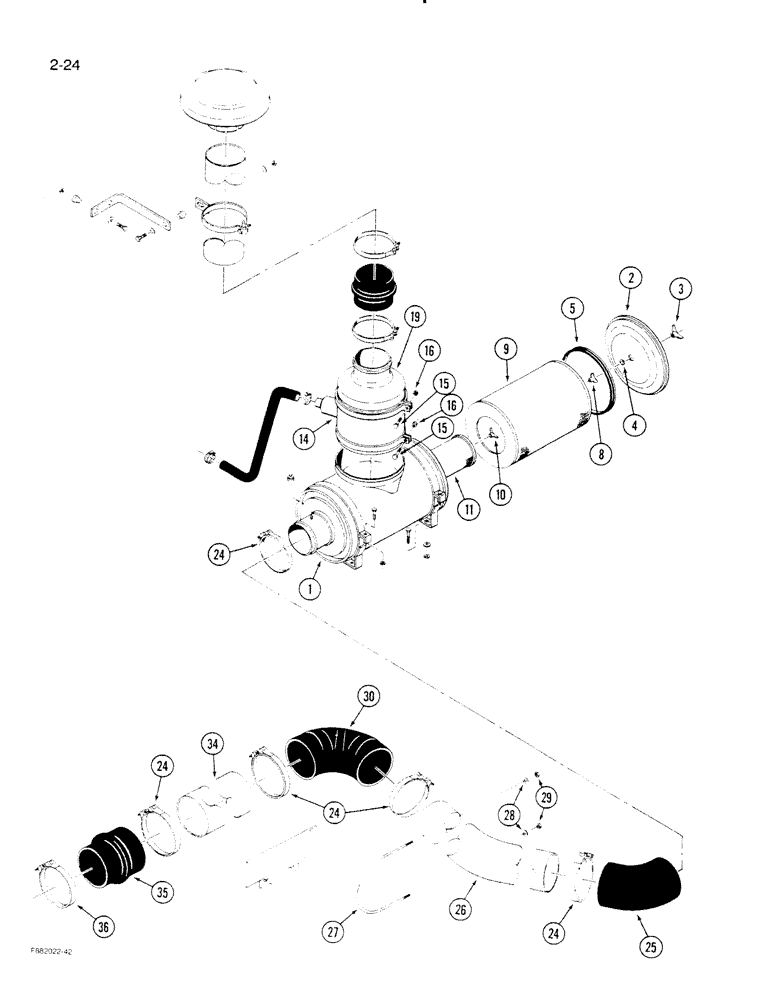

Запчасти Case IH STEIGER (2-24) - AIR INDUCTION SYSTEM (02) - ENGINE

90-3845T91

AIR CLEANER

ASSEMBLY - engine, Includes Ref: 1-19

1шт.

90-4206T91

AIR CLEANER

ASSEMBLY - body

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner housing

1шт.

90-4205T91

COVER

ASSEMBLY - air cleaner, Includes Ref: 2-5

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - air cleaner

1шт.

3

90-4230T1

NUT

- wing, cover

1шт.

4

90-4231T1

CLIP,ELECTRICAL

RETAINER - wing nut

1шт.

5

90-4232T1

GASKET

- cover to air cleaner body

1шт.

8

45-218

NUT

- wing, primary element

1шт.

9

90-4203S1

AIR FILTER

ELEMENT - primary (500 hour change interval)

1шт.

9

90-4203T1

ELEMENT

- primary (1000 hour change interval)

1шт.

10

7-1006

NUT

- wing, secondary element

1шт.

11

90-4204T1

AIR CLEANER

ELEMENT - secondary

1шт.

14

90-4207T1

PRECLEANER

ASSEMBLY - engine, Includes Ref: 15, 16

1шт.

15

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

19

60-4208T1

SPACER

ADAPTER - intake reducer

1шт.

24

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

- hose, 6-1/4 to 6-9/16 inch

5шт.

25

90-6892T1

ELBOW

- 70 degree, 6 inch

1шт.

26

90-6893T1

TUBE,6 mm OD x 41.96, 11.03 mm L

- air induction

1шт.

27

44-13

U-BOLT,5/16" - 18 x 7.29"

BOLT - U, tube mounting

1шт.

28

19-106

WASHER,5/16", SAE

- flat, 5/16 x 7/8 x 1/16 inch

2шт.

29

19-508

LOCK NUT

- hex, lock, 5/16 inch NC

2шт.

30

9-22

ELBOW

- 90 degree, 6 inch

1шт.

34

90-6895T1

AIR INTAKE TUBE,6" OD x 15.25" L

TUBE - air induction, 855 engine, 6 x 15-1/4 inch

1шт.

34

90-6891T1

TUBE,6" OD x 12.5" L

- air induction, 3406 engine, 6 x 12-1/2 inch

1шт.

35

9-76

HOSE,6.00" ID x 6.00"

Coupling, 855 Engine 6.00" ID x 6.00"

1шт.

35

9-17

ADAPTER

HOSE - coupling, 3406 engine

1шт.

36

32-133

CLAMP,#156, 5.75"-6.06", T-Bolt

- hose, 5-3/4 to 6 inch

1шт.

36

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

- hose, 6-1/4 to 6-9/16 inch

1шт.
