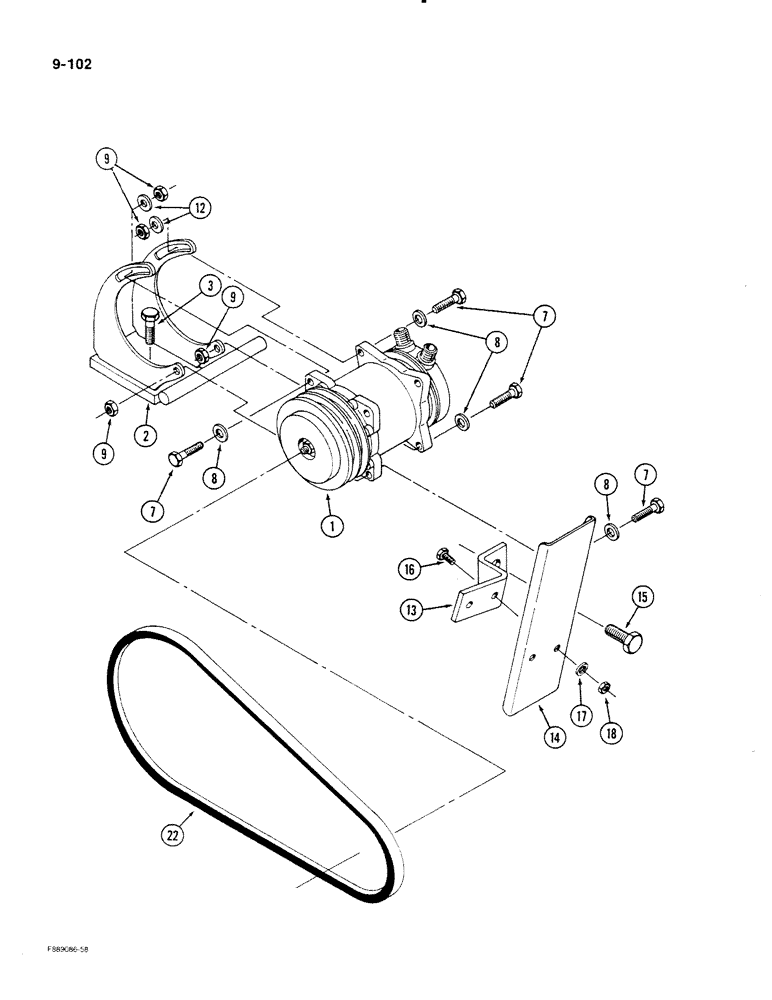

Запчасти Case IH STEIGER (9-102) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE, 855 ENGINE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Figure: 9-106)

1шт.

2

55-209T1

SUPPORT

MOUNT - compressor

1шт.

3

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

2шт.

7

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

BOLT - hex, M10 x 1.5 x 34 mm

4шт.

8

19-860

WASHER

- flat, hardened

4шт.

9

19-455

NUT

- hex, M10 x 1.5 mm

4шт.

12

25846R1

WASHER

- flat, 7/16 x 1-1/4 x 5/64 inch

2шт.

13

90-6871T1

SUPPORT

BRACKET - mounting, shield

1шт.

14

90-6872T1

SHIELD

- compressor

1шт.

15

19-674

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

- hex, 5/8 NC x 3/4 inch

1шт.

16

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

17

19-106

WASHER,5/16", SAE

- flat, 5/16 x 7/8 x 1/16 inch

2шт.

18

19-508

LOCK NUT

- hex, lock, 5/16 inch NC

2шт.

22

1-6864

V-BELT,0.53" W x 39.25" L

Compressor 0.53" W x 39.25" L

1шт.
