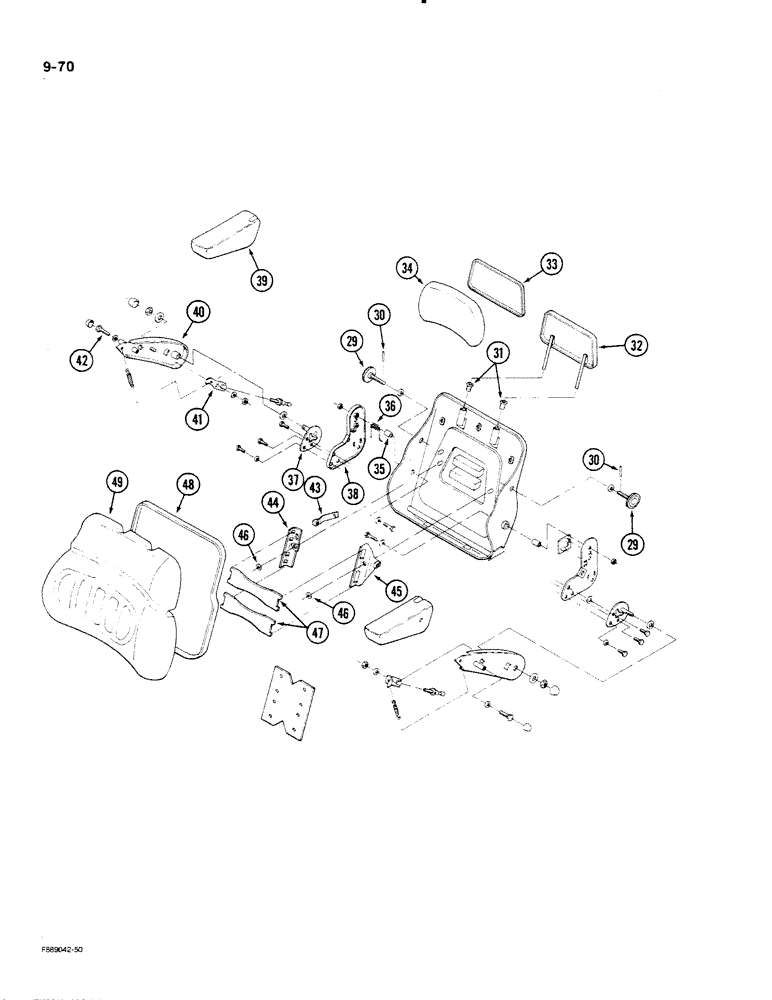

Запчасти Case IH STEIGER (9-070) - SEAT, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS

29

60-3200T1

KNOB

- lumbar support (Continued from previous page)

2шт.

30

40-1176

PIN

- spring, M3 x 20 mm

2шт.

31

60-1669T1

BUSHING

- headrest support

2шт.

32

60-1672T1

SUPPORT

- backrest extension

1шт.

33

60-1642T1

SUPPORT

EXTRUSION - plastic

1шт.

34

60-5952T1

CUSHION

- headrest, gray cloth upholstery

1шт.

35

60-4850T1

SPACER

- armrest support mount

1шт.

36

60-4849T1

SPRING

- support mount

1шт.

37

60-3257T1

PLATE

- bearing, right

1шт.

38

60-4851T1

MOUNTING PARTS

MOUNT - armrest support, right

1шт.

39

60-3199T1

ARMREST

- right

1шт.

40

60-3195T1

SUPPORT

- armrest, right

1шт.

41

60-3196T1

RETAINER

- armrest adjustment, right

1шт.

42

40-1069

CAPSCREW,Hex, M10 x 1.5 x 45mm, Gr 8.8

BOLT - hex, M10 x 45 mm

1шт.

43

60-1695T1

BEARING

1шт.

44

60-1696T1

BRACKET

- angled

1шт.

45

60-1698T1

BRACKET

BEARING

1шт.

46

60-1697T1

RING, SNAP

RING - retainer

2шт.

47

60-1699T1

PLATE

- spring

2шт.

48

60-1641T1

SUPPORT

EXTRUSION - plastic

1шт.

49

60-5950T1

CUSHION

- seat back, gray cloth upholstery

1шт.
