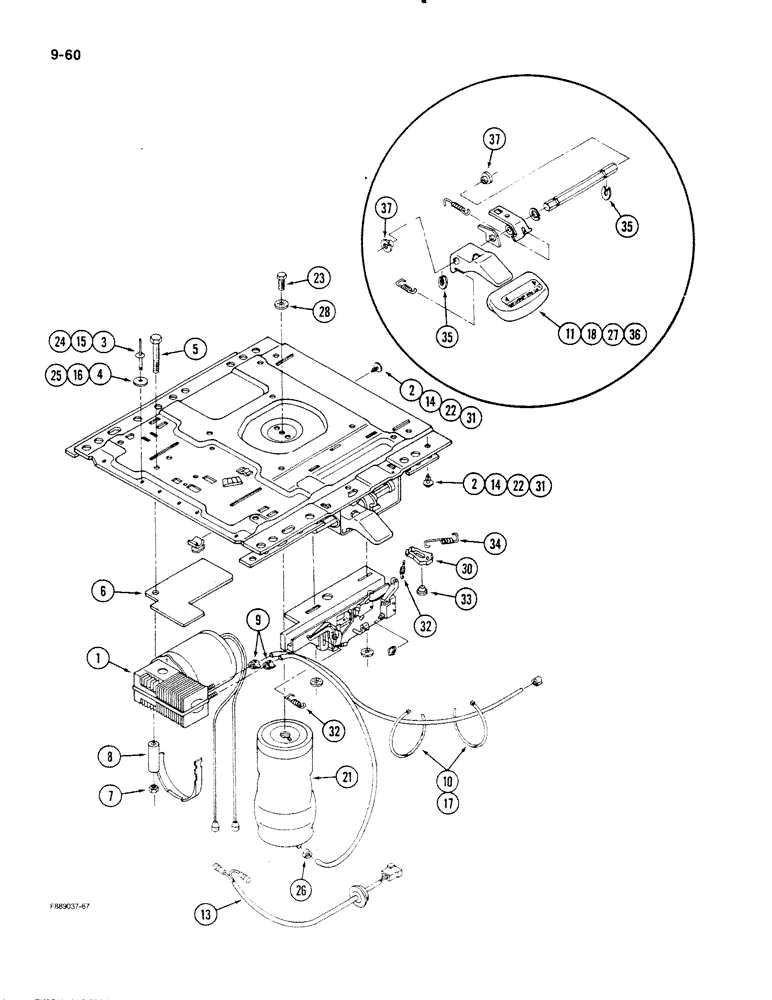

Запчасти Case IH STEIGER (9-060) - SEAT, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
60-5949T91
SEAT
ASSEMBLY - air suspension, gray cloth upholstery (Continued from previous page)
1шт.
60-4896T91
COMPRESSOR
ASSEMBLY - air suspension, Includes Ref: 1-11
1шт.
1
NSS
NOT SOLD SEPARAT
COMPRESSOR - air suspension
1шт.
2
60-1613T1
FASTENER
- snap, boot
12шт.
3
1-2503
RIVET,Pop, .146" x .425"
- pop, 5/32 x 1/4 inch
1шт.
4
19-699
WASHER,3/16"
- flat, 3/16 x 1/2 x 3/64 inch
1шт.
5
40-1234
CAPSCREW,Hex, M6 x 75mm, Gr 8.8
BOLT - hex, M6 x 75 mm
1шт.
6
60-4880T1
SEAL, RUBBER
FOAM - compressor mounting
1шт.
7
40-1235
LOCK NUT
NUT - lock, M8
1шт.
8
60-4897T1
BRACKET
- compressor mounting
1шт.
9
60-4895T1
CLAMP
- hose
2шт.
10
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP - nylon tie
2шт.
11
60-4884T1
HANDLE
- raise and lower
1шт.
60-4909T91
HARNESS
ASSEMBLY - compressor, Includes Ref: 13-18
1шт.
13
NSS
NOT SOLD SEPARAT
HARNESS - compressor
1шт.
14
60-1613T1
FASTENER
- snap, boot
12шт.
15
1-2503
RIVET,Pop, .146" x .425"
- pop, 5/32 x 1/4 inch
1шт.
16
19-699
WASHER,3/16"
- flat, 3/16 x 1/2 x 3/64 inch
1шт.
17
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP - nylon, tie
2шт.
18
60-4884T1
HANDLE
- raise and lower
1шт.
60-4900T91
SPRING
ASSEMBLY - air suspension, Includes Ref: 21-28
1шт.
21
NSS
NOT SOLD SEPARAT
SPRING - air suspension
1шт.
22
60-1613T1
FASTENER
- snap, boot
12шт.
23
40-1231
BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8
BOLT - hex, M8 x 16 mm
1шт.
24
1-2503
RIVET,Pop, .146" x .425"
- pop, 5/32 x 1/4 inch
1шт.
25
19-699
WASHER,3/16"
- flat, 3/16 x 1/2 x 3/64 inch
1шт.
26
60-4895T1
CLAMP
- hose
1шт.
27
60-4884T1
HANDLE
- raise and lower
1шт.
28
40-1154
LOCK WASHER
- lock, M8
1шт.
60-4886T91
STOP
ASSEMBLY, Includes Ref: 30-37
1шт.
30
NSS
NOT SOLD SEPARAT
STOP - plastic
1шт.
31
60-1613T1
FASTENER
- snap, boot
12шт.
32
60-4883T1
SPRING
- carrier return
2шт.
33
NSS
NOT SOLD SEPARAT
BUSHING - stop
1шт.
34
60-4889T1
SPRING
- stop
1шт.
35
40-1157
RING
- retaining, M7
2шт.
36
60-4884T1
HANDLE
- raise and lower
1шт.
37
60-4887T1
FLANGED BEARING
BEARING, Flanged
2шт.
Выбрано товаров: 38
