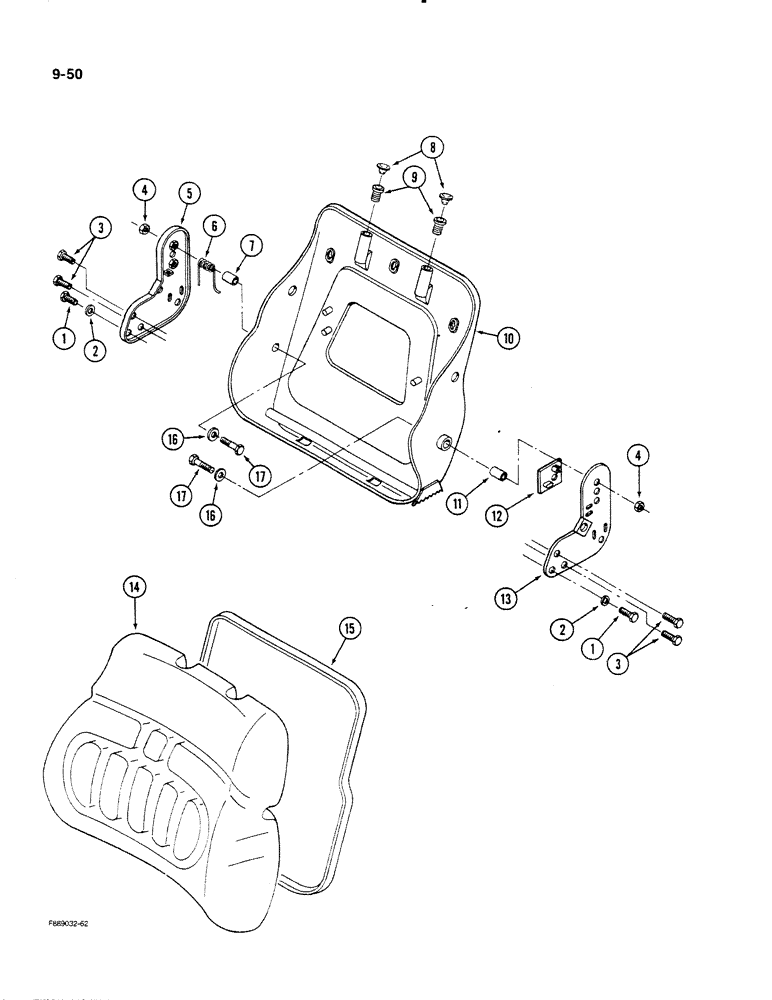

Запчасти Case IH STEIGER (9-050) - SEAT, MECHANICAL SUSPENSION, ROPS (09) - CHASSIS/ATTACHMENTS

60-5802T91

SEAT ASSY.

SEAT ASSEMBLY - mechanical suspension, vinyl upholstery (Continued from previous page)

1шт.

1

19-214

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch

2шт.

2

19-193

LOCK WASHER,Ext Tooth, 7/16"

WASHER - lock, 7/16 inch

2шт.

3

60-4847T1

SCREW

BOLT - hex, M8 x 35 mm

4шт.

4

60-4854T1

SPACER

NUT - M8

2шт.

5

60-4851T1

MOUNTING PARTS

MOUNT - seat back to seat pan, right

1шт.

6

60-4849T1

SPRING

- seat back return

1шт.

7

60-4850T1

SPACER

- right mount

1шт.

8

60-5619T1

PLUG

- headrest mounting hole

2шт.

9

60-1669T1

BUSHING

- headrest mounting hole

2шт.

10

60-5620T1

BACKREST

PAN - backrest

1шт.

11

60-4852T1

SPACER

- left mount

1шт.

12

60-4859T1

SPACER

1шт.

13

60-4858T1

MOUNTING PARTS

MOUNT - seat back to seat pan, left

1шт.

14

33-1393T1

CUSHION

- backrest, vinyl upholstery

1шт.

15

60-1641T1

SUPPORT

EXTRUSION - plastic

1шт.

16

40-1007

WASHER

- flat, M8

2шт.

17

40-1150

CAPSCREW,Hex, M8 x 1.25 x 30mm, Gr 8.8

BOLT - hex, M8 x 30 mm

2шт.
