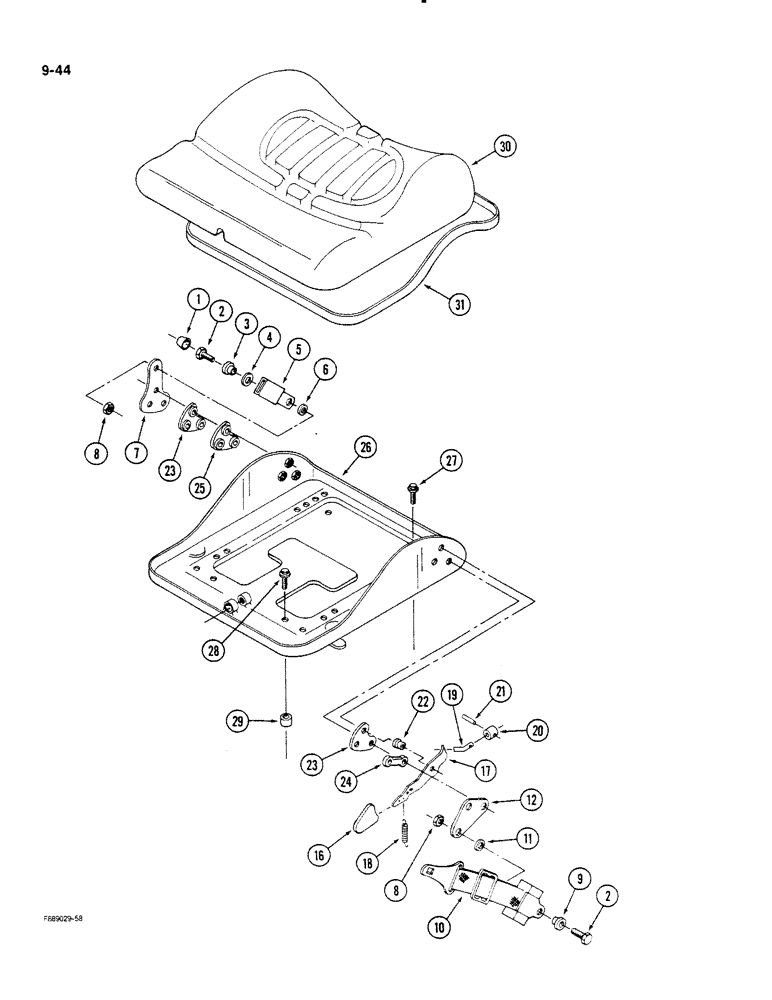

Запчасти Case IH STEIGER (9-044) - SEAT, MECHANICAL SUSPENSION, ROPS (09) - CHASSIS/ATTACHMENTS

60-5802T91

SEAT ASSY.

SEAT ASSEMBLY - mechanical suspension, vinyl upholstery (Continued from previous page)

1шт.

60-4869T91

SAFETY BELT

SEAT BELT - safety, Includes Ref: 1-12

1шт.

1

60-1656T1

COVER

- protective

1шт.

2

60-1665T1

CAPSCREW,Pan, #10 - 32 x .375"

BOLT - hex, 7/16 NF x 1 inch

2шт.

3

60-1666T1

BUSHING

- buckle swivel

1шт.

4

60-1662T1

WASHER

- spring, M15

1шт.

5

60-1658T1

BUCKLE

- safety belt

1шт.

6

60-1667T1

WASHER

- flat, M11.5

1шт.

7

60-1668T1

BRACKET

- safety belt mounting

1шт.

8

60-1661T1

NUT

- 7/16 inch NF

2шт.

9

60-3197T1

BUSHING

- strap swivel

1шт.

10

60-4872T1

STRAP

- safety belt

1шт.

11

40-1159

WASHER

- flat, M13

1шт.

12

60-4871T1

ANCHOR

MOUNT - safety belt

1шт.

16

60-4861T1

HANDLE

- backrest reclining lever

1шт.

17

60-4856T1

LEVER

- backrest reclining

1шт.

18

60-4853T1

SPRING

- lever return

1шт.

19

60-4857T1

ROD

- lever stop

1шт.

20

60-4841T1

STOP

- reclining lever

1шт.

21

40-1232

PIN

- spring, M4 x 14 mm

1шт.

22

60-4855T1

BUSHING

- lever stop

1шт.

23

60-1638T1

LARGE PLATE

SPACER - safety belt mount

2шт.

24

60-4854T1

SPACER

- safety belt mount

1шт.

25

60-4844T1

PLATE

SPACER - safety belt bracket

1шт.

26

60-4865T1

PAN

- seat bottom

1шт.

27

60-4843T1

SCREW

BOLT - hex, M8 x 16 mm

2шт.

28

60-1628T1

BOLT

- hex, M8 x 20 mm

2шт.

29

60-4346T1

KNOB

SPACER - seat pan mounting

2шт.

30

60-5947T1

CUSHION

- seat bottom, vinyl upholstery

1шт.

31

60-1640T1

SUPPORT

EXTRUSION - plastic

1шт.
