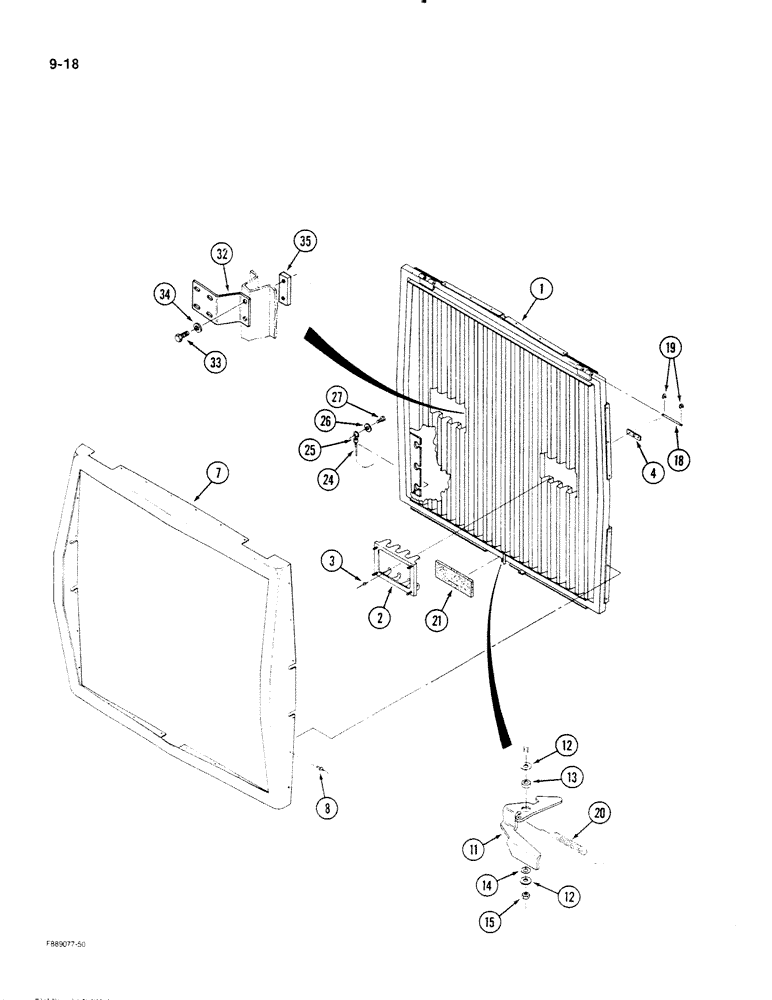

Запчасти Case IH STEIGER (9-018) - GRILLE (09) - CHASSIS/ATTACHMENTS

70-5221T91

GRILLE

ASSEMBLY - front screen (Order components), Includes Ref: 1-8

1шт.

1

70-5175T1

SIEVE

GRILLE - front screen

1шт.

2

70-4484T1

SUPPORT

BRACKET - lamp mounting

2шт.

3

1-2503

RIVET,Pop, .146" x .425"

- pop, 5/32 x 1/4 inch

18шт.

4

70-2507T2

LARGE PLATE

PLATE - clamp mounting

3шт.

7

70-5046T1

FRAME

GRILLE - shell

1шт.

8

19-127

RIVET

- pop, 3/16 x 1/4 inch

26шт.

11

70-5273T1

LATCH

- grille opening

1шт.

12

19-1059

WASHER

- flat, hardened, 3/8 x 1-1/4 x 7/64 inch

2шт.

13

70-5177T1

SPACER

- pivot, latch

1шт.

14

19-6266T1

WAVE WASHER

- wave, 3/8 inch

1шт.

15

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

1шт.

18

70-1996T2

PIN

ROD - hinge, grille

2шт.

19

70-2600T1

RING, SNAP

RING - snap

4шт.

20

11-8

SPRING

- latch return

1шт.

21

70-5258T1

SEAL

FOAM - seal, grille latch

1шт.

24

60-5882T1

ROPE

- wire, hood tilt actuating (Order 70-5252T1 and, Serial Range: cut-length)

1шт.

25

70-5269T1

FERRULE

- wire rope

1шт.

26

495-21031

WASHER,1/4"

- flat, 1/4 x 47/64 x 1/16 inch

1шт.

27

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, flanged hex, 1/4 NC x 3/4 inch

1шт.

32

70-2978T1

SUPPORT

BRACKET - left, medallion

1шт.

32

70-2977T1

SUPPORT

BRACKET - right, medallion

1шт.

33

9419000

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

SCREW - machine, hex, 1/4 NC x 1/2 inch

4шт.

34

19-6047

WASHER

- flat, 1/4 x 1/2 x 1/16 inch

4шт.

35

70-2230T1

LARGE PLATE

PLATE - medallion bracket

2шт.
