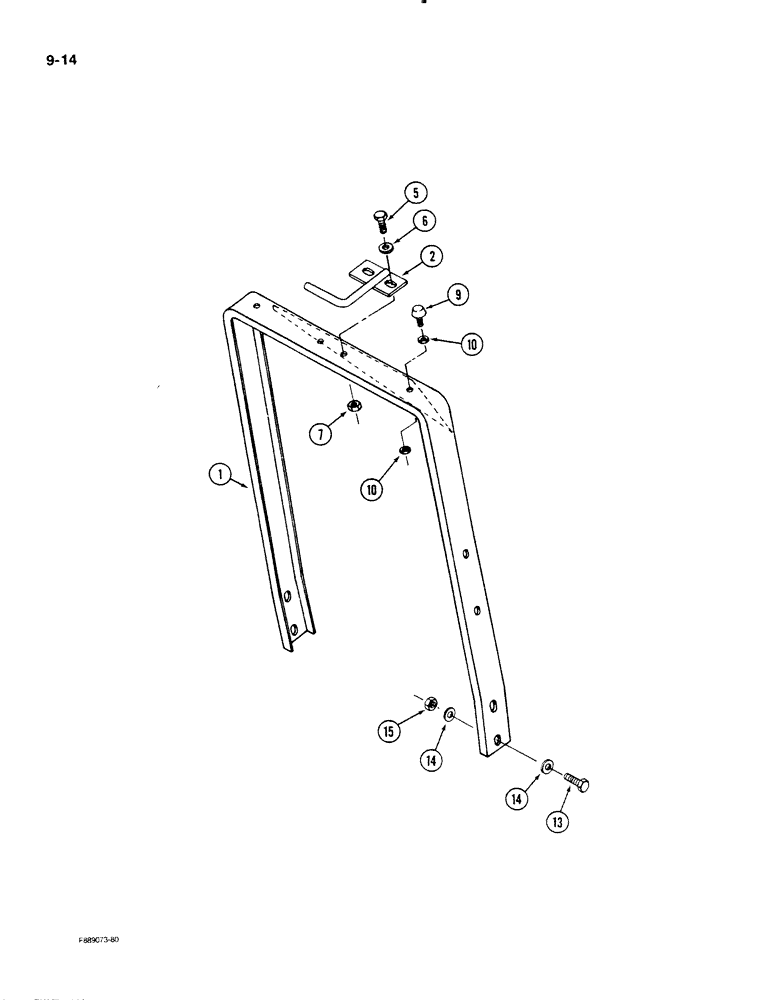

Запчасти Case IH STEIGER (9-014) - HOOD SUPPORT (09) - CHASSIS/ATTACHMENTS

1

70-5029T1

SUPPORT

- hood

1шт.

2

70-5241T1

BAR

ROD - hood centering and retaining

1шт.

5

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex, 3/8 NC x 1 inch

2шт.

6

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

2шт.

7

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

2шт.

9

70-2816T1

BUMPER

- hood adjustment, rubber

2шт.

10

19-236

JAM NUT,5/16" - 24, Gr 5

- hex, jam, 5/16 inch NF

4шт.

13

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

14

19-109

WASHER,1/2"

- flat, 1/2 x 1-3/8 x 7/64 inch

8шт.

15

19-82

LOCK NUT

- hex, 1/2 inch NC

4шт.
