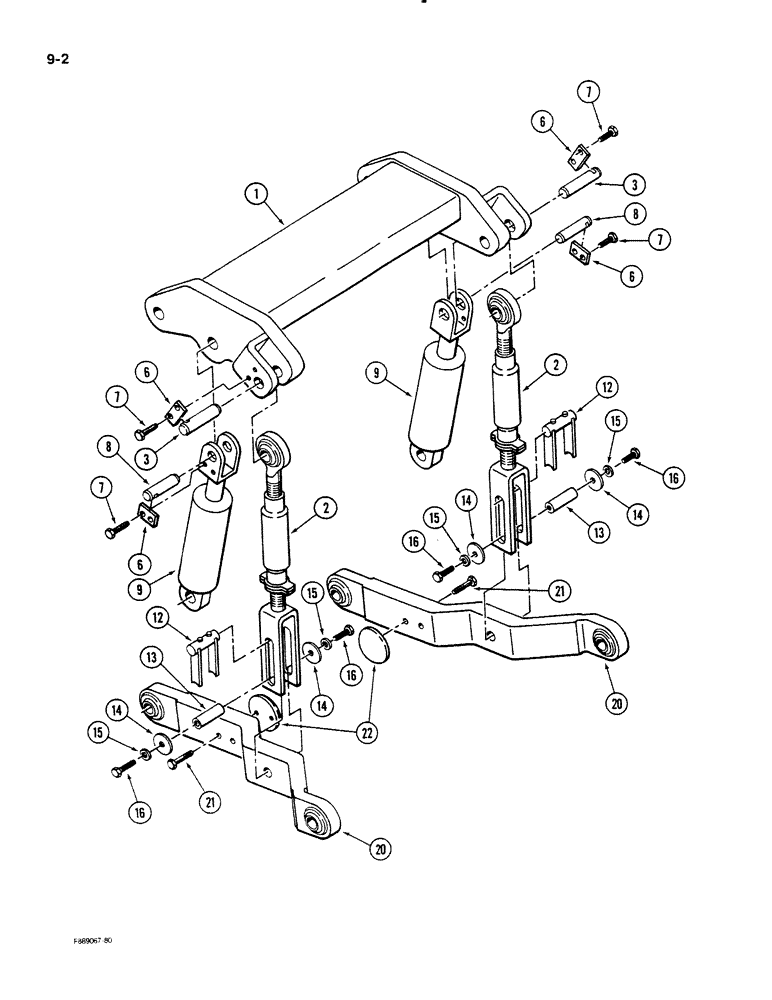

Запчасти Case IH STEIGER (9-002) - HITCH ROCKERSHAFT (09) - CHASSIS/ATTACHMENTS

35-1723T91

KIT - three point hitch (Machinery item)

1шт.

1

REF

INSTRUCTION

ROCKERSHAFT ASSEMBLY - hitch (See Figure: 9-6)

1шт.

2

REF

INSTRUCTION

LINK ASSEMBLY - lift (See Figure: 9-6)

2шт.

3

2-3646T1

PIN

- lift link, top

2шт.

6

70-3082T2

LARGE PLATE

BLOCK - pin retainer

4шт.

7

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

8шт.

8

2-3645T1

PIN

- cylinder, top

2шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift (See Figure: 8-34)

2шт.

12

REF

INSTRUCTION

BLOCK - clevis locking (See Figure: 9-6)

2шт.

13

70-2059T1

PIN

- lift link, lower

2шт.

14

19-701

WASHER,1 1/4"

- flat, 1-1/4 x 3 x 5/32 inch

4шт.

15

195-108

WASHER,5/8"

- flat, 5/8 x 1-3/4 x 9/64 inch

4шт.

16

19-674

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

- hex, 5/8 NC x 3/4 inch

4шт.

20

70-1923T2

ROCKER ARM

ARM - lower link draft

2шт.

21

19-792

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, Grade 8

4шт.

22

2-2516T2

LARGE PLATE

PLATE - wear

2шт.
