(8-40) - HYDRAULIC TUBE JOINT

Запчасти Case IH STEIGER (8-40) - HYDRAULIC TUBE JOINT (08) - HYDRAULICS

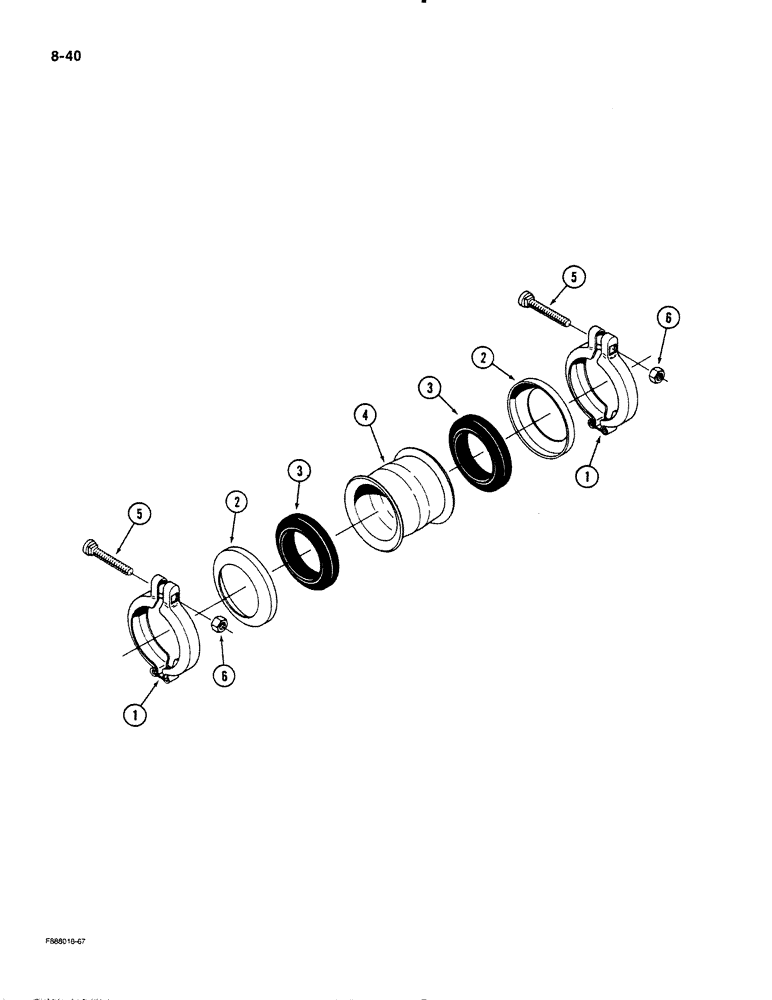

Схема запчастей Case IH STEIGER - (8-40) - HYDRAULIC TUBE JOINT (08) - HYDRAULICS
1
2
5
6
6
2
5
1
3
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50-2525T91

TUBE

JOINT ASSEMBLY - tube, 1-1/2 inch, Includes Ref: 1-6

1шт.

1

50-2859T1

COUPLING

- tube joint

2шт.

2

50-2860T1

GASKET

RETAINER - gasket

2шт.

3

50-2861T1

GASKET

- sealing, joint

2шт.

4

NSS

NOT SOLD SEPARAT

SLEEVE - tube joint

1шт.

5

50-2855T1

CAPSCREW,5/16" - 18 x 2"

BOLT - cartridge

2шт.

6

231-1445

NUT,5/16"-18, GB

NUT - hex, lock, 5/16 inch NC

2шт.
