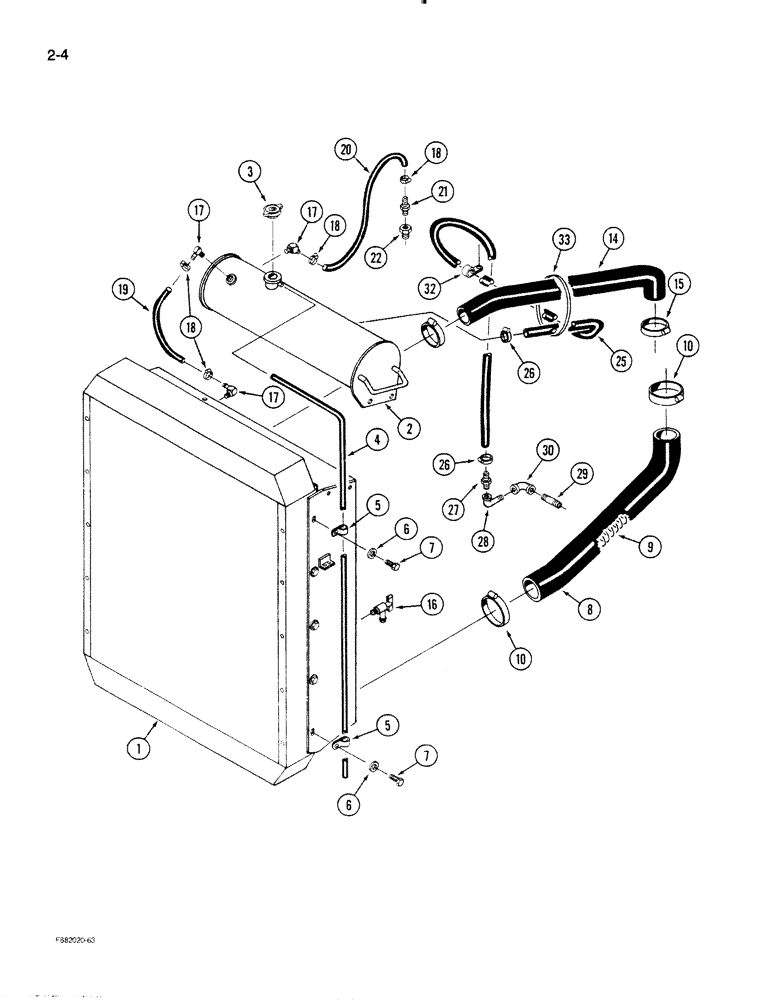

Запчасти Case IH STEIGER (2-04) - RADIATOR AND ATTACHING PARTS, 3406 ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
90-6781T1
RADIATOR
ASSEMBLY - cooling system
1шт.
2
90-6817T1
TANK
- radiator fill
1шт.
3
80889R91
COVER
CAP - radiator
1шт.
4
31-1260
HOSE,0.25" ID x 57.00"
Overflow 0.25" ID x 57.00"
1шт.
5
31-2173
CLIP
CLAMP - hose
2шт.
6
19-105
WASHER,1/4", SAE
- flat, 1/4 x 47/64 x 1/16 inch
2шт.
7
19-417
BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd
- hex, 1/4 NC x 1/2 inch
2шт.
8
90-6823T1
RADIATOR HOSE,3.00" ID x 22.29", SAE 20R4
Lower 3.00" ID x 22.29", SAE 20R4
1шт.
9
90-2289T1
SPRING
- hose
1шт.
10
32-22
HOSE CLAMP,#52, 2.81/3.75 Type F Worm
CLAMP - hose, 2-13/16 to 3-3/4 inch
2шт.
14
90-6824T1
RADIATOR HOSE,2.50" ID x 21.95", SAE 20R4
Upper 2.50" ID x 21.95", SAE 20R4
1шт.
15
32-24
HOSE CLAMP,#40, 2.06/3.00 Type F Worm
CLAMP - hose, 2 to 3 inch
2шт.
16
31-159
COCK, DRAIN
VALVE - drain, radiator, 90 degree
1шт.
17
31-2737
ELBOW
CONNECTOR - 90 degree, 1/8 NPT x 1/4 inch
2шт.
18
32-59
HOSE CLAMP,#4, 0.25/0.62 Type M Worm
CLAMP - hose, 7/32 x 5/8 inch
4шт.
19
31-2781
HOSE,6.4 mm ID x 146.10 mm
Tank to Radiator 6.4 mm ID x 146.10 mm
1шт.
20
31-2792
HOSE
RADIATOR HOSE - Tank to Engine, 1/4 x 23 inch
1шт.
21
31-1186
FITTING
CONNECTOR - straight, 1/4 NPT x 1/4 inch
1шт.
22
1-2349
REDUCER,1/2"-14 Male NPTF x 1/4"-18 Female NPTF
CONNECTOR - straight, 1/4 NPT x 1/2 inch NPT
1шт.
25
31-2793
HOSE,1.00" ID x 43.00"
Tank to Engine 1.00" ID x 43.00"
1шт.
26
32-27
HOSE CLAMP,#20, 0.81/1.75 Type F Worm
CLAMP - hose, 13/16 x 1-3/4 inch
2шт.
27
31-318
HOSE
CONNECTOR - straight, 3/4 NPT x 1 inch
1шт.
28
221-1415
ELBOW,90 Degree, 3/4"-14, NPT
CONNECTOR - 90 degree, 3/4 NPT x 3/4 inch NPT
1шт.
29
221-217
PIPE,Nipple, 3/4" NPT x 3"
CONNECTOR - straight, 3/4 NPT x 3/4 NPT x 3 inch
1шт.
30
31-44
ELBOW
CONNECTOR - 90 degree, 3/4 NPT x 3/4 inch NPT
1шт.
32
1-2191
MOUNTING CLIP
CLAMP - hose
1шт.
33
19-135
CABLE TIE
STRAP - nylon
1шт.
Выбрано товаров: 27
