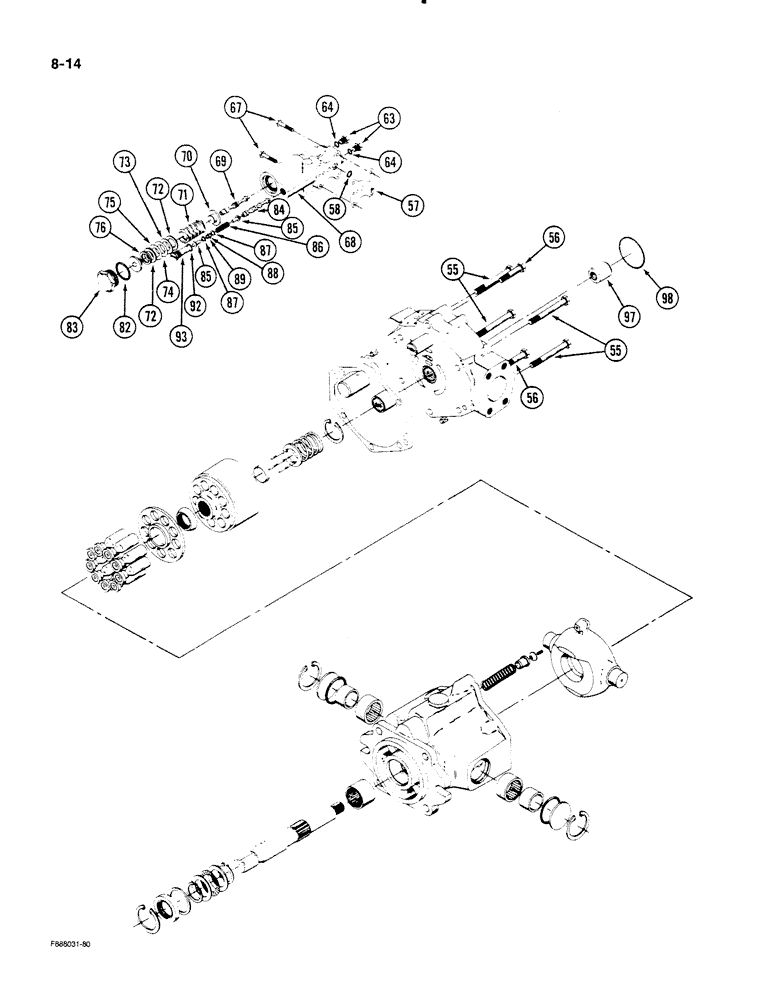

Запчасти Case IH STEIGER (8-14) - HYDRAULIC PISTON PUMP ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
50-1452T92
PUMP
ASSEMBLY - piston (Continued from previous page), Includes Ref: 55-98
1шт.
55
19-734
BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5
- hex, 7/16 NC x 3-1/4 inch
4шт.
56
19-35
BOLT,7/16" - 14 x 2", Gr 5
- hex, 7/16 NC x 2 inch
2шт.
57
50-1803T1
GASKET
compensator
1шт.
Part of Seal Kit, 50-1802T1.
1шт.
58
50-1804T1
O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro
seal, compensator
1шт.
Part of Seal Kit, 50-1802T1.
1шт.
50-1805T91
EQUALIZER
COMPENSATOR ASSEMBLY - pressure flow, Includes Ref: 63-93
1шт.
63
50-1806T1
PLUG
- hex, O-ring
2шт.
64
50-1823T1
O-RING
plug
2шт.
Part of Seal Kit, 50-1802T1.
1шт.
67
19-1543
CAPSCREW,Flg, 1/4" - 20 x 1 1/4", Gr 8
BOLT - 12 point, 1/4 NC x 1-1/4 inch, Grade 8
4шт.
68
NSS
NOT SOLD SEPARAT
BODY - compensator
1шт.
69
NSS
NOT SOLD SEPARAT
SPOOL - pressure
1шт.
79
50-1807T1
CAP
- spring
1шт.
71
50-1808T1
SPRING
- spool
1шт.
72
50-1809T1
WASHER
SHIM - flat, 0.030 inch
1шт.
73
50-1810T1
WASHER
SHIM - flat, 0.005 inch
1шт.
74
50-1811T1
WASHER
SHIM - flat, 0.010 inch
1шт.
75
50-1812T1
WASHER
SHIM - flat, 0.015 inch
1шт.
76
50-1813T1
WASHER
SHIM - flat, 0.059 inch
1шт.
82
50-1814T1
O-RING
plug
1шт.
Part of Seal Kit, 50-1802T1.
1шт.
83
9672438
PLUG,7/16" - 20 ORB
Adjustment end Hex Hd, 7/16"-20 ORB
1шт.
84
NSS
NOT SOLD SEPARAT
SPOOL - flow
1шт.
85
50-1816T1
SPRING
PIVOT - spring
2шт.
86
50-1817T1
SPRING
- spool
1шт.
87
H220798
SHIM,.035" Thk
Washer - flat .035" Thk
2шт.
88
50-1819T1
WASHER
- flat, 0.010 inch
1шт.
89
50-1820T1
WASHER
SHIM - flat, 0.005 inch
1шт.
92
50-1821T1
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
plug
1шт.
Part of Seal Kit, 50-1802T1.
1шт.
93
50-1822T1
PLUG
- spring pivot
1шт.
97
50-2964T1
COUPLING
COUPLER - drive, pump
1шт.
98
D61908
O-RING
- seal, pump
1шт.
50-1802T1
SEAL KIT
KIT Includes: Refs. 57, 58, 64, 82 and 92
1шт.
Выбрано товаров: 36
