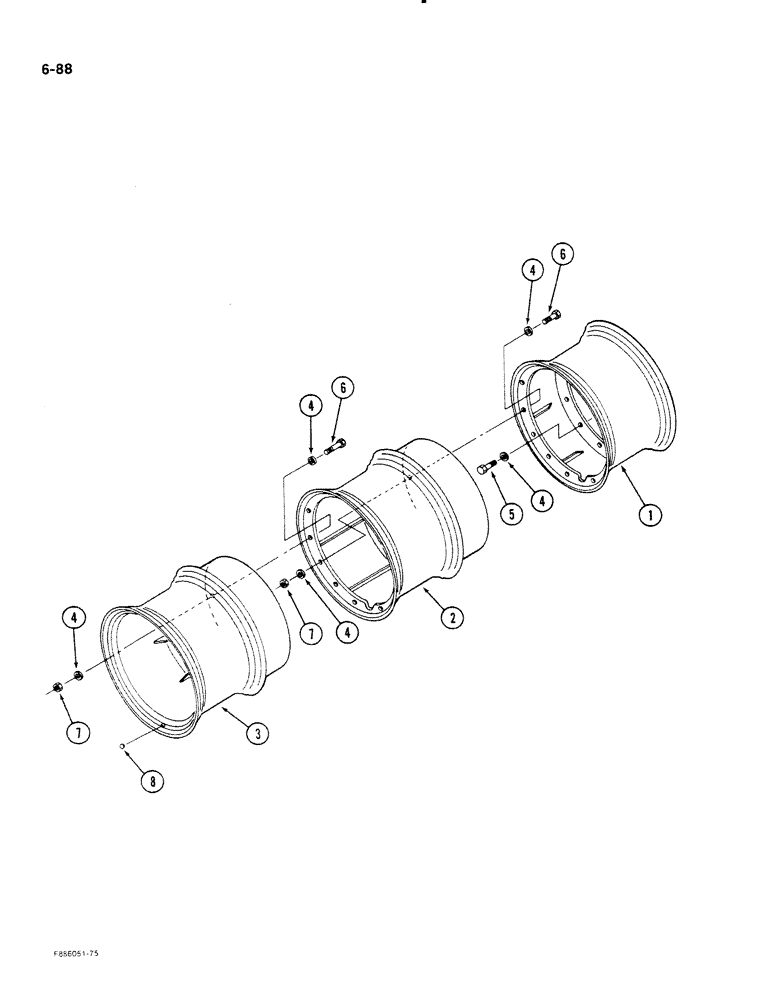

Запчасти Case IH STEIGER (6-88) - WHEELS, HUB BOLTED TRIPLES, K598.60/70 AXLE (06) - POWER TRAIN

1

30-1295T1

RIM

WHEEL - inner, 20.8 x 38 inch

4шт.

1

30-1337T1

RIM

WHEEL - inner, 20.8 x 42 inch

4шт.

2

30-1309T1

RIM

WHEEL - middle, 20.8 x 38 inch

4шт.

2

30-1347T1

RIM

WHEEL - middle, 20.8 x 42 inch

4шт.

3

30-1312T1

RIM

WHEEL - outer, 20.8 x 33 inch

4шт.

3

30-1348T1

RIM

WHEEL - outer, 20.8 x 42 inch

4шт.

4

19-2975

WASHER

- flat, hardened

232шт.

5

223470

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

40шт.

6

25738R1

BOLT,Hex, 7/8" - 9 x 3", Gr 8

- hex, 7/8 NC x 3 inch, Grade 8

192шт.

7

19-457

NUT,7/8"-9, G5

- hex, 7/8 inch NC

192шт.

8

22-521

PLUG

- hole

12шт.
