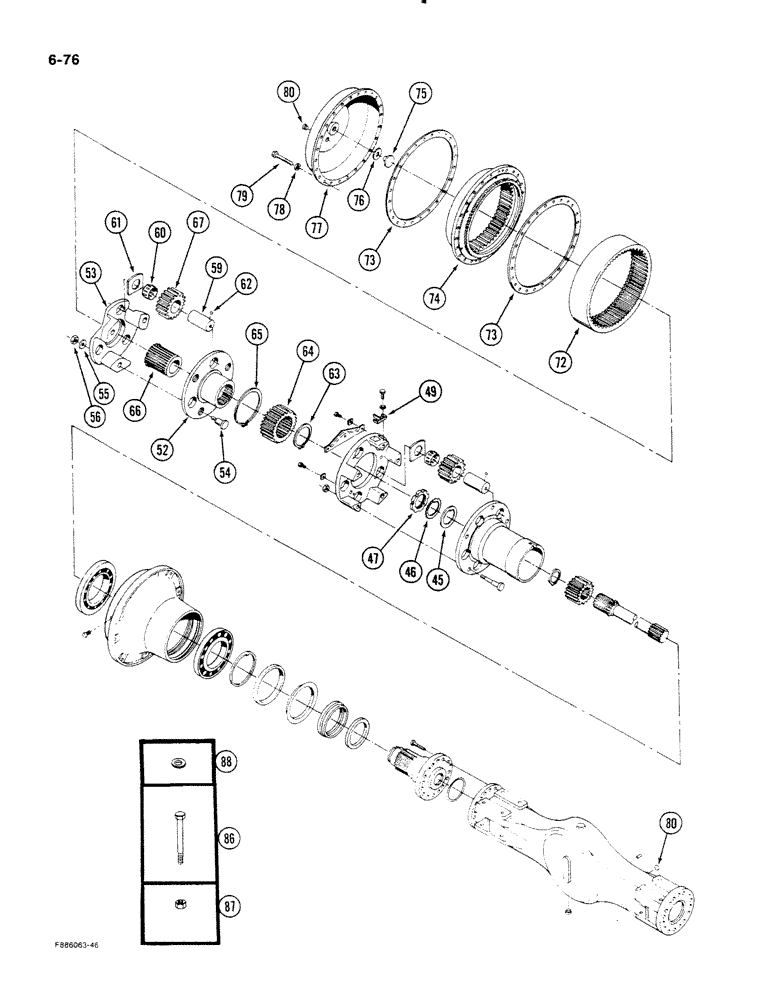

Запчасти Case IH STEIGER (6-76) - AXLE ASSEMBLY, HOUSING AND WHEEL END, K598.60/70 SERIES (06) - POWER TRAIN

90-6556T91

4WD AXLE ASSY

AXLE ASSEMBLY - front (Continued from previous page), Includes Ref: 45-80

1шт.

90-6557T91

AXLE HOUSING

AXLE ASSEMBLY - rear

1шт.

45

90-4497T1

DISC

DISK - spacer

2шт.

46

90-4496T1

LOCK WASHER

- lock, adjusting nut

2шт.

47

90-4495T1

NUT

- shaft end

2шт.

49

90-4532T1

LARGE PLATE

PLATE - oil

2шт.

90-4522T91

REDUCER

CARRIER ASSEMBLY - planetary, outer, Includes Ref: 52-80

2шт.

90-4523T91

REDUCER

CARRIER ASSEMBLY - planetary, Includes Ref: 52-56

2шт.

52

NSS

NOT SOLD SEPARAT

CARRIER - pinion, half

2шт.

53

NSS

NOT SOLD SEPARAT

CARRIER - pinion, half

2шт.

54

16-1608

SCREW,Hex Shldr

BOLT - shouldered

6шт.

55

16-1599

WASHER

- flat

6шт.

56

16-1598

NUT

- hex, M16 x 1.5

6шт.

59

90-2567T1

PIN

SHAFT - planetary pinion (With lubrication hole)

6шт.

60

1-8340

BEARING, NEEDLE

BEARING - needle roller (2 per gear)

12шт.

61

1-8341

SPACER

PLATE - spacer, wear

12шт.

62

16-1607

BALL

- steel

6шт.

63

16-1623

RING, SNAP

RING - snap

2шт.

64

16-1622

SUN GEAR

GEAR - sun

2шт.

65

90-4528T1

RING, SNAP

RING - snap

2шт.

66

90-4526T1

PINION

GEAR - sleeve

2шт.

67

90-4525T1

PINION

GEAR - pinion, idler, 26 tooth

6шт.

72

90-4529T1

GEAR, RING

GEAR - ring

2шт.

73

90-4413T1

GASKET

- (Order 1-1055, RTV sealant)

4шт.

74

90-4521T1

GEAR, RING

GEAR - double ring

2шт.

75

90-2555T1

LARGE PIN

PIN - support, axle shaft

2шт.

76

90-2554T1

SHIM

- support pin

1шт.

77

90-4520T1

COVER

- axle end

2шт.

78

16-1592

LOCK WASHER

- lock, M15

48шт.

79

40-1171

BOLT,Hex, M14 x 1.5 x 50mm, Gr 10.9

BOLT - hex, M14 x 1.5 x 50 mm, Grade 10.9

48шт.

80

90-2523T1

PLUG

- M24 x 1.5

3шт.

86

27022R1

BOLT,Hex, 1" - 8 x 10", Gr 8

- hex, 1 NC x 9-1/4 inch, Grade 8

16шт.

87

131-1221

LOCK NUT,1"-8, GC

NUT - lock, hex, 1 inch NC

16шт.

88

19-5739

WASHER

- flat, hardened, 1 x 2 x 5/32 inch

16шт.
