Запчасти Case IH STEIGER (6-54) - DRIVESHAFT ASSEMBLIES (06) - POWER TRAIN

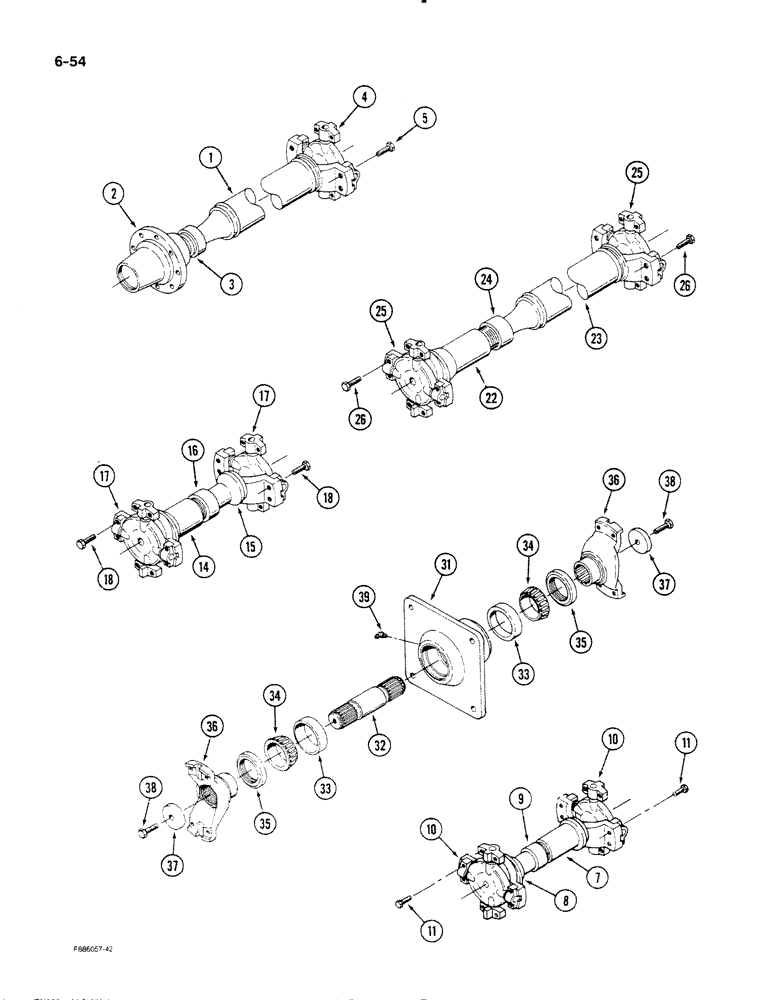

Схема запчастей Case IH STEIGER - (6-54) - DRIVESHAFT ASSEMBLIES (06) - POWER TRAIN
36
23
4
7
34
37
3
15
14
2
35
37
1
17
17
10
38
9
11
34
25
32
24
38
18
39
25
10
11
22
33
18
5
33
35
31
16
8
26
26
36

Артикул

Название

Примечание

Количество

90-6663T91

DRIVE SHAFT

DRIVESHAFT ASSEMBLY - input, engine to transmission, Includes Ref: 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - tube

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

3

2-3842T1

SEAL RETAINER

SEAL ASSEMBLY - shaft retainer

1шт.

4

A182458

UNIVERSAL JOINT

SPIDER ASSEMBLY - shaft, Includes Ref: 5

1шт.

5

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

4шт.

90-6664T91

DRIVE SHAFT

DRIVESHAFT ASSEMBLY - front, transmission to front axle, Includes Ref: 7-11

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT - tube

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

9

2-3842T1

SEAL RETAINER

SEAL ASSEMBLY - shaft retainer

1шт.

10

1-9994T2

BEARING ASSY

SPIDER ASSEMBLY - shaft, Includes Ref: 11

2шт.

11

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

8шт.

90-1902T92

DRIVE SHAFT

DRIVESHAFT ASSEMBLY - transmission to hanger bearing, Includes Ref: 14-18

1шт.

14

NSS

NOT SOLD SEPARAT

SHAFT - tube

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

16

2-3842T1

SEAL RETAINER

SEAL ASSEMBLY - shaft retainer

1шт.

17

1-9994T2

BEARING ASSY

SPIDER ASSEMBLY - shaft, Includes Ref: 18

2шт.

18

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

8шт.

90-1903T92

DRIVE SHAFT

DRIVESHAFT ASSEMBLY - hanger bearing to rear axle, Includes Ref: 22, 23

1шт.

22

NSS

NOT SOLD SEPARAT

SHAFT - tube

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

24

2-3842T1

SEAL RETAINER

SEAL ASSEMBLY - shaft retainer, Includes Ref: 25

1шт.

25

1-9994T2

BEARING ASSY

SPIDER ASSEMBLY - shaft, Includes Ref: 26

2шт.

26

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

8шт.

90-1863T91

BEARING ASSY

BEARING ASSEMBLY - hanger, Includes Ref: 31-39

1шт.

31

90-1929T1

HOUSING

- hanger bearing

1шт.

32

90-1930T1

SHAFT

- hanger bearing

1шт.

33

13363D

TAPERED BEARING

CUP - bearing

2шт.

34

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

CONE ASSEMBLY - bearing

2шт.

35

90-1934T2

SEAL

- shaft

2шт.

36

90-1489T1

YOKE

- shaft

2шт.

37

19-5733

WASHER

- flat, hardened

2шт.

38

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

- hex, 5/8 NC x 1-1/2 inch, Grade 8

2шт.

39

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 45º, 1/8" NPT x 7/8" lg

1шт.

Выбрано товаров: 34
