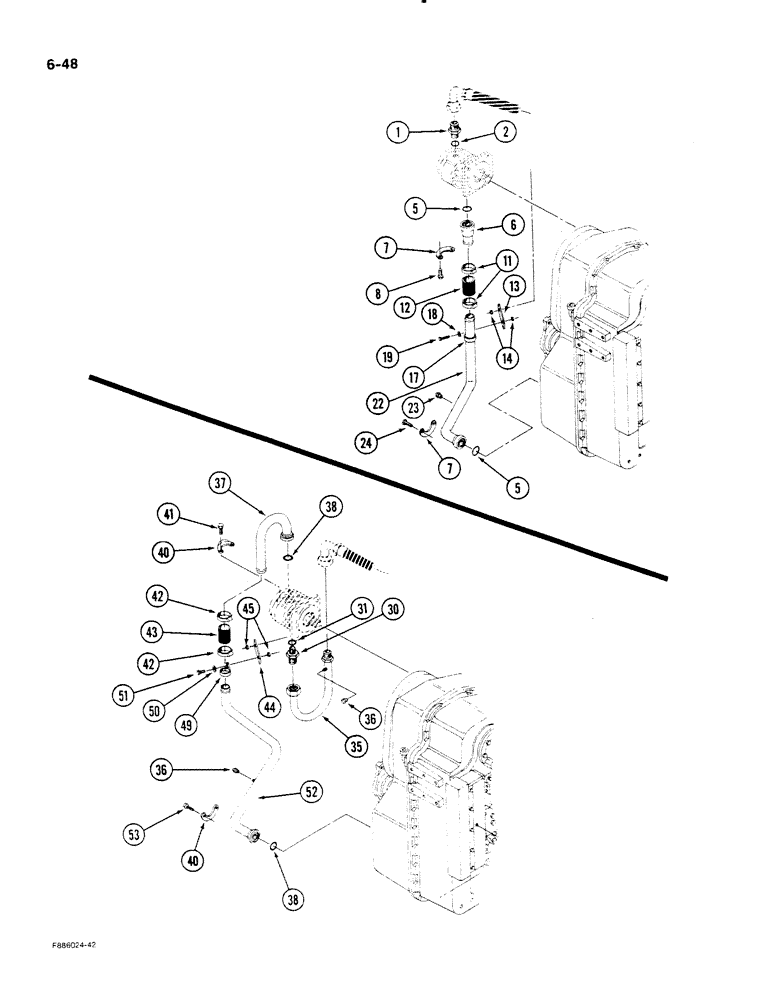

Запчасти Case IH STEIGER (6-48) - TRANSMISSION LUBRICATION, TRANSMISSION TO PUMP, WITHOUT PTO SYSTEM (06) - POWER TRAIN

1

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, 1-5/16 x 1-5/8 inch thread, Includes Ref: 2

1шт.

2

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 x 1/8 inch

1шт.

5

31-1925

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/2 x 9/64 inch

2шт.

6

31-2640

ADAPTER

- split, Serial Range: flange-hose

1шт.

7

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves

4шт.

8

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

11

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 x 2-5/8 inch

2шт.

12

1-4571

HOSE

- suction, 1-1/2 x 4 inch

1шт.

13

90-6588T1

SUPPORT

BRACKET - support, suction tube to dipstick tube

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

31-1349

MOUNTING CLIP

CLAMP - tube support

1шт.

18

113-307

X

WASHER - flat, 3/8 x 1 x 5/64 inch

1шт.

19

113-36

BOLT - hex, 3/8 NC x 3/4 inch

1шт.

22

90-6609T2

TUBE,1.5" OD

- suction, transmission to pump

1шт.

23

218-752

CAP,37 Degree, 7/16"-20

NUT - cap, 7/16 inch thread

1шт.

24

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- hex, 3/8 NC x 1-1/2 inch

4шт.

30

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, 1-5/16 x 1-5/8 inch thread, if equipped with PTO system, Includes Ref: 31

1шт.

31

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 x 1/8 inch, if equipped with PTO system

1шт.

35

90-6580T2

TUBE,1.25" OD

- pressure, pump to hose to cooler, if equipped with PTO system

1шт.

36

218-752

CAP,37 Degree, 7/16"-20

NUT - cap, 7/16 inch thread, if equipped with PTO system

2шт.

37

90-6464T2

TUBE,1.5" OD

- suction, pump to hose, if equipped with PTO system

1шт.

38

31-1925

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/2 x 9/64 inch, if equipped with PTO system

2шт.

40

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves, if equipped with PTO system

4шт.

41

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

If equipped with PTO system Hex, 7/16"-14 x 1 1/4", G5

4шт.

42

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 x 2-5/8 inch, if equipped with PTO system

2шт.

43

1-4571

HOSE

- suction, 1-1/2 x 4 inch, if equipped with PTO system

1шт.

44

90-6588T1

SUPPORT

BRACKET - support, suction tube to dipstick tube, if equipped with PTO system

1шт.

45

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If equipped with PTO system 3/8"-16, G5

1шт.

49

31-1349

MOUNTING CLIP

CLAMP - tube, support, if equipped with PTO system

1шт.

50

113-307

X

WASHER - flat, 3/8 x 1 x 5/64 inch, if equipped with PTO system

1шт.

51

113-36

BOLT - hex, 3/8 NC x 3/4 inch, if equipped with PTO system

1шт.

52

90-6465T2

TUBE,1.5" OD

- suction, transmission to pump, if equipped with PTO system

1шт.

53

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- hex, 3/8 NC x 1-1/2 inch, if equipped with PTO system

4шт.
