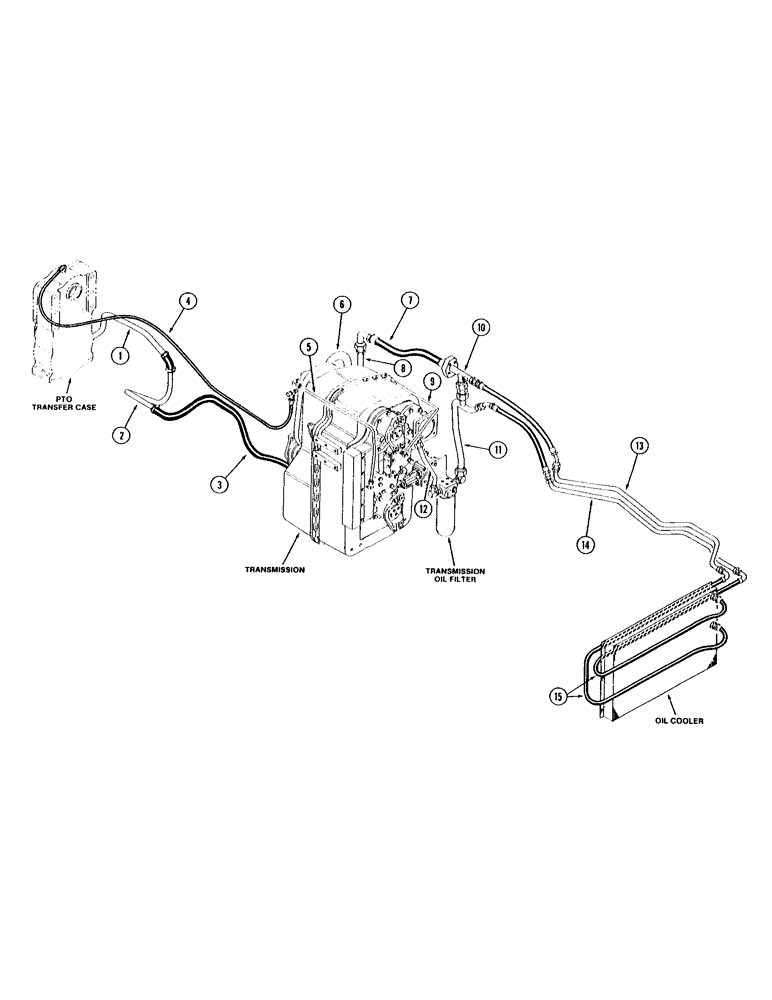

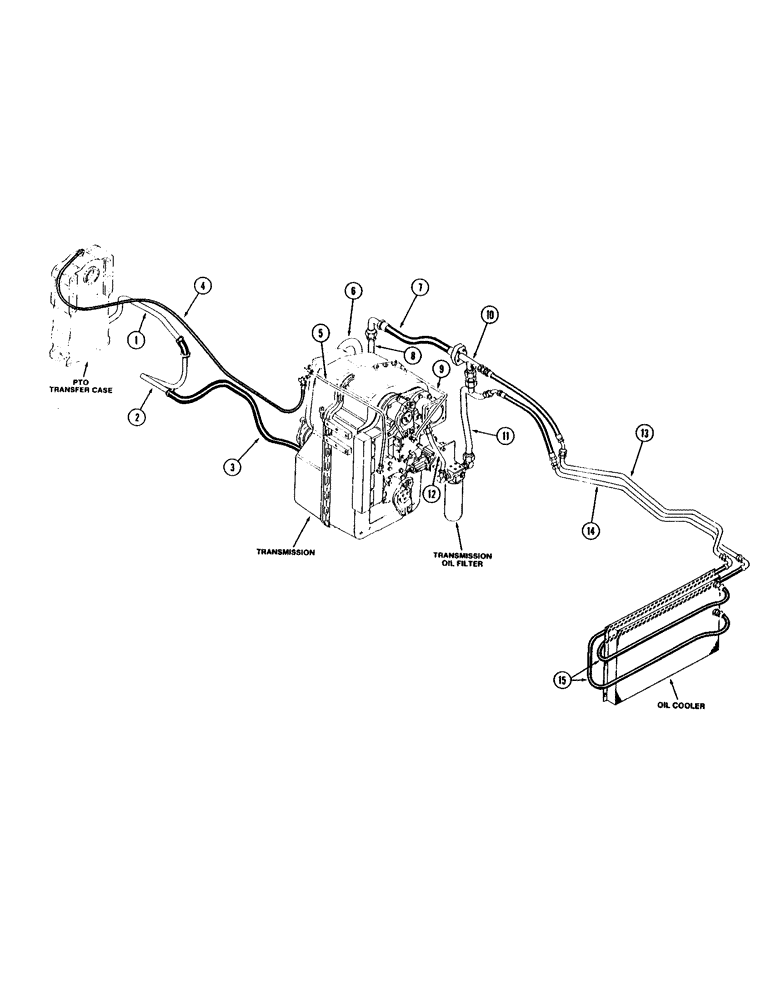

Запчасти Case IH STEIGER (1-12) - PICTORIAL INDEX, LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX

1

PTO Transfer Case Return Tube, Page 6-51

1шт.

2

PTO Transfer Case Return Tube, Page 6-51

1шт.

3

PTO Transfer Case to Transmission Return Hose, Page 6-51

1шт.

4

PTO Transfer Case Lubrication Hose, Page 6-51

1шт.

5

Transmission Lubrication Tube, Page 6-51

1шт.

6

Transmission Pump Suction Tube, Page 6-49

1шт.

7

Transmission Pump Pressure Hose, Page 6-47

1шт.

8

Hydraulic Pump Pressure Hose, Page 6-49

1шт.

9

Transmission Lubrication Tube, Page 6-51

1шт.

10

Pump to Cooler Tube Assembly, Page 6-47

1шт.

11

Cooler to Filte rTube, Page 6-47

1шт.

12

Transmission to Filter Tube, Page 6-47

1шт.

13

Oil Cooler Return Tube, Page 6-47

1шт.

14

Oil Cooler Inlet Tube, Page 6-47

1шт.

15

Oil Cooler Hoses, Page 6-47

1шт.
