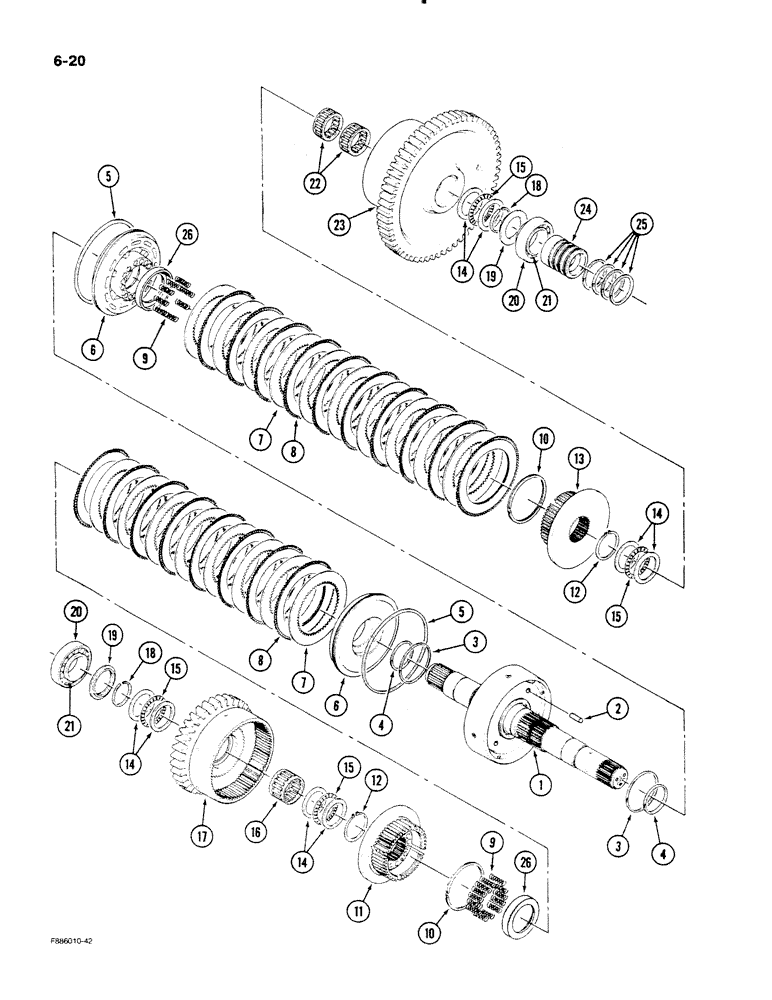

Запчасти Case IH STEIGER (6-20) - TRANSMISSION, 8 INCH CLUTCH PACK (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-6563T91
TRANSMISSION
ASSEMBLY (Continued from previous page), Includes Ref: 1-26
1шт.
313686A1R
REMAN-TRANSMISSION
See Note: Extra Parts Needed When Replacing PN 90-6563T91 With This Reman
1шт.
313686A1C
CORE-TRANSMISSION
Return Number
1шт.
S4000S02F
CLUTCH HOUSING
CLUTCH PACK ASSEMBLY - 8 inch, Includes Ref: 1-26
1шт.
1
S4900S02F
SHAFT ASSY.
SHAFT ASSEMBLY - drum
1шт.
2
S4680S02F
SPECIAL NUT
PIN - guide, 11 mm diameter
4шт.
3
S4420S00F
RING
- piston
2шт.
Part of Transmission Gasket Kit P/N S1670S00F.
1шт.
4
S4410S00F
RING
- piston
2шт.
Part of Transmission Gasket Kit P/N S1670S00F.
1шт.
5
S4430S00F
RING
- sealing
2шт.
Part of Transmission Gasket Kit P/N S1670S00F.
1шт.
6
S4180S02F
PISTON
- clutch
2шт.
Steel plates, Ref.7; a total set of 18 pieces must be used.
1шт.
7
*S4110S00F
PLATE - steel, flat, 2.1 mm thick
1шт.
Steel plates, Ref.7; a total set of 18 pieces must be used.
1шт.
8
S4080S00F
LARGE PLATE
PLATE - faced
18шт.
9
S4440S00F
SPRING
- return, piston
22шт.
10
S4390S00F
RING, SNAP
RING - retaining
2шт.
11
S4100S01G
HUB
- clutch
1шт.
12
S2100S00F
RING, SNAP
RING - snap
2шт.
13
S4380S01G
HUB
- clutch
1шт.
14
S2200S00F
BEARING WASHER
WASHER - thrust
8шт.
15
S2230S00F
BEARING
- thrust
4шт.
16
S2210S00F
BEARING, ROLLER
BEARING - needle
1шт.
17
S4210S00F
PINION
GEAR - output (38 Teeth)
1шт.
18
S2240S00F
RING, SNAP
RING - retaining
2шт.
19
S4040S00F
SPACER
- bearing
2шт.
20
ST967
BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"
CUP - bearing
2шт.
21
ST2016A
BEARING
CONE ASSEMBLY - bearing
2шт.
22
S2030S00F
BEARING, ROLLER
BEARING - needle
2шт.
23
S4170S00F
PINION
GEAR - output (59 Teeth)
1шт.
24
S4160S00F
SLEEVE
CARRIER - piston ring
1шт.
Part of Transmission Gasket Kit P/N S1670S00F.
1шт.
26
S4530S01F
LARGE PLATE
PLATE - retaining, spring
2шт.
S1670S00F
GASKET
KIT Transmission, Includes: Refs. 3, 4, 5 and 25
1шт.
Выбрано товаров: 38
