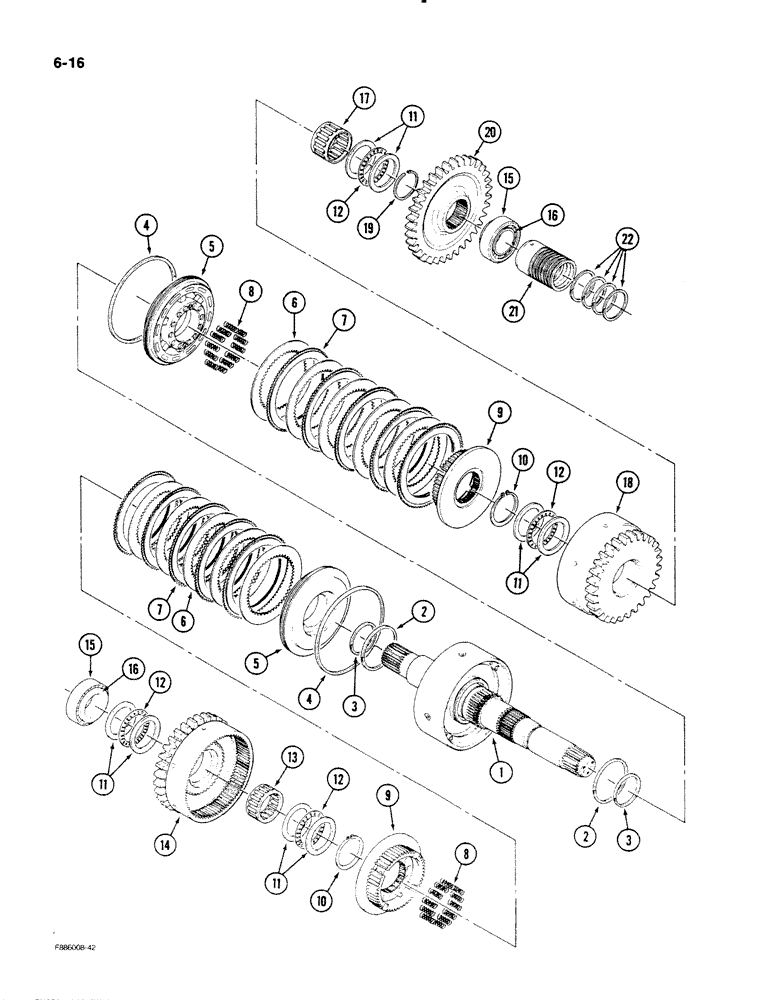

Запчасти Case IH STEIGER (6-16) - TRANSMISSION, 7 INCH CLUTCH PACK, INPUT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-6563T91
TRANSMISSION
ASSEMBLY (Continued from previous page), Includes Ref: 1-22
1шт.
313686A1R
REMAN-TRANSMISSION
See Note: Extra Parts Needed When Replacing PN 90-6563T91 With This Reman
1шт.
313686A1C
CORE-TRANSMISSION
Return Number
1шт.
S2000S00A
CLUTCH HOUSING
CLUTCH PACK ASSEMBLY - 7 inch input, Includes Ref: 1-22
1шт.
1
S2900S00F
SHAFT ASSY.
SHAFT ASSEMBLY - drum
1шт.
2
S2620S00F
RING
piston
2шт.
Part of Transmission Gasket Kit S1670S00F.
1шт.
3
S2610S00F
RING
piston
2шт.
Part of Transmission Gasket Kit S1670S00F.
1шт.
4
S2630S00F
RING
sealing
2шт.
Part of Transmission Gasket Kit S1670S00F.
1шт.
5
S2180S00F
PISTON
- clutch
2шт.
Steel plates, Ref.6; a total of 10 pieces must be used.
1шт.
6
S2090S00F
CLUTCH DISC,2.1mm Thk
PLATE steel, flat, 2.1 mm thick
1шт.
Steel plates, Ref.6; a total of 10 pieces must be used.
1шт.
7
S2050S00F
LARGE PLATE
PLATE - faced
10шт.
8
S2640S00F
SPRING
- return, piston
24шт.
9
S2850S00F
HUB
- clutch
2шт.
10
S2100S00F
RING, SNAP
RING - snap
2шт.
11
S2200S00F
BEARING WASHER
WASHER - thrust, bearing
8шт.
12
S2230S00F
BEARING
- thrust
4шт.
13
S2030S00F
BEARING, ROLLER
BEARING - roller
1шт.
14
S2040S00F
PINION
GEAR - drive (32 Teeth)
1шт.
15
1-3296
BEARING CUP,3.7402" OD x 0.9252"
CUP - bearing
2шт.
16
1-3297
ROLLER BEARING,2.1654" ID x 1.1417"
CONE ASSEMBLY - bearing
2шт.
17
S2210S00F
BEARING, ROLLER
BEARING - roller
1шт.
18
S2280S00F
PINION
GEAR - drive (29 Teeth)
1шт.
19
S2240S00F
RING, SNAP
RING - retaining
1шт.
20
S2270S00F
PINION
GEAR - input (35 Teeth)
1шт.
21
S2410S00F
CARRIER FLANGE SEAL
CARRIER - piston ring
1шт.
22
S2250S00F
SEALING RING
RING sealing
4шт.
Part of Transmission Gasket Kit P/N S1670S00F.
1шт.
S1670S00F
GASKET
KIT Transmission, Includes: Refs. 2, 3, 4 and 22
1шт.
Выбрано товаров: 34
