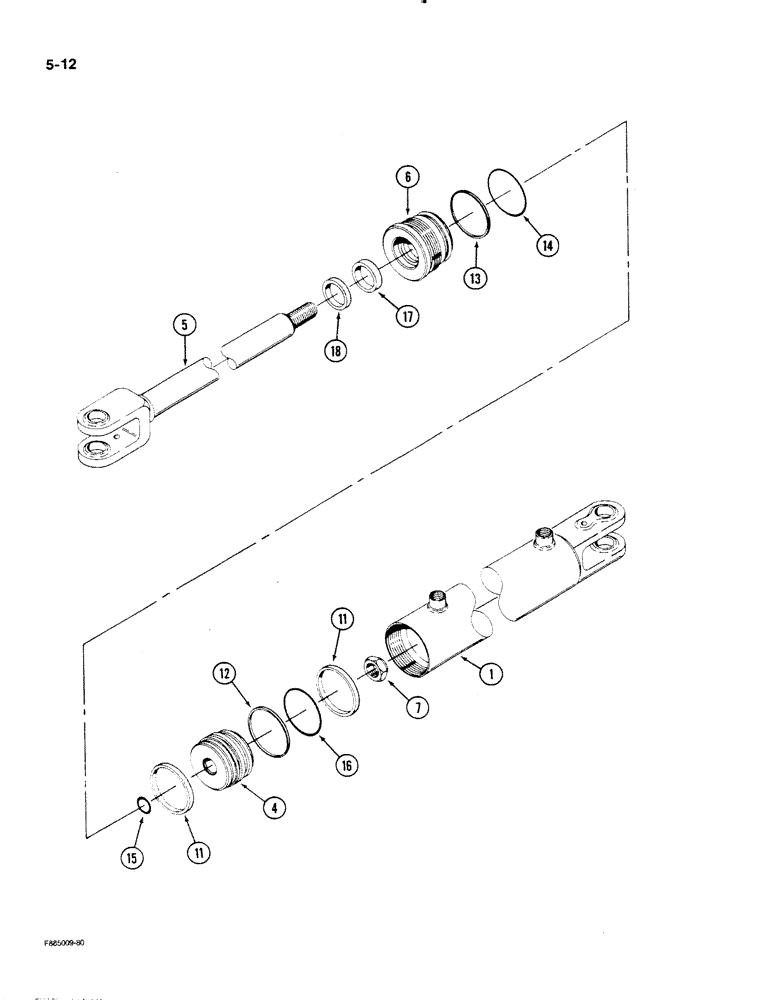

Запчасти Case IH STEIGER (5-12) - STEERING CYLINDER (05) - STEERING

50-1175T91

CYLINDER

ASSEMBLY - steering, Includes Ref: 1-18

1шт.

1

50-1177T1

TUBE

BARREL - cylinder body

1шт.

4

1-7031

PISTON

- cylinder

1шт.

5

50-1180T3

ROD

- cylinder

1шт.

6

1-7772

CYLINDER END CAP

GUIDE - rod

1шт.

7

19-5578

LOCK NUT

- hex, lock

1шт.

35-1136T91

SEAL KIT

KIT - seal, cylinder, Includes Ref: 11-18

1шт.

11

18-1499

RING

- wear, piston

2шт.

12

1-3905

SEAL

- piston

1шт.

13

2-3764T1

BACK-UP RING

- backup, seal

1шт.

14

18-1496

GASKET

O-RING - seal, rod guide

1шт.

15

18-1164

O-RING,1" ID x 40544" OD x 1"

O-RING - seal, piston

1шт.

16

1-3908

GASKET

O-RING - seal, piston

1шт.

17

1-7796

SEAL

- rod

1шт.

18

1-7768

WIPER SEAL

WIPER - dirt, rod

1шт.
