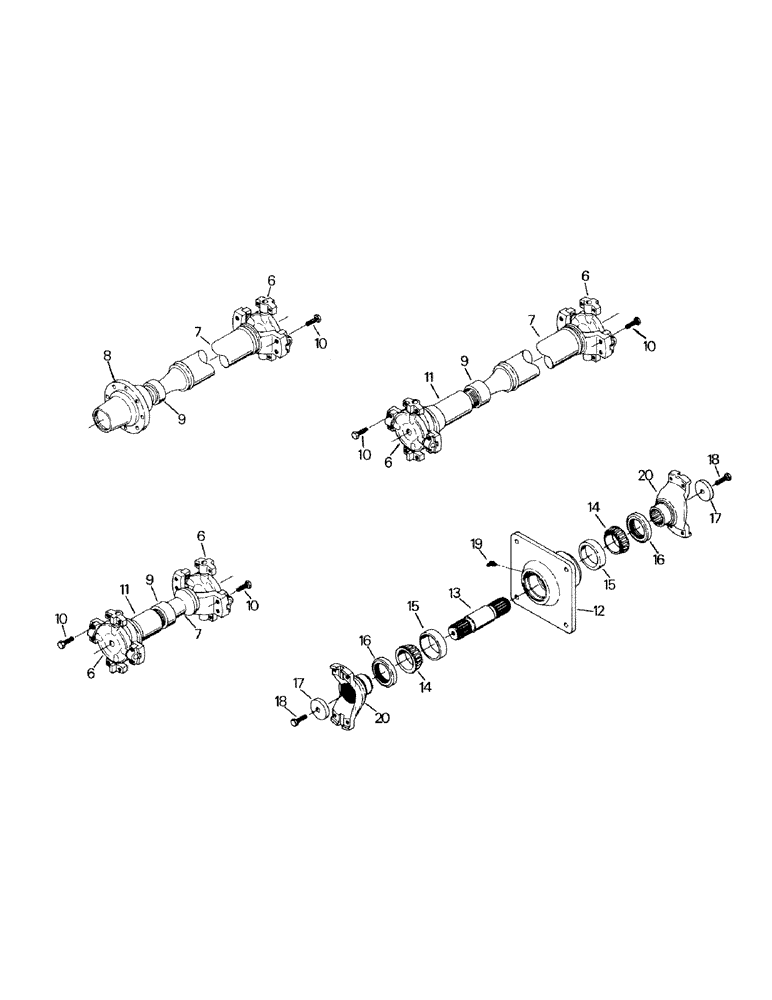

Запчасти Case IH STEIGER (04-35) - DRIVESHAFTS (04) - Drive Train

1

90-6663T91

DRIVE SHAFT

Driveshaft Assy (Input) (incl Refs. 6-10)

1шт.

2

90-6664T91

DRIVE SHAFT

Driveshaft Assy (Lower Front) (incl Refs. 6, 7, 9, 10 & 11)

1шт.

3

90-1902T92

DRIVE SHAFT

Driveshaft Assy (Center) (incl Refs. 6, 7, 9, 10 & 11)

1шт.

4

90-1903T92

DRIVE SHAFT

Driveshaft Assy (Lower Rear) (incl Refs. 6, 7, 9, 10 & 11)

1шт.

5

90-1863T91

BEARING ASSY

Hanger Bearing Assy (incl Refs. 12-20)

1шт.

6

1-9994T2

BEARING ASSY

Spider & Bearing Kit (incl Ref. 10)

7шт.

7

NSS

NOT SOLD SEPARAT

Tube Assy

4шт.

8

NSS

NOT SOLD SEPARAT

Sleeve Assy

1шт.

9

2-3842T1

SEAL RETAINER

Retaining Seal Assy

4шт.

10

19-477

BOLT,Hex, 1/2" - 20 x 2", Gr 8

Capscrew, 1/2 UNF x 2 G-8

28шт.

11

NSS

NOT SOLD SEPARAT

Slip Yoke

3шт.

12

90-1929T1

HOUSING

1шт.

13

90-1930T1

SHAFT

1шт.

14

90-1862T1

ROLLER BEARING,2.625" ID x 1.183"

2шт.

15

90-1322T1

BEARING, CUP,4.4375" OD x 1.1875"

Bearing Cup

2шт.

16

90-1934T2

SEAL

2шт.

17

19-5733

WASHER

(Special)

2шт.

18

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

Capscrew, 5/8 UNC x 1-1/2 G-8

2шт.

19

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 45º, 1/8" NPT x 7/8" lg

1шт.

20

90-1489T1

YOKE

2шт.
