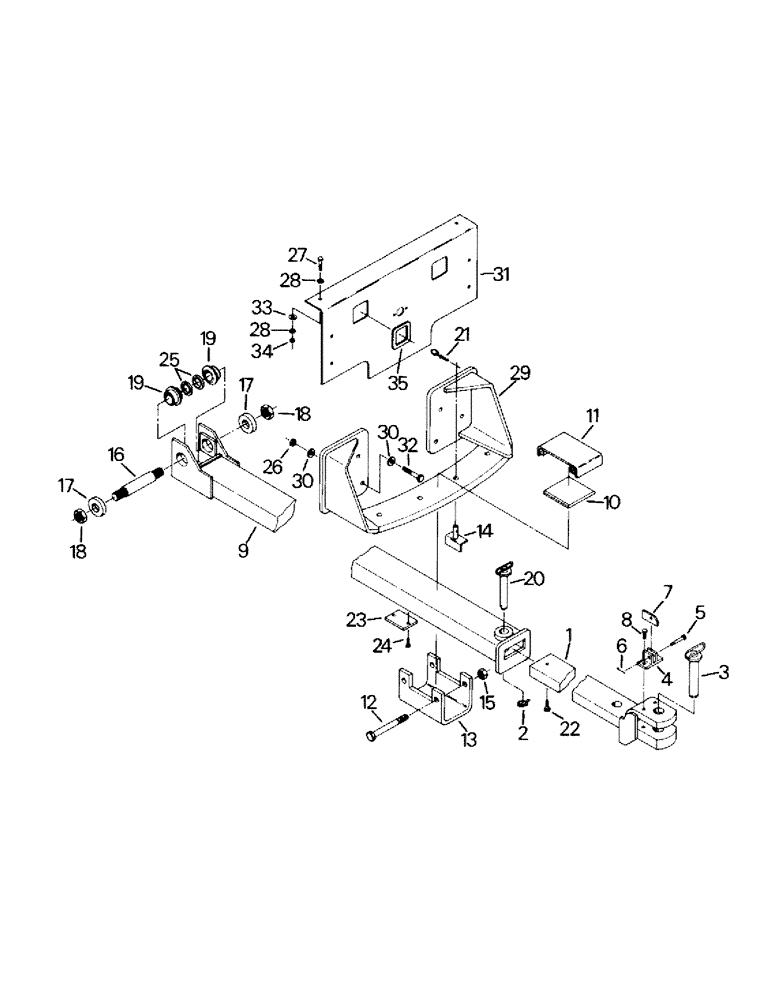

Запчасти Case IH STEIGER (06-07) - DRAWBAR & MOUNTING (12) - FRAME

1

70-1727T1

DRAWBAR

1шт.

2

19-1041

LOCK PIN,7/16" x 2"

Klick Pin

1шт.

3

70-1735T1

PIN

1шт.

4

70-1737T1

LATCH

1шт.

5

42-102

CLEVIS PIN,1/2" x 2.060"

1/2 x 2

1шт.

6

19-168

COTTER PIN,1/8" x 1"

1/8 x 1

1шт.

7

1-4906

LATCH

1шт.

8

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

Capscrew, 1/2 UNC x 1-1/2 G-8

2шт.

9

70-1718T1

TUBE,91.75" Length

Drawbar Tube

1шт.

10

70-4513T1

SLIDE

Plactic Slider

1шт.

11

70-4555T1

COVER

1шт.

12

19-1212

BOLT,Hex, 1" - 8 x 9", Gr 5

Capscrew, 1 INC x 9 G-8

2шт.

13

70-4516T1

CLEVIS

Drawbar Yoke

1шт.

14

70-1937T2

SHAFT LOCK

Stop Pin

2шт.

15

19-375

LOCK NUT,1" - 8, GB

1 UNC G-B

2шт.

16

70-1206T1

PIN,57.07mm OD x 296.67mm L

King Pin

1шт.

17

19-5636

WASHER,39.62mm ID x 88.9mm OD x 9.53mm Thk

Hardened Washer, 1-1/2 x 3-1/2 x 3/8 Thk

2шт.

18

19-5641

LOCK NUT,1 1/2"-6, GB

1-1/2 UNC G-B

2шт.

19

70-2733T1

BUSHING,57.35mm ID x 85.85mm OD x 47.75mm L

2шт.

20

70-1731T1

PIN

1шт.

21

19-6088

PIN

Hitch Pin

2шт.

22

223431

BOLT,Hex, 5/8" - 11 x 1", Gr 8

Capscrew, 5/8 UNC x 1 G-8

1шт.

23

70-2508T1

CAP

1шт.

24

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Capscrew, 3/8 UNC x 3/4 G-5

2шт.

25

70-2542T1

SPACER

2шт.

26

429-1016

NUT,1"-8, G8

1 UNC G-C

8шт.

27

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

Capscrew, 1/2 UNC x 2-1/4 G-5

2шт.

28

19-109

WASHER,1/2"

1/2

4шт.

29

70-1739T1

HANGER

1шт.

30

19-5739

WASHER

Hardened Washer, 1 x 2 x .15 Thk

16шт.

31

70-3029T1

LARGE PLATE

Plate

1шт.

32

19-5404

BOLT,Hex, 1" - 8 x 5.50", Gr 8

Capscrew, 1 UNC x 5-1/2 G-8

8шт.

33

19-961

WASHER,17/32" x 1 1/2" x 1/8"

1/2 x 1-3/4 x1/8 Thk

2шт.

34

19-81

NUT,1/2"-13, G5

1/2 UNC G-B

2шт.

35

2-7088T1

GASKET

Grommet

2шт.
