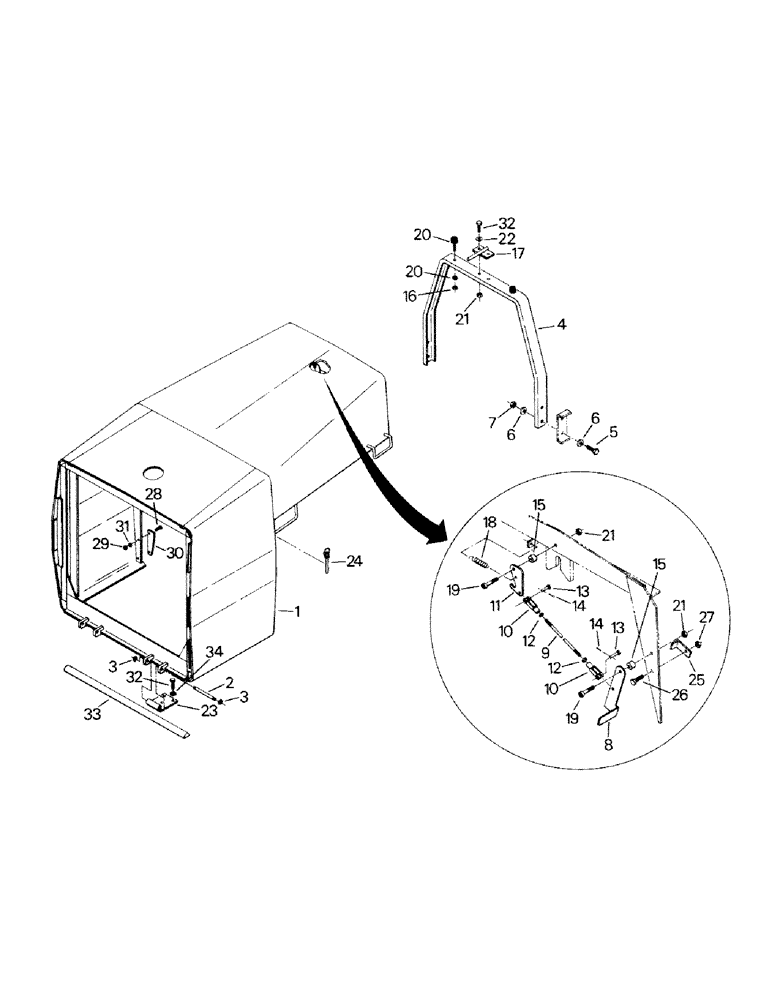

Запчасти Case IH STEIGER (06-04) - HOOD & MOUNTING (12) - FRAME

1

70-2790T1

HOOD

1шт.

2

70-2789T1

PIN

Hinge Pin

2шт.

3

19-5713

OIL SEAL

Snap Ring

4шт.

4

70-2810T1

SUPPORT

Rear Support

1шт.

5

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

Capscrew, 1/2 UNC x 1-1/4 G-5

4шт.

6

19-109

WASHER,1/2"

1/2

8шт.

7

19-82

LOCK NUT

Lock Nut, 1/2 UNC G-B

4шт.

8

70-2801T1

LATCH

Handle

1шт.

8

70-2804T1

ROD

1шт.

10

19-141

CLEVIS

2шт.

11

70-2805T1

LATCH

1шт.

12

19-936

JAM NUT

Jam Nut, 1/4 UNF G-B

2шт.

13

19-144

CLEVIS PIN,1/4" x 0.77"

1/4 x 3/4

2шт.

14

19-170

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

15

70-2806T1

SPACER

2шт.

16

19-236

JAM NUT,5/16" - 24, Gr 5

Jam Nut, 5/16 UNF G-B

2шт.

17

70-2807T1

PLATE

Striker

1шт.

18

11-8

SPRING

1шт.

19

19-6086

SCREW,Shldr, Hex Skt, 3/8" - 16 x 3/4"

Shoulder Bolt

2шт.

20

70-2816T1

BUMPER

2шт.

21

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC G-B

4шт.

22

19-107

WASHER

3/8

2шт.

23

70-2785T1

HINGE

2шт.

24

19-5774

PIN

1шт.

25

70-2919T1

STOP

1шт.

26

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Capscrew, 3/8 UNC x 3/4 G-5

1шт.

27

19-5828

NUT,Flg, 3/8"-16, G5

Flanged Nut, 3/8 UNC G-B

1шт.

28

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew, 5/16 UNC x 1 G-5

6шт.

29

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

6шт.

30

70-3019T1

LARGE PLATE

Plate

2шт.

31

19-700

WASHER,5/16"

5/16

6шт.

32

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew, 3/8 UNC x 1 G-5

8шт.

33

70-3028T1

SEAL

1шт.

34

19-1059

WASHER

Hardened Washer (Special)

6шт.
