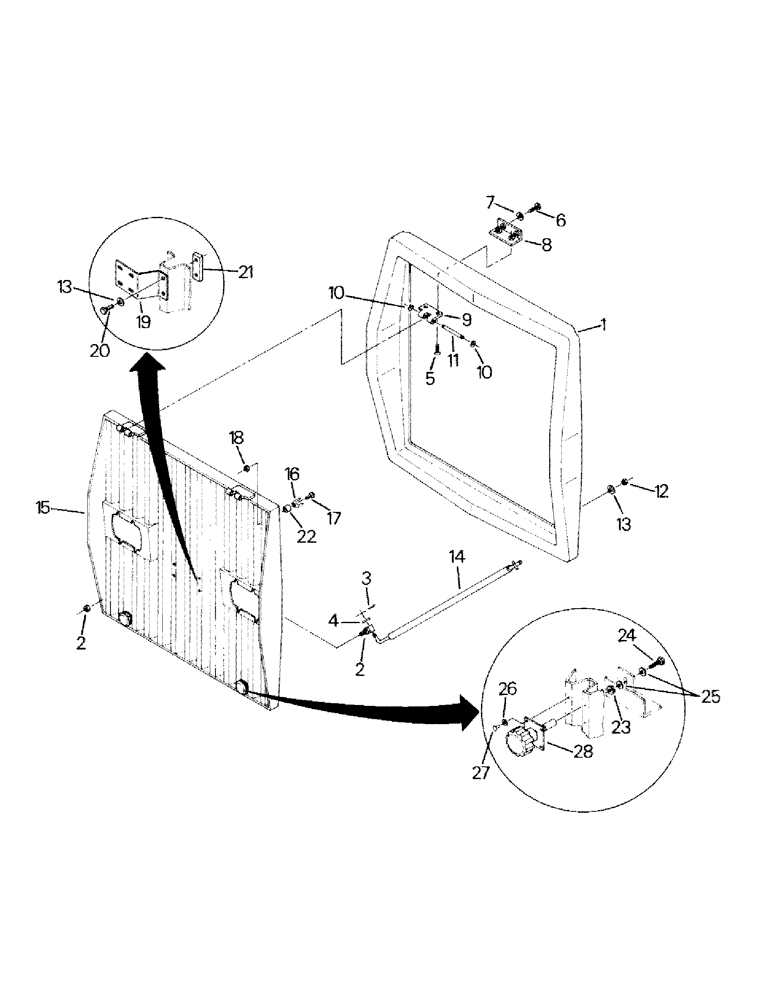

Запчасти Case IH STEIGER (06-03) - GRILLE & MOUNTING (12) - FRAME

1

70-1981T3

FUNNEL

Grille Frame

1шт.

2

70-1797T1

ROD

Grille Rod Pivot

1шт.

3

19-168

COTTER PIN,1/8" x 1"

1/8 x 1

1шт.

4

19-107

WASHER

3/8

1шт.

5

133904

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

Machine Screw, 3/8 UNC x 1

4шт.

6

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Capscrew, 3/8 UNC x 3/4 G-5

4шт.

7

19-224

WASHER,3/8", SAE

3/8

4шт.

8

70-2125T1

HINGE

Mount

2шт.

9

70-1982T1

HINGE

2шт.

10

70-2600T1

RING, SNAP

Snap Ring

4шт.

11

70-1996T2

PIN

Rod

2шт.

12

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

12шт.

13

19-6047

WASHER

1/4

16шт.

14

70-1997T2

ROD

Grille Rod

1шт.

15

70-4910T2

GRILLE

1шт.

16

19-5988

CLIP

1шт.

17

421169

GUARD

Machine Screw, #2 UNC x 3/4

1шт.

18

19-5789

NUT

#2 UNC G-A

1шт.

19

70-2978T1

SUPPORT

Medallion Bracket (Right)

1шт.

70-2977T1

SUPPORT

Medallion Bracket (Left)

1шт.

20

9419000

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

Capscrew, 1/4 UNC x 1/2 G-5

4шт.

21

70-2230T1

LARGE PLATE

Tapped Plate

2шт.

22

70-2679T1

SPACER

1шт.

23

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

2шт.

24

19-949

SCREW,Sl Rnd Hd, 5/16" - 18 x 1 1/2"

Capscrew, 5/16 UNC x 1-1/2

2шт.

25

19-700

WASHER,5/16"

5/16

2шт.

26

19-281

WASHER,#8

8шт.

27

19-157

RIVET

Pop Rivet, 1/8 x 3/8

8шт.

28

70-2914T1

LATCH

Assy

2шт.
