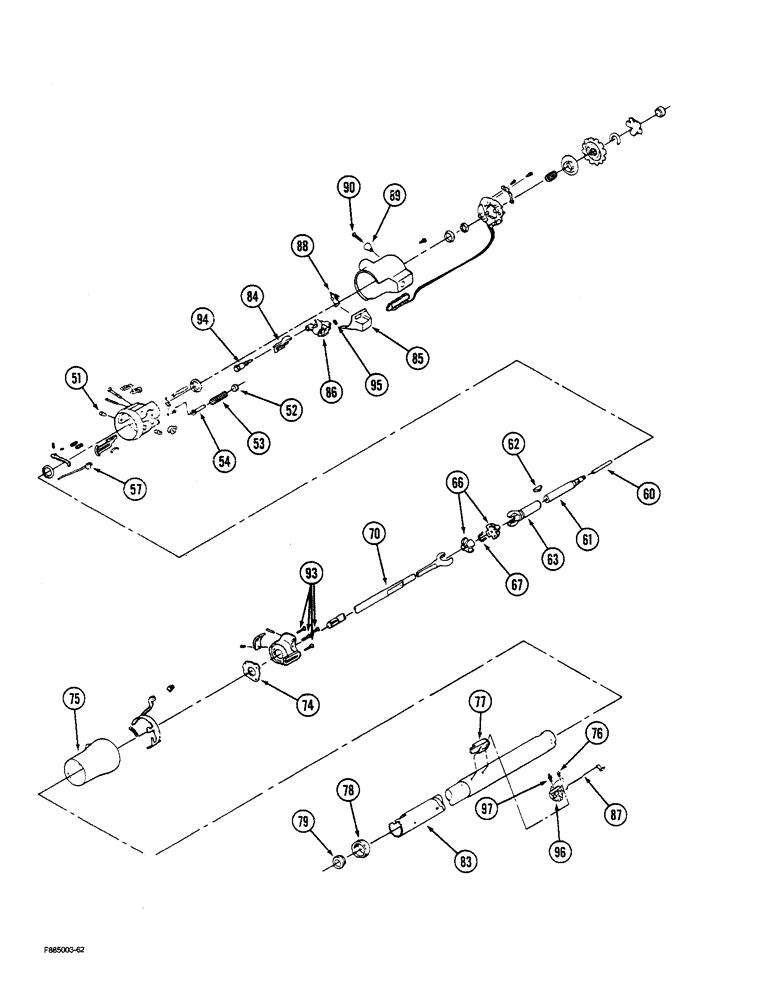

Запчасти Case IH STEIGER (5-06) - STEERING COLUMN ASSEMBLY (05) - STEERING

1-7630

STEERING COLUMN

COLUMN ASSEMBLY - steering, tilt and telescoping, Includes Ref: 51-97

1шт.

51

1-4509

PIVOT PIN

PIN, PIVOT

2шт.

52

1-1330

RETAINER

- spring

1шт.

53

1-4508

SPRING

- wheel tilt

1шт.

54

1-1323

GUIDE

-spring

1шт.

57

1-4465

ACTUATOR

ASSEMBLY - switch

1шт.

2-1463

SHAFT

ASSEMBLY - steering (Order components), Includes Ref: 60-70

1шт.

60

1-4488

STEM

ROD - locking, telescoping

1шт.

61

2-1467

SHAFT

- steering, upper

1шт.

62

1-1312

WEDGE

- locking

1шт.

63

1-4487

YOKE

ASSEMBLY - race and steering shaft

1шт.

33-1175T1

KIT

SPHERE KIT - centering, Includes Ref: 66, 67

1шт.

66

NSS

NOT SOLD SEPARAT

SPHERE - centering

2шт.

67

NSS

NOT SOLD SEPARAT

SPRING - joint preload

1шт.

70

1-4486

STEERING SHAFT

SHAFT ASSEMBLY - yoke and steering

1шт.

74

1-1326

LARGE PLATE

PLATE - lock

1шт.

75

1-4504

SHROUD

- housing, steering column

1шт.

76

1-1335

SCREW

- machine, flanged

1шт.

77

1-4496

IGNITION SWITCH

SWITCH ASSEMBLY - ignition

1шт.

78

1-4468

ADAPTER

- bearing, lower

1шт.

79

1-4467

BEARING ASSY

BEARING ASSEMBLY - lower

1шт.

83

2-1461

COLUMN JACKET

JACKET ASSEMBLY - housing

1шт.

84

1-4498

ACTUATOR

- rod, dimmer switch

1шт.

85

1-4469

COVER

- end cap, column housing

1шт.

86

2-1452

IGNITION SWITCH

SWITCH ASSEMBLY - pivot

1шт.

87

2-1462

THREADED ROD

ROD - dimmer switch

1шт.

88

1-4470

SHIELD

- opening, tilt lever

1шт.

89

1-4500

BUTTON

KNOB - hazard warning

1шт.

90

19-5456

SCREW,Oval Hd, M3.5

- machine, oval head

1шт.

93

1-1334

SCREW

- support mounting

4шт.

94

2-1455

PIVOT PIN

PIN - pivot, switch activating

1шт.

95

1-6927

SPRING

- pin preload

1шт.

96

1-7739

SWITCH

ASSEMBLY - dimmer

1шт.

97

2-1481

STUD

- dimmer switch mounting

1шт.
