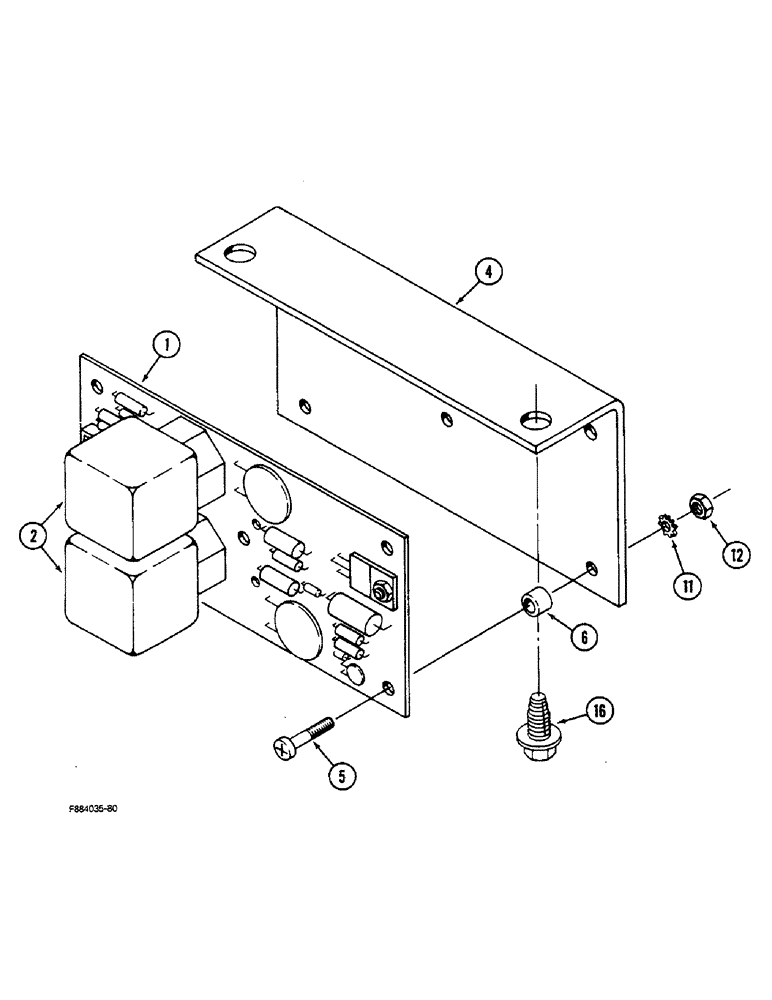

Запчасти Case IH STEIGER (4-62) - TIME BASE FLASHER ASSEMBLY (04) - ELECTRICAL SYSTEMS

20-1954T92

FLASHER UNIT

FLASHER ASSEMBLY - time base, Includes Ref: 1-11

1шт.

20-2123T3R

REMAN-PRINTED CIRCUI

Reman for New PN 20-1954T92

1шт.

20-2123T3C

CORE-PRINTED CIRCUIT

Return Number

1шт.

1

20-2123T2

BOARD, PRINTED CIRCU

CIRCUIT BOARD - time base flasher, Includes Ref: 2

1шт.

1

20-2123T3R

REMAN-PRINTED CIRCUI

Reman for New PN 20-2123T2

1шт.

1

20-2123T3C

CORE-PRINTED CIRCUIT

Return Number

1шт.

2

1-7877

RELAY

- electrical

2шт.

4

25-1000155

SUPPORT

BRACKET - mounting, circuit board

1шт.

5

159341

SCREW,Cross Pan Hd, #6 - 32 x 5/8"

- machine, pan head cross slot, No. 6 NC x 5/8 inch

5шт.

6

25-1000174

SPACER

- circuit board

5шт.

11

19-601

LOCK WASHER,Ext, #6

WASHER - lock, external tooth, No. 6

5шт.

12

19-1013

NUT

- hex, No. 6 NC

5шт.

16

172427

SHIELD

- tapping, flanged head, 1/4 NC x 1/2 inch

2шт.
