(4-38) - ALTERNATOR MOUNTING, 855 ENGINE

Запчасти Case IH STEIGER (4-38) - ALTERNATOR MOUNTING, 855 ENGINE (04) - ELECTRICAL SYSTEMS

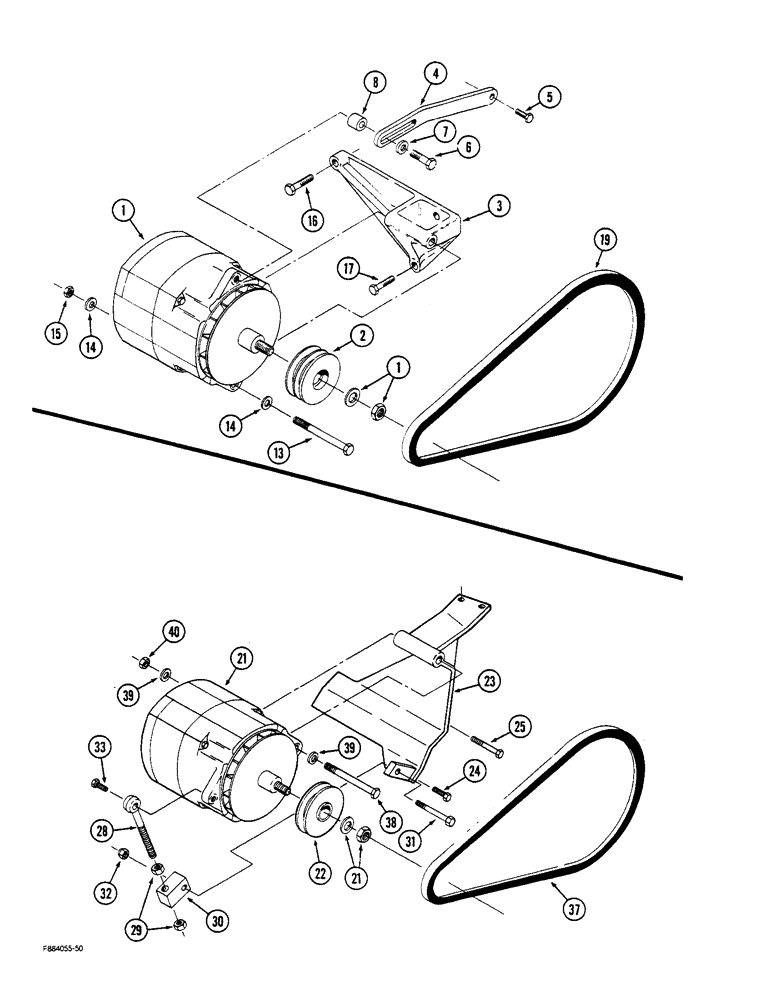

Схема запчастей Case IH STEIGER - (4-38) - ALTERNATOR MOUNTING, 855 ENGINE (04) - ELECTRICAL SYSTEMS
31
30
1
38
39
23
2
14
21
5
21
14
39
17
25
1
22
33
16
3
28
4
15
8
6
7
40
37
13
32
29
19
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure: 4-40)

1шт.

2

22-741

PULLEY

- alternator

1шт.

3

218505

CHANNEL

MOUNT - support, alternator

1шт.

4

3029085

HOSE

- adjusting, alternator

1шт.

5

S125

BOLT

BOLT - hex, 1/2 NC x 2 inch

1шт.

6

S116-C

CAP

BOLT - hex, 7/16 NF x 3-1/2 inch

1шт.

7

203760

CIRCLIP

- flat, 7/16 inch

1шт.

8

66945

TIRE TUBE

- adjusting link

1шт.

13

114-418

BOLT,Hex, 1/2" - 20 x 6", Gr 5

- hex, 1/2 NF x 6-1/2 inch

1шт.

14

203310

WASHER

- flat, 1/2 inch

2шт.

15

131-28

LOCK NUT,1/2"-20, GB

NUT - hex lock, 1/2 inch NF

1шт.

16

3012471

CAP

BOLT - hex, 3/8 NC x 1-1/8 inch

1шт.

17

3012472

CAP

BOLT - hex, 3/8 NC x 1-1/2 inch

1шт.

19

90-1375T1

SET OF BELTS,0.53" W x 45.92" L

V-Belt, Alternator (Set of 2) 0.53" W x 45.92" L

1шт.

21

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure: 4-40), mounting, 3406 engine

1шт.

22

2-1979

PULLEY

- alternator mounting, 3406 engine

1шт.

23

90-3823T1

MOUNTING PARTS

BRACKET - mounting, alternator, 3406 engine

1шт.

24

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, Grade 8, alternator mounting, 3406 engine

2шт.

25

9423067

CAPSCREW,3/8" - 16 x 4 3/4", Gr 8

BOLT - hex, 3/8 NC x 4-3/4 inch, Grade 8, alternator mounting, 3406 engine

1шт.

28

22-1086T1

ROD

- adjusting, belt tension, alternator mounting, 3406 engine

1шт.

29

19-1060

JAM NUT,1/2" - 20, Gr 8

- hex, 1/2 inch NF, alternator mounting, 3406 engine

2шт.

30

1-6899T1

BLOCK

BRACKET - adjusting rod, alternator mounting, 3406 engine

1шт.

31

19-680

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

- hex, 1/2 NC x 3-1/4 inch, Grade 8, alternator mounting, 3406 engine

1шт.

32

19-653

LOCK NUT

- hex lock, 1/2 inch NC, alternator mounting, 3406 engine

1шт.

33

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

- hex, 1/2 NC x 1-1/4 inch, Grade 8, alternator mounting, 3406 engine

1шт.

37

90-3807T1

V-BELT,0.69" W x 75.40" L

Alternator mounting, 3406 engine 0.69" W x 75.40" L

1шт.

38

19-1258

BOLT,Hex, 1/2" - 13 x 7", Gr 8

- hex, 1/2 NC x 7 inch, Grade 8, alternator mounting, 3406 engine

1шт.

39

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

- flat, hardened, 1/2 x 1 x 3/32 thick, alternator mounting, 3406 engine

2шт.

40

19-81

NUT,1/2"-13, G5

- hex lock, 1/2 inch NC, alternator mounting, 3406 engine

1шт.
