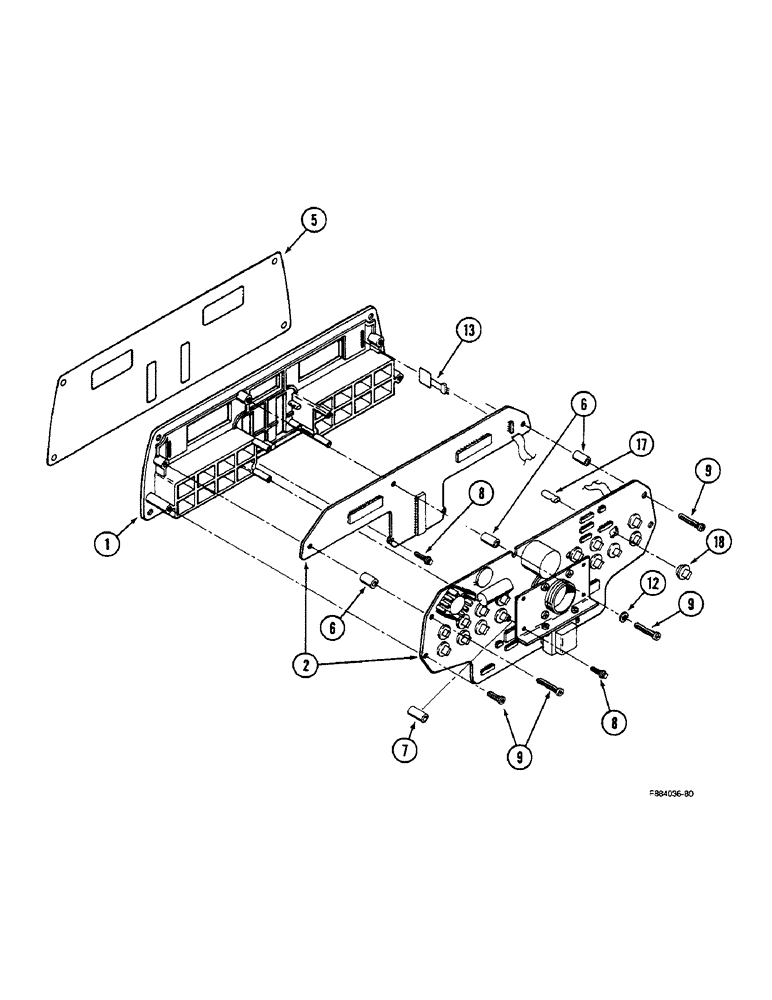

Запчасти Case IH STEIGER (4-26) - DASH INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

20-2507T1

CONTROL

MODULE ASSEMBLY - electronic (ROPS tractors), Includes Ref: 1-18

1шт.

20-2506T2

CONTROL

MODULE ASSEMBLY - electronic (Cab tractors), Includes Ref: 1-18

1шт.

1

NSS

NOT SOLD SEPARAT

DASH - plastic

1шт.

2

NSS

NOT SOLD SEPARAT

CIRCUIT BOARD - printed, dash

1шт.

5

60-6147T1

DECAL

- dash

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER - circuit board

3шт.

7

NSS

NOT SOLD SEPARAT

SPACER - circuit board

4шт.

8

NSS

NOT SOLD SEPARAT

SCREW - tapping, flanged head, No. 3 x 3/8 inch

6шт.

9

NSS

NOT SOLD SEPARAT

SCREW - tapping, pan head cross slot, No. 8 x 1-1/8 inch

5шт.

12

NSS

NOT SOLD SEPARAT

WASHER - flat, No. 8

1шт.

13

27-5047T1

KIT

SWITCH KIT - dash

2шт.

17

20-1179T1

LAMP

BULB - lamp, No. 194

16шт.

18

20-1178T1

HOLDER

SOCKET - bulb

16шт.
