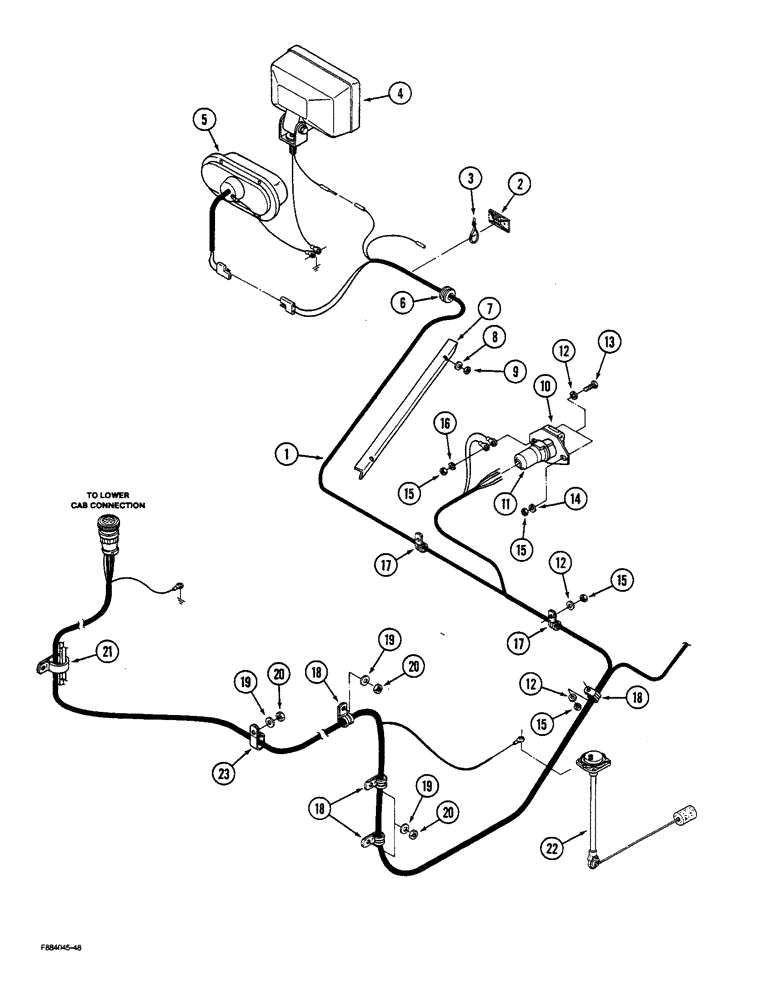

Запчасти Case IH STEIGER (4-24) - REAR FRAME HARNESS (04) - ELECTRICAL SYSTEMS

1

20-2450T2

HARNESS

ASSEMBLY - rear frame

1шт.

2

22-823

MOUNT

MOUNT - adhesive backed

2шт.

3

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

4

REF

INSTRUCTION

LAMP ASSEMBLY - field (See Figure: 4-42)

2шт.

5

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Figure: 4-42)

2шт.

6

31-2242

GROMMET

- protective

2шт.

7

51-366

PROTECTOR

GUARD - wire

2шт.

8

19-223

WASHER,1/4"

- flat, 1/4 x 3/4 x 1/16 inch

4шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

10

22-789

SOCKET

CONNECTOR - socket

1шт.

11

22-790

COVER

BOOT - rubber

1шт.

12

19-106

WASHER,5/16", SAE

- flat, 5/16 x 11/16 x 1/16 inch

2шт.

13

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

14

19-116

LOCK WASHER,5/16"

5/16"

1шт.

15

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

5шт.

16

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

17

31-1775

CLAMP

- harness, retaining

2шт.

18

31-1776

MOUNTING CLIP

CLAMP - harness, retaining

4шт.

19

19-224

WASHER,3/8", SAE

- flat, 3/8 x 13/16 x 1/16 inch

4шт.

20

425-104

NUT,1/4"-20, Cl 5

- hex, 3/8 inch NC

4шт.

21

31-1349

MOUNTING CLIP

CLAMP - harness, retaining

1шт.

22

REF

INSTRUCTION

SENSOR - fuel (See Figure: 3-12)

1шт.

23

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- harness, retaining

1шт.
