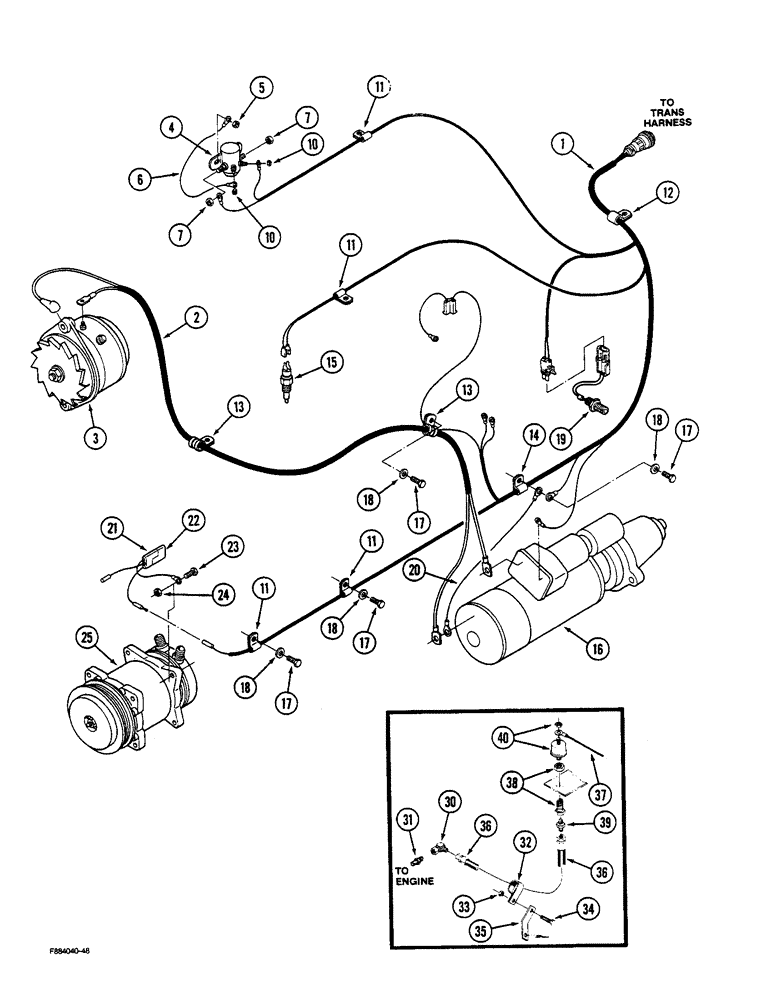

Запчасти Case IH STEIGER (4-16) - ENGINE HARNESS, 3406 ENGINE (04) - ELECTRICAL SYSTEMS

1

20-2430T1

HARNESS

ASSEMBLY - 3406 engine

1шт.

2

20-2365T1

HARNESS

ASSEMBLY - alternator

1шт.

3

REF

INSTRUCTION

ALTERNATOR - engine (See Figure: 4-40)

1шт.

4

20-1608T1

SOLENOID

SWITCH - starter, magnetic

1шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

6

20-1198T1

ELECTRICAL WIRE

WIRE ASSEMBLY -, Serial Range: switch-ground

1шт.

7

19-88

NUT,5/16"-24, G5

- hex, 5/16 inch NC

2шт.

10

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- keps, No. 8 NC

2шт.

11

31-1862

CLAMP

- harness, retaining

4шт.

12

31-2488

CLAMP

- harness, retaining

1шт.

13

31-1776

MOUNTING CLIP

CLAMP - harness, retaining

2шт.

14

155850H1

CLAMP,3/8", 1/4" Bolt

- harness, retaining

1шт.

15

20-1676T1

SWITCH

- temperature sender

1шт.

16

REF

INSTRUCTION

STARTER - engine (See Figure: 4-34, 4-36)

1шт.

17

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

4шт.

18

19-107

WASHER

- flat, 3/8 x 1 x 1/16 inch

4шт.

19

20-2357T1

SENSOR

- magnetic

1шт.

20

20-2164T1

HARNESS

WIRE ASSEMBLY -, Serial Range: starter-ground

1шт.

21

20-2415T1

HARNESS

- suppressor diode

1шт.

22

22-738

DIODE

- electrical

1шт.

23

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex, 3/8 NC x 1 inch

1шт.

24

425-104

NUT,1/4"-20, Cl 5

- hex, 3/8 inch NC

1шт.

25

REF

INSTRUCTION

COMPRESSOR - air conditioner (See Figure: 9-106)

1шт.

30

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- adjustable, 90 degree, 7/16 x 7/16 inch thread, oil pressure sender and mounting rops

1шт.

31

19-1101

HYD CONNECTOR,7/16" - 20, 37 Degree x 3/8" - 18, NPTF

CONNECTOR - straight, 3/8 NPT x 7/16 inch thread, oil pressure sender and mounting rops

1шт.

32

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- hose, oil pressure sender and mounting rops

1шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 3/8 inch NC, oil pressure sender and mounting rops

1шт.

34

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex, 3/8 NC x 1 inch, oil pressure sender and mounting rops

1шт.

35

90-5994T1

SUPPORT

BRACKET - mounting, clamp, oil pressure sender and rops

1шт.

36

31-2745

HOSE ASSY.

HOSE - engine to sender, oil pressure, mounting rops

1шт.

37

20-2511T1

HARNESS

WIRE - oil pressure sender, engine, mounting rops

1шт.

38

31-2615

ADAPTER

CONNECTOR - straight, bulkhead, 1/8 NPT x 1/8 inch NPT, oil pressure sender and mounting rops

1шт.

39

31-1028

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

CONNECTOR - straight, 1/8 NPT x 7/16 inch threadoil pressure sender and mounting rops

1шт.

40

1-2227T2

SENDER UNIT

SWITCH - oil pressure, engine, sender and mounting rops

1шт.
