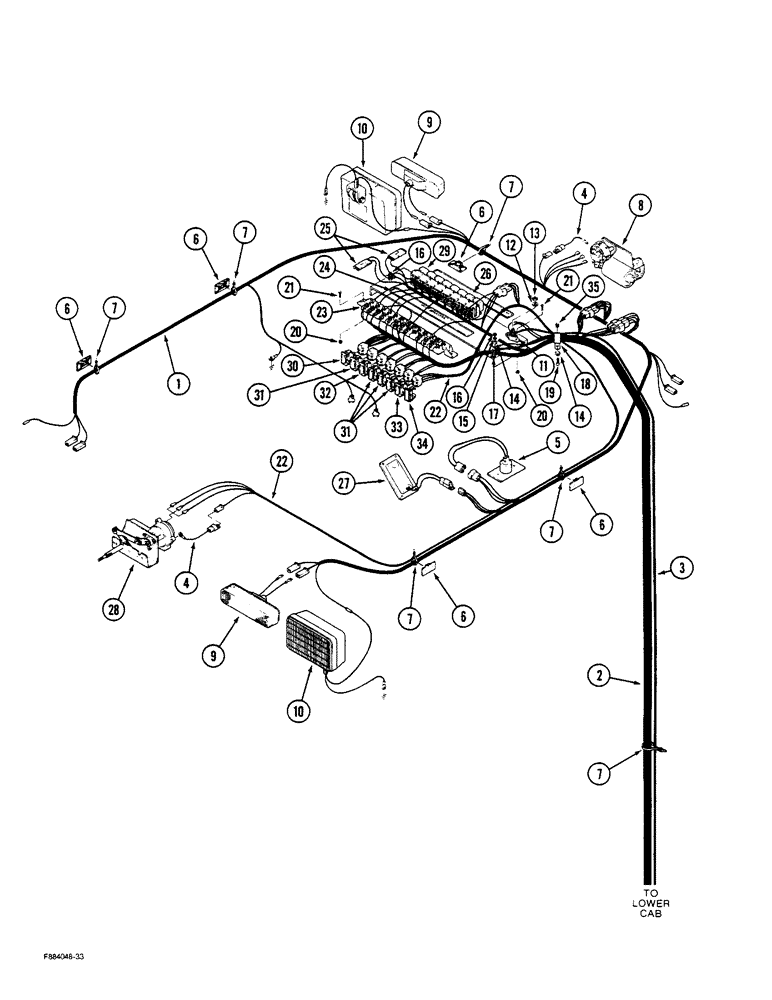

Запчасти Case IH STEIGER (4-06) - OVERHEAD CAB HARNESS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
20-1970T1
HARNESS
- overhead
1шт.
2
20-2449T1
HARNESS
- main cab (See Figure: 4-2)
1шт.
3
20-1974T1
HARNESS
- overhead power
1шт.
4
20-1452T1
ELECTRICAL WIRE
WIRE ASSEMBLY - motor ground
2шт.
5
REF
INSTRUCTION
LIGHT ASSEMBLY - console (See Figure: 9-82)
1шт.
6
22-823
MOUNT
MOUNT - adhesive backed
6шт.
7
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP - nylon
1шт.
8
REF
INSTRUCTION
DRIVE ASSEMBLY - wiper (See Figure: 4-54)
1шт.
9
REF
INSTRUCTION
LIGHT ASSEMBLY - warning (See Figure: 4-42)
4шт.
10
REF
INSTRUCTION
LIGHT ASSEMBLY - field (See Figure: 4-42)
4шт.
11
20-1451T1
BLOCK
JUNCTION BLOCK - electrical
1шт.
12
19-5577
LOCK WASHER
- lock, brass, 3/8 inch
1шт.
13
115772
NUT
- hex, brass, 3/8 inch NC
1шт.
14
19-223
WASHER,1/4"
- flat, 1/4 x 3/4 x 1/16 inch
3шт.
15
19-115
LOCK WASHER,1/4"
1/4"
2шт.
16
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
3шт.
17
31-1776
MOUNTING CLIP
CLAMP - harness
1шт.
18
31-1348
CLAMP
- harness
1шт.
19
19-2
BOLT,Hex, 1/4" - 20 x 1", Gr 5
- hex, 1/4 NC x 1 inch
1шт.
20
19-481
SERRATED NUT
- keps, No. 10 NF
4шт.
21
182-520
SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"
- machine, pan head, No. 10 NF x 1/2 inch
4шт.
22
20-2502T1
HARNESS
- rear wiper
1шт.
23
REF
INSTRUCTION
BREAKER ASSEMBLY - circuit (See Figure: 4-12)
1шт.
24
20-2246T1
DECAL
- circuit breaker
1шт.
26
60-4923T1
DECAL
- overhead relay
1шт.
27
REF
INSTRUCTION
LIGHT ASSEMBLY - console (See Figure: 9-86)
1шт.
28
REF
INSTRUCTION
DRIVE ASSEMBLY - rear wiper (See Figure: 4-56)
1шт.
29
1-7877
RELAY
- electrical
8шт.
30
1964752C1
SWITCH
- rocker, master light
1шт.
31
245012C1
SWITCH
ASSEMBLY - rocker, dome light, front outlet, rear outlet and dash lights (3 used without ROPS post gauges)
4шт.
32
1964751C1
SWITCH
- rocker, ether start
1шт.
33
1964755C1
SWITCH
- rocker, rear wiper
1шт.
34
60-3210T1
PLUG
- switch hole
1шт.
35
280129
NUT,1/4"-20
NUT - lock, 1/4 inch NC
1шт.
Выбрано товаров: 35
