Запчасти Case IH STEIGER (3-24) - THROTTLE AND DECELERATOR CONTROLS, CAB (03) - FUEL SYSTEM

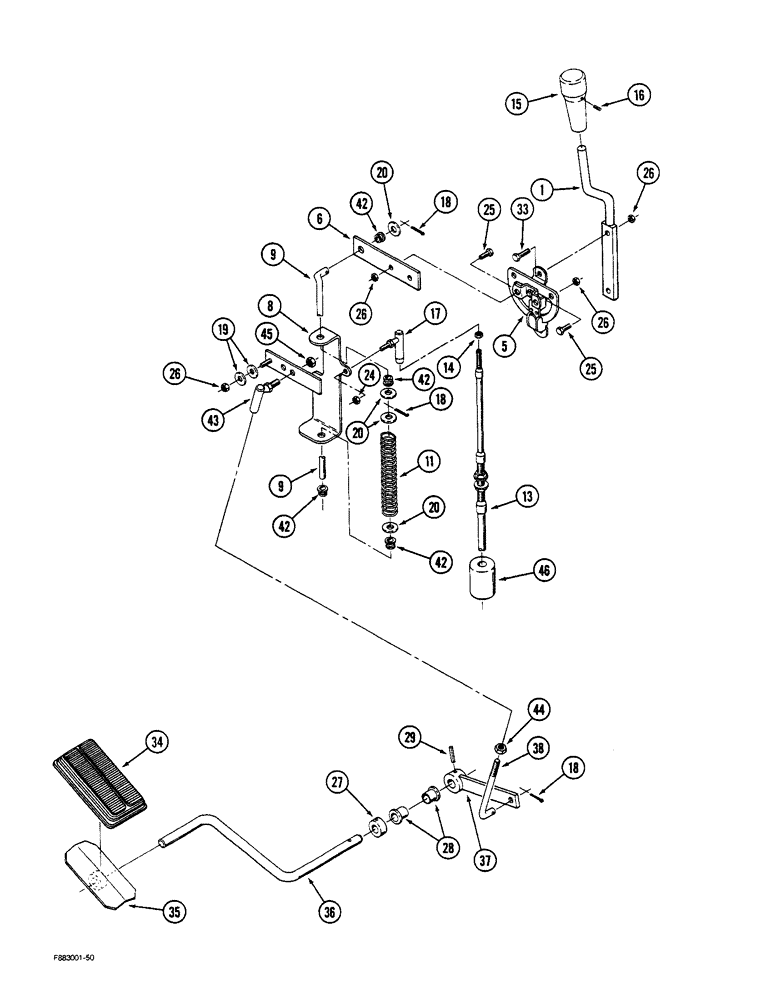

Схема запчастей Case IH STEIGER - (3-24) - THROTTLE AND DECELERATOR CONTROLS, CAB (03) - FUEL SYSTEM
25
6
26
13
11
35
43
5
38
19
26
42
33
37
15
9
18
42
14
27
46
20
16
26
25
20
42
17
1
34
36
8
26
18
45
9
28
29
18
44
24
20
42

Артикул

Название

Примечание

Количество

1

60-4686T2

CONTROL LEVER

LEVER - throttle control

1шт.

5

60-3783T1

ACTUATOR

QUADFASTAT - throttle control

1шт.

6

60-3696T1

LINING

LEVER - actuating, cable

1шт.

8

60-4935T1

BRACKET

- guide, rod

1шт.

9

60-4931T1

ROD

- actuating

1шт.

11

60-3702T1

SPRING

- compression

1шт.

13

60-5759T1

CABLE

- throttle, Includes Ref: 14

1шт.

14

19-308

NUT,#10 - 32

- hex, No. 10 NF

1шт.

15

60-2050T3

BALL KNOB

KNOB - control lever

1шт.

16

19-5798

SET SCREW

SCREW - set, No. 8 NC x 5/8 inch

1шт.

17

A75447

BALL JOINT

- cable, throttle

1шт.

18

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

3шт.

19

19-6188

WASHER

- flat, nylon, 5/16 x 1-3/16 x 1/8 inch

2шт.

20

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

4шт.

24

9411893

LOCK NUT,#10-32, GB

NUT - hex, lock, No. 10 NF

1шт.

25

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

- hex, 1/4 NC x 5/8 inch

1шт.

26

19-1081

LOCK NUT

- hex, lock, 1/4 inch NC

7шт.

27

19-490

COLLAR

- set, 1/2 inch

1шт.

28

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BEARING - pivot, flanged

2шт.

29

19-505

LOCK PIN,3/16" x 1", Slotted

Pin, 3/16" x 1", Slotted

1шт.

33

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch

2шт.

34

24-13

PROTECTION STRIP

PAD - pedal, decelerator

1шт.

35

60-3688T1

PEDAL

- decelerator

1шт.

36

60-4926T1

STEM

ROD - pedal, decelerator actuating

1шт.

37

60-4928T1

CONTROL LEVER

LEVER - actuating, decelerator

1шт.

38

60-4930T1

ROD

- actuating, decelerator

1шт.

42

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

BEARING - flanged

4шт.

43

113-2073

BALL JOINT - decelerator control

1шт.

44

19-236

JAM NUT,5/16" - 24, Gr 5

- hex, jam, 5/16 inch NF

1шт.

45

22-1129

JAM NUT

- hex, jam, lock, 5/16 inch NF

1шт.

46

60-3705T1

FOAM

- seal, floorboard

1шт.

Выбрано товаров: 31
